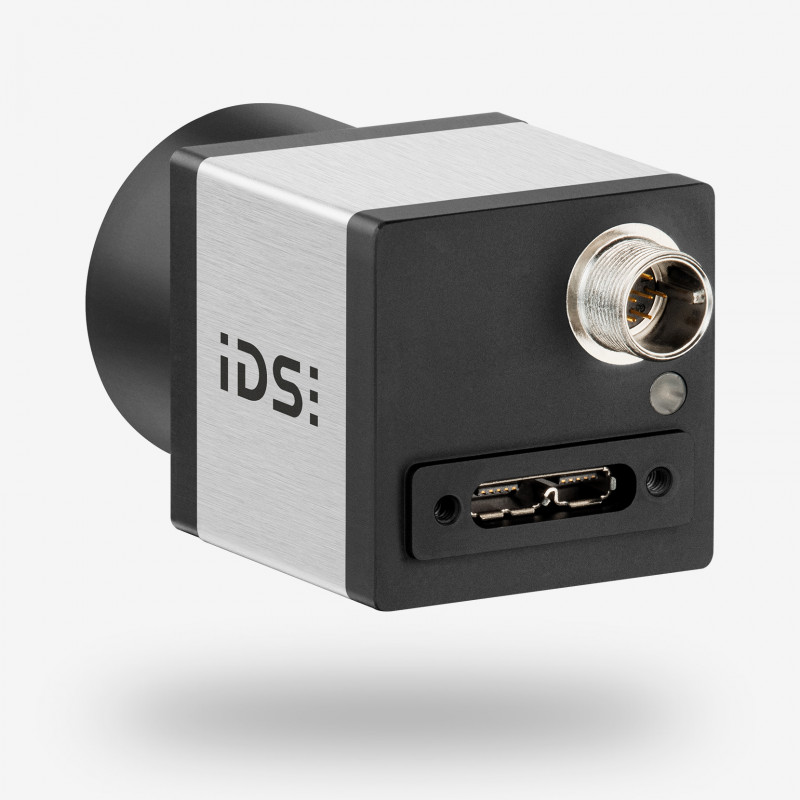

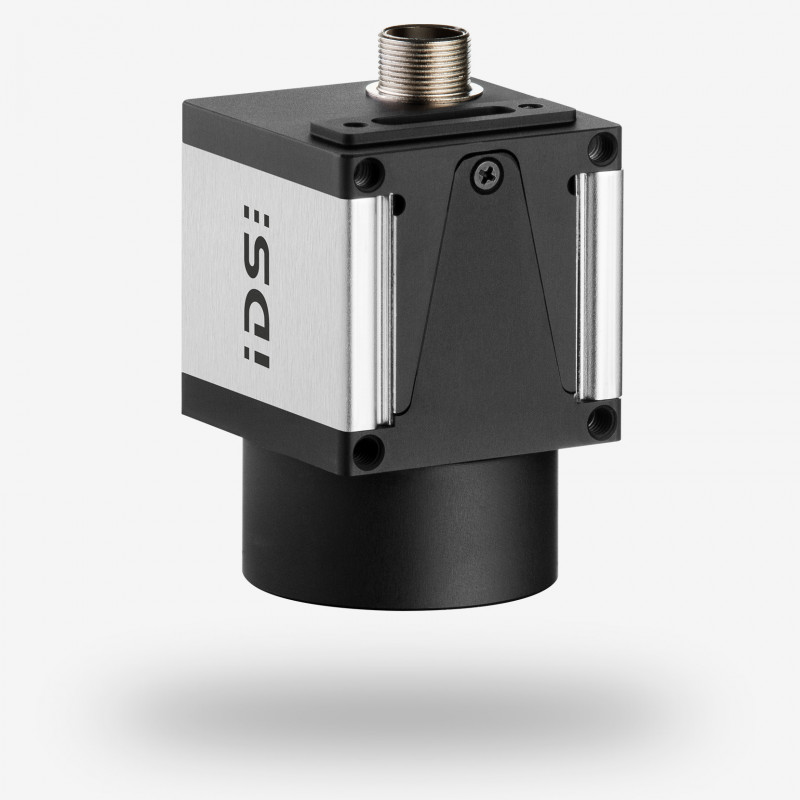

UI-3070CP Rev. 2
- Camera family
- CP
- Interface
- USB 3
- Sensor type
- CMOS
- Frame / Line rate
- 123 fps
- Shutter
- Global Shutter
- Optical class
- 1/1.8"
- Resolution
- 3.17 MPix
- Mono / Color
- Mono / Color
- Data sheet 1
- UI-3070CP-C-HQ_Rev_2_1.pdf
- Data sheet 2
- UI-3070CP-M-GL_Rev_2_1.pdf
- 소비자가
- 별도문의
uEye CP
USB 3, 5.0 Gbps 1/1.8", Sony, 3.17 MPix, CMOS, 123.0 fps, IMX252, 2056 x 1542
The USB 3 industrial camera UI-3070CP with 1/1.8" Sony IMX252 global shutter CMOS sensor provides a resolution of 3.2 MP (2056 x 1542 px). At full resolution, the USB 3 camera speeds up to 134 fps (Full HD with up to 187 fps). It allows 64x multi AOI and long exposure up to 30 seconds, for applications in the fields of mechanical engineering, machine vision, metrology, medical engineering, or microscopy.
The UI-3070CP industrial camera model aims at customers with high demands on image quality, dynamic range and sensitivity.?
| Item number |
|
|---|---|
| Name | UI-3070CP Rev. 2 |
| Camera family | CP |
| Interface | USB 3 |
| Interface-Speed | 5.00 Gbps |
| Sensor type | CMOS |
| Sensor manufacturer | Sony |
| Frame rate @ resolution max. | 123 fps |
| Resolution (h x v) | 2056 x 1542 |
| Optical Area | 7.093 mm x 5.320 mm |
| Shutter | Global Shutter |
| Optical class | 1/1.8" |
| Resolution | 3.17 MPix |
| Pixel size | 3.45 μm |
| IP code | IP30 |
| Product Life Cycle | Series |
| Data sheet |
