UI-3180CP Rev. 2.1
- Camera family
- CP
- Interface
- USB 3
- Sensor type
- CMOS
- Frame / Line rate
- 73.0 fps
- Shutter
- Global Shutter
- Optical class
- 1"
- Resolution
- 5.31 MPix
- Mono / Color
- Mono / Color
- Data sheet 1
- UI-3180CP-C-HQ_Rev_2_1_1.pdf
- Data sheet 2
- UI-3180CP-M-GL_Rev_2_1_1.pdf
- 소비자가
- 별도문의
uEye CP
USB 3, 5.0 Gbps, 1", ON Semiconductor, 5.31 MPix, CMOS, 73.0 fps, PYTHON 5000, 2592 x 2048

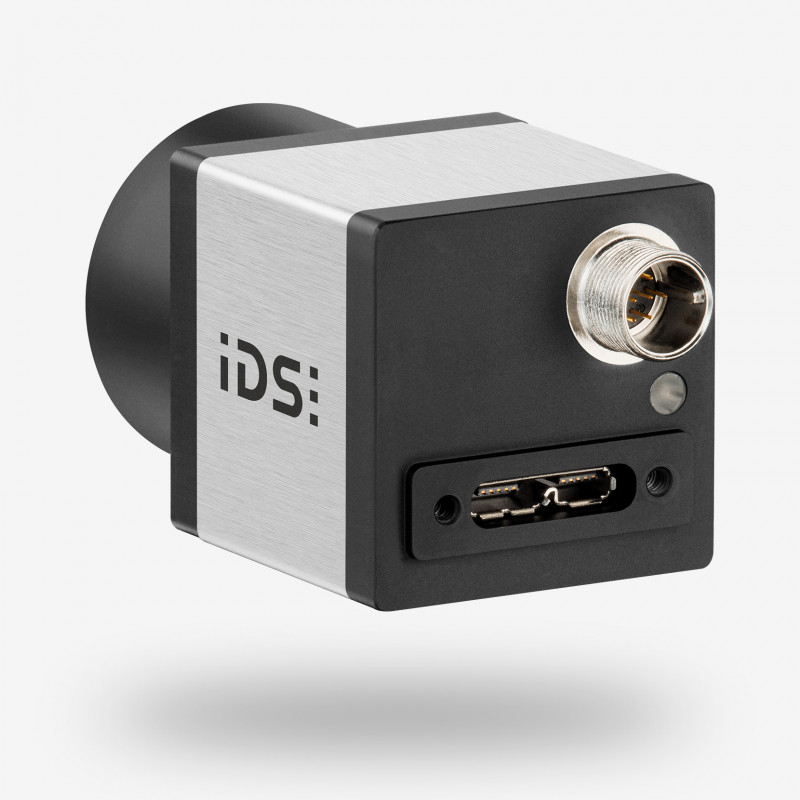

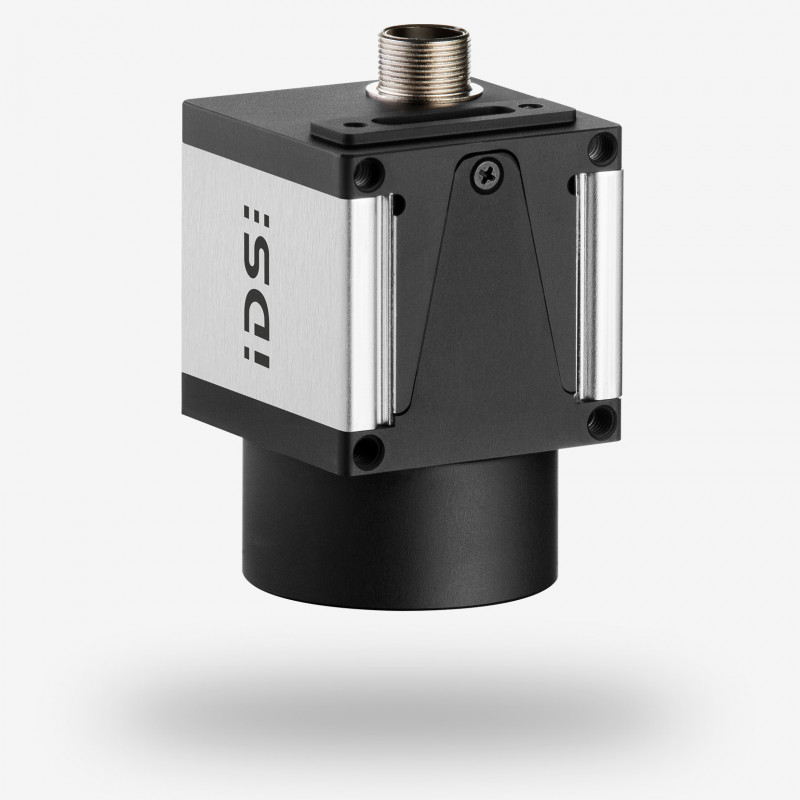

The USB 3 industrial camera UI-3180CP Rev. 2.1 with 1" global shutter CMOS sensor PYTHON 5000 from ON Semiconductor with full resolution of 2592 x 2048 (5.31 MPix, up to 73.0 fps) can be switched to the square 2K x 2K format to reach higher frame rates. With a unique AOI feature (horizontal and vertical read-out), the industrial camera reaches more than 1000 fps. It achieves 260 fps in common optical 1.3 MP class, e.g. by using the subsampling feature.
The CMOS camera is ideal especially for applications in the field of microscopy. Available as monochrome or colour version.
Due to the high sensor performance this camera model is not supported in the USB 2.0 mode.?
| Item number |
|
|---|---|
| Name | UI-3180CP Rev. 2.1 |
| Camera family | CP |
| Interface | USB 3 |
| Interface-Speed | 5.00 Gbps |
| Sensor type | CMOS |
| Sensor manufacturer | ON Semiconductor |
| Frame rate @ resolution max. | 73.0 fps |
| Resolution (h x v) | 2592 x 2048 |
| Optical Area | 12.441 mm x 9.830 mm |
| Shutter | Global Shutter |
| Optical class | 1" |
| Resolution | 5.31 MPix |
| Pixel size | 4.80 μm |
| IP code | IP30 |
| Product Life Cycle | Series |
| Data sheet |
