GV-5040SE
- Camera family
- SE
- Interface
- Ethernet
- Sensor type
- CMOS
- Frame / Line rate
- 78.0 fps
- Shutter
- Global Shutter
- Optical class
- 1/3"
- Resolution
- 1.58 MPix
- Mono / Color
- Mono / Color
- Data sheet 1
- GV-5040SE-C-HQ.pdf
- Data sheet 2
- GV-5040SE-M-GL.pdf
- 소비자가
- 별도문의

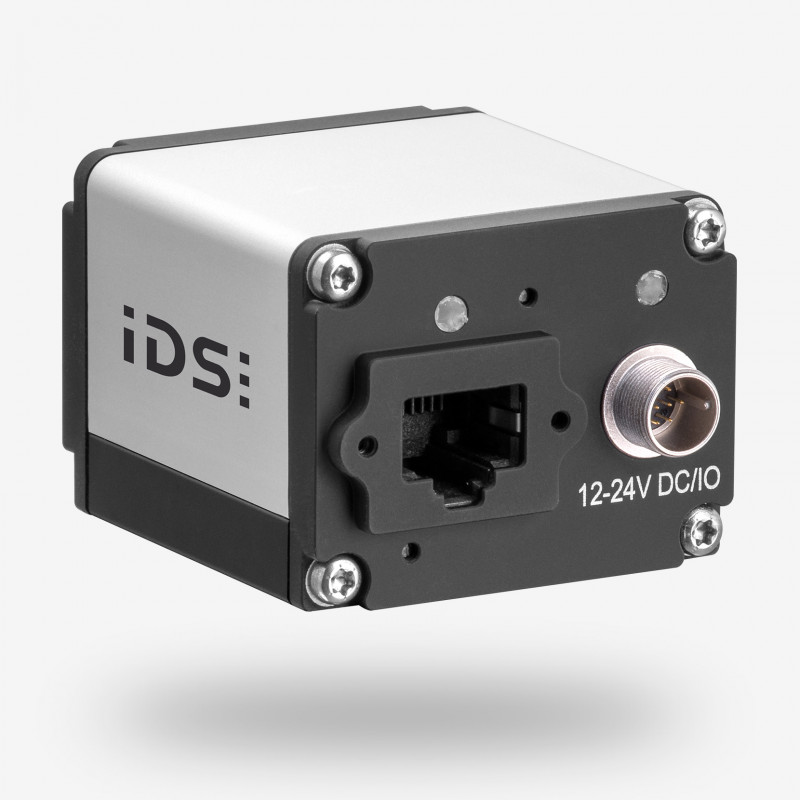

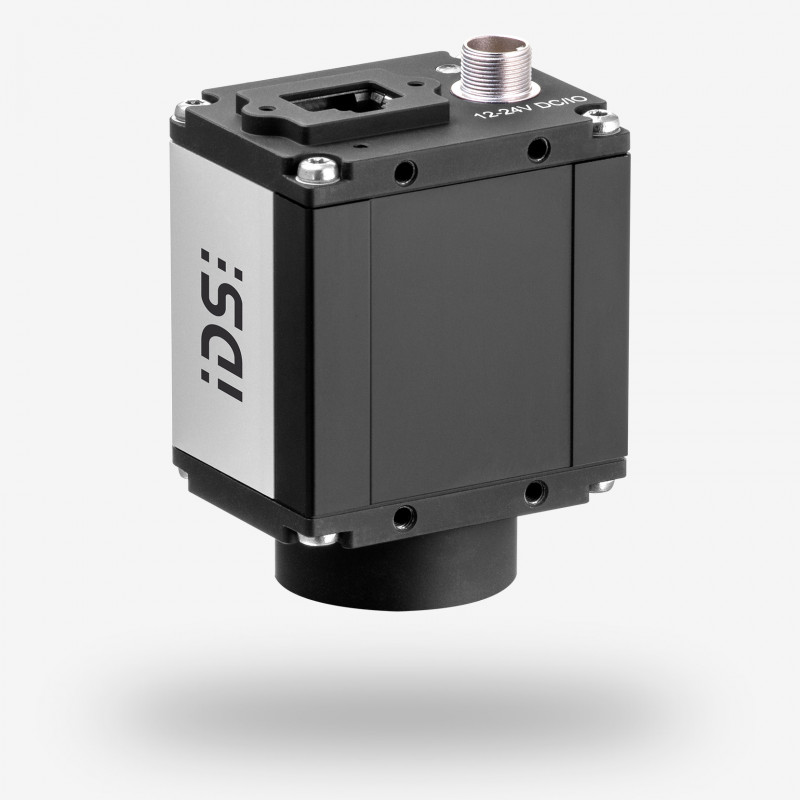

uEye SE
Ethernet 1.0 Gbps, 1/3", Sony, 1.58 MPix, CMOS, 78.0 fps, IMX273, 1456 x 1088
The GV-5040SE is equipped with Sony's Global-Shutter CMOS sensor IMX273 from the Pregius series and offers a resolution of 1.58 MPix (1456 x 1088 pixels) at 3.45 μm pixel size. At full resolution, the sensor accelerates up to 78.0 fps and provides excellent image quality even with moving vision systems as well as in low light scenarios.
This makes it ideal for machine vision applications such as surface inspection, detailed image analysis in medical technology or for use in traffic applications.
| Item number |
|
|---|---|
| Name | GV-5040SE |
| Camera family | SE |
| Interface | Ethernet |
| Interface-Speed | 1.00 Gbps |
| Sensor type | CMOS |
| Sensor manufacturer | Sony |
| Frame rate @ resolution max. | 78.0 fps |
| Resolution (h x v) | 1456 x 1088 |
| Optical Area | 5.023 mm x 3.754 mm |
| Shutter | Global Shutter |
| Optical class | 1/3" |
| Resolution | 1.58 MPix |
| Pixel size | 3.45 μm |
| IP code | IP30 |
| Product Life Cycle | Series |
