Camera family
Sensor type
Frame / Line rate
52.0 fps
Global Shutter
Optical class
2.35 MPix
Mono / Color
Mono / Color
Data sheet 1
Data sheet 2
uEye FA Ethernet 1.0 Gbps, 1/2", Sony, 2.35 MPix, CMOS, 52.0 fps, IMX392, 1936 x 1216

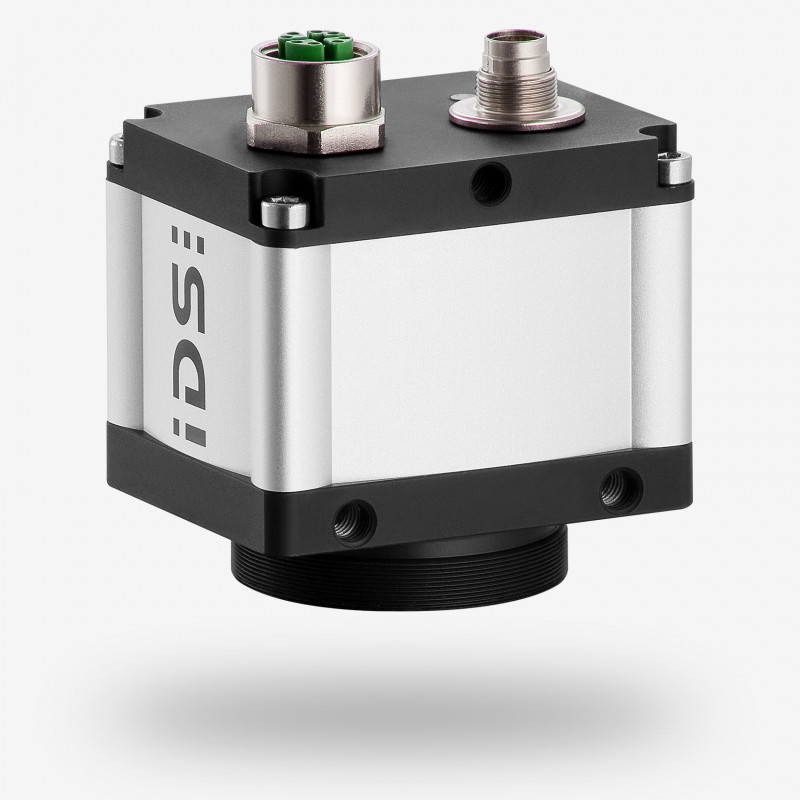

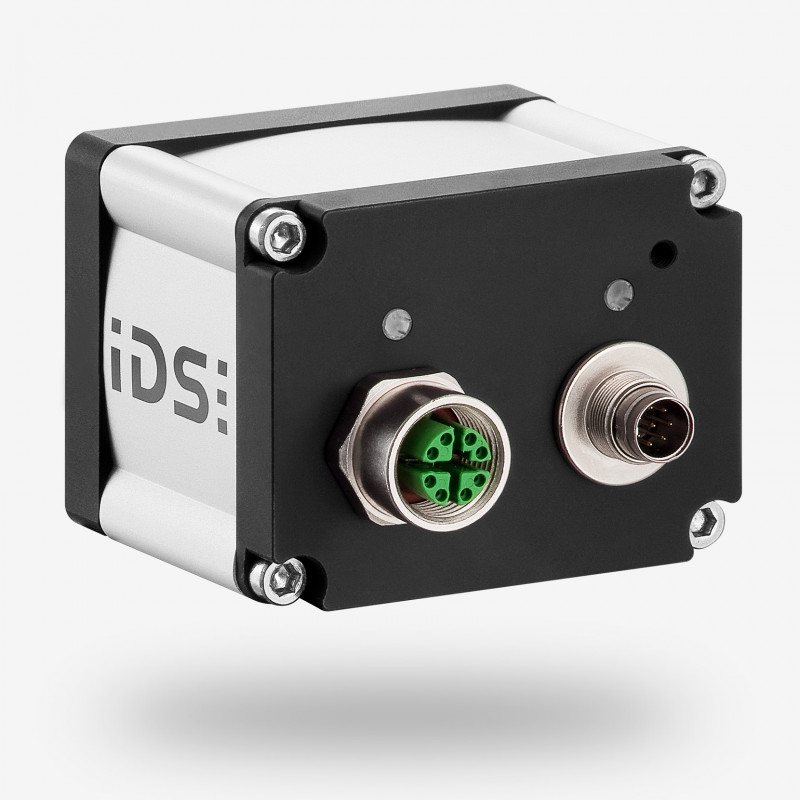

The GV-50C0FA industrial camera with GigE interface and the light-sensitive global shutter CMOS sensor IMX392 from the second generation of the Sony Pregius series offers a resolution of 2.35 MPix (1936 x 1216 px, pixel size 3.45μm). With up to 52.0 fps and Full HD, it is perfect for high-speed applications, for example in automation or quality assurance. Furthermore, the sensor is predestined for tasks that require a perfect result even in low light conditions.

The GV-50C0FA is an all-rounder in the class of 2 MP global shutter industrial cameras and provides excellent image quality thanks to its enormous sensitivity, high dynamic range and low noise. Thanks to these characteristics, it finds its place in virtually every application. The camera is available in both monochrome and colour versions. The small sensor format with a diagonal of 7.9 mm allows a wide choice of low-cost lenses.

The robust CMOS camera meets the requirements of protection class IP65/67 and is therefore resistant to dirt, dust and splash water. It is also effectively protected from outside influences thanks to matching accessories such as lens tubes and drag chain cables.

Item number
  • GV-50C0FA-M-GL: AB03494
  • GV-50C0FA-C-HQ: AB03493
Name GV-50C0FA
Camera family FA
Interface Ethernet
Interface-Speed 1.00 Gbps
Sensor type CMOS
Sensor manufacturer Sony
Frame rate @ resolution max. 52.0 fps
Resolution (h x v) 1936 x 1216
Optical Area 6.679 mm x 4.195 mm
Shutter Global Shutter
Optical class 1/2"
Resolution 2.35 MPix
Pixel size 3.45 μm
IP code IP65/67
Product Life Cycle Series
