GV-50C0SE

Camera family
SE
Interface
Ethernet
Sensor type
CMOS
Frame / Line rate
52.0 fps
Shutter
Global Shutter
Optical class
1/2"
Resolution
2.35 MPix
Mono / Color
Mono / Color
Data sheet 1
GV-50C0SE-C-HQ.pdf
Data sheet 2
GV-50C0SE-M-GL.pdf
소비자가
별도문의
uEye SE Ethernet 1.0 Gbps, 1/2", Sony, 2.35 MPix, CMOS, 52.0 fps, IMX392, 1936 x 1216

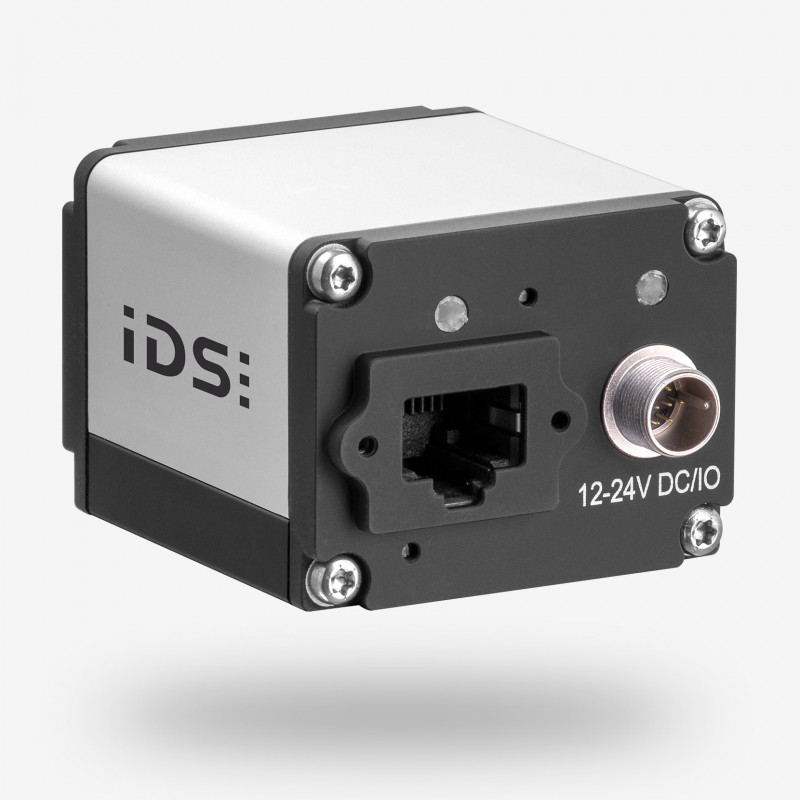

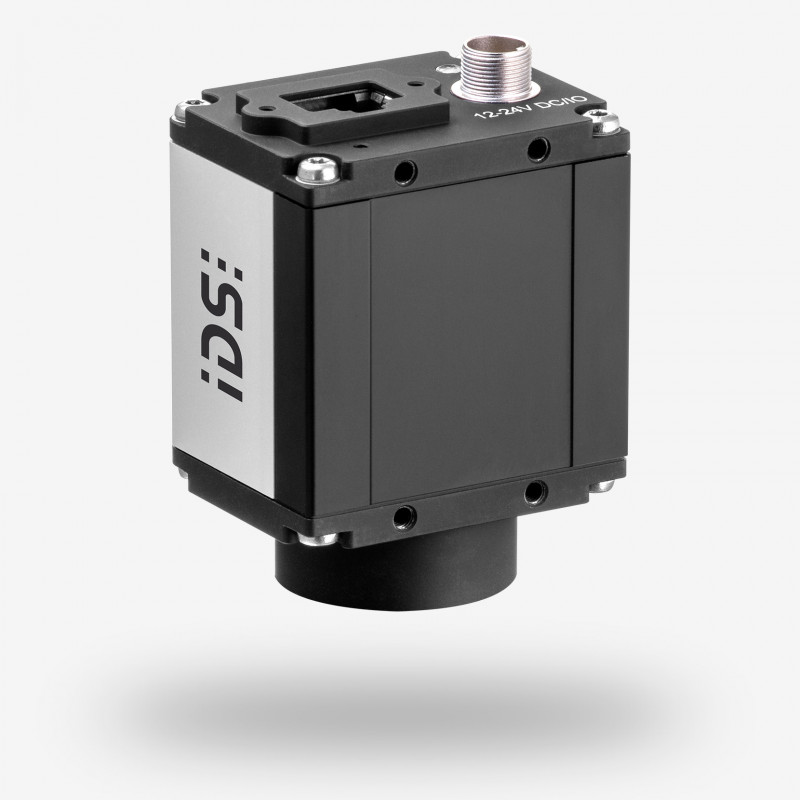

The GV-50C0SE industrial camera with GigE interface and the light-sensitive global shutter CMOS sensor IMX392 from the second generation of the Sony Pregius series offers a resolution of 2.35 MPix (1936 x 1216 px, pixel size 3.45μm). With up to 52.0 fps and Full HD, it is perfect for high-speed applications, for example in automation or quality assurance. Furthermore, the sensor is predestined for tasks that require a perfect result even in low light conditions.


The GV-50C0SE is an all-rounder in the class of 2 MP global shutter industrial cameras and provides excellent image quality thanks to its enormous sensitivity, high dynamic range and low noise. Thanks to these characteristics, it finds its place in virtually every application.


The camera is available in both monochrome and colour versions. The small sensor format with a diagonal of 7.9 mm allows a wide choice of low-cost lenses.





Item number
  • GV-50C0SE-M-GL: AB03488
  • GV-50C0SE-C-HQ: AB03487
Name GV-50C0SE
Camera family SE
Interface Ethernet
Interface-Speed 1.00 Gbps
Sensor type CMOS
Sensor manufacturer Sony
Frame rate @ resolution max. 52.0 fps
Resolution (h x v) 1936 x 1216
Optical Area 6.679 mm x 4.195 mm
Shutter Global Shutter
Optical class 1/2"
Resolution 2.35 MPix
Pixel size 3.45 μm
IP code IP30
Product Life Cycle Series
