GV-50C2SE
- Camera family
- SE
- Interface
- Ethernet
- Sensor type
- CMOS
- Frame / Line rate
- 52.0 fps
- Shutter
- Global Shutter
- Optical class
- 1/2"
- Resolution
- 2.35 MPix
- Mono / Color
- Mono / Color
- Data sheet 1
- GV-50C2SE-C.pdf
- Data sheet 2
- GV-50C2SE-M.pdf
- 소비자가
- 별도문의
The GV-50C2SE industrial camera with GigE interface and the light-sensitive global shutter CMOS sensor IMX392 from the second generation of the Sony Pregius series offers a resolution of 2.35 MPix (1936 x 1216 px, pixel size 3.45μm). With up to 52.0 fps and Full HD, it is perfect for high-speed applications, for example in automation or quality assurance. Furthermore, the sensor is predestined for tasks that require a perfect result even in low light conditions.
The GV-50C2SE is an all-rounder in the class of 2 MP global shutter industrial cameras and provides excellent image quality thanks to its enormous sensitivity, high dynamic range and low noise. Thanks to these characteristics, it finds its place in virtually every application.

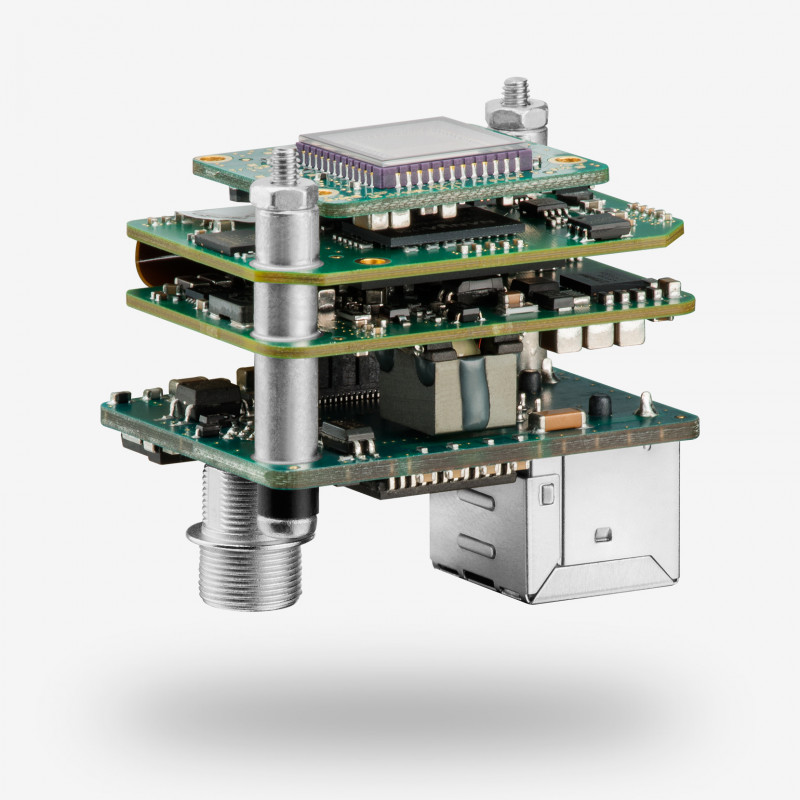

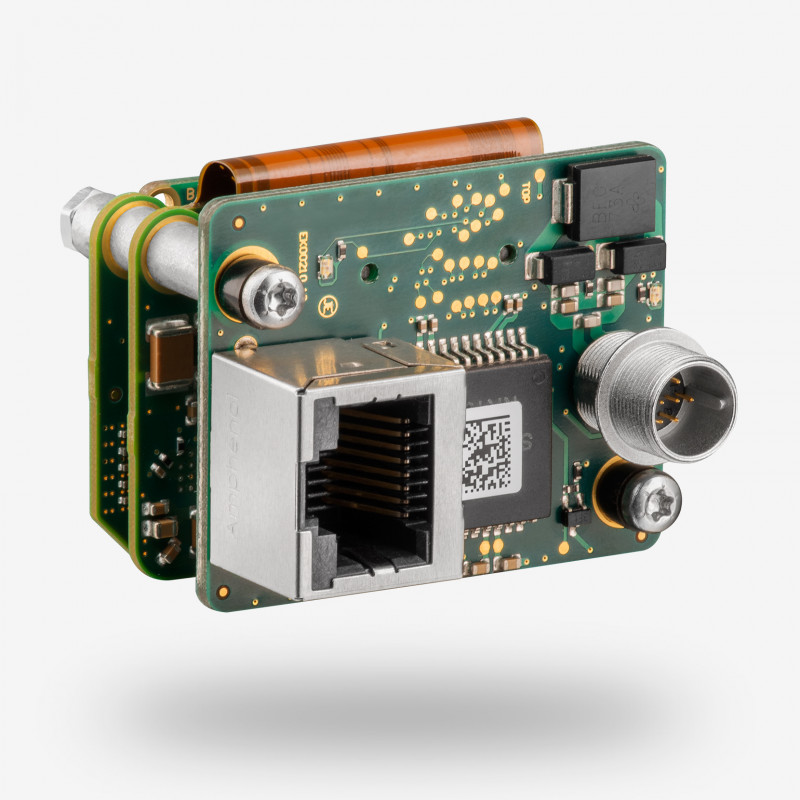

The board level camera without lens holder is available in a colour or monochrome version.
| Item number |
|
|---|---|
| Name | GV-50C2SE |
| Camera family | SE |
| Interface | Ethernet |
| Interface-Speed | 1.00 Gbps |
| Sensor type | CMOS |
| Sensor manufacturer | Sony |
| Frame rate @ resolution max. | 52.0 fps |
| Resolution (h x v) | 1936 x 1216 |
| Optical Area | 6.679 mm x 4.195 mm |
| Shutter | Global Shutter |
| Optical class | 1/2" |
| Resolution | 2.35 MPix |
| Pixel size | 3.45 μm |
| IP code | No |
| Product Life Cycle | In development |
