GV-5200SE

Camera family
SE
Interface
Ethernet
Sensor type
CMOS
Frame / Line rate
10.0 fps
Shutter
Global Shutter
Optical class
1.1"
Resolution
12.29 MPix
Mono / Color
Mono / Color
Data sheet 1
GV-5200SE-C-HQ.pdf
Data sheet 2
GV-5200SE-M-GL.pdf
소비자가
별도문의
uEye SE Ethernet 1.0 Gbps, 1.1", Sony, 12.29 MPix, CMOS, 10.0 fps, IMX304, 4096 x 3000

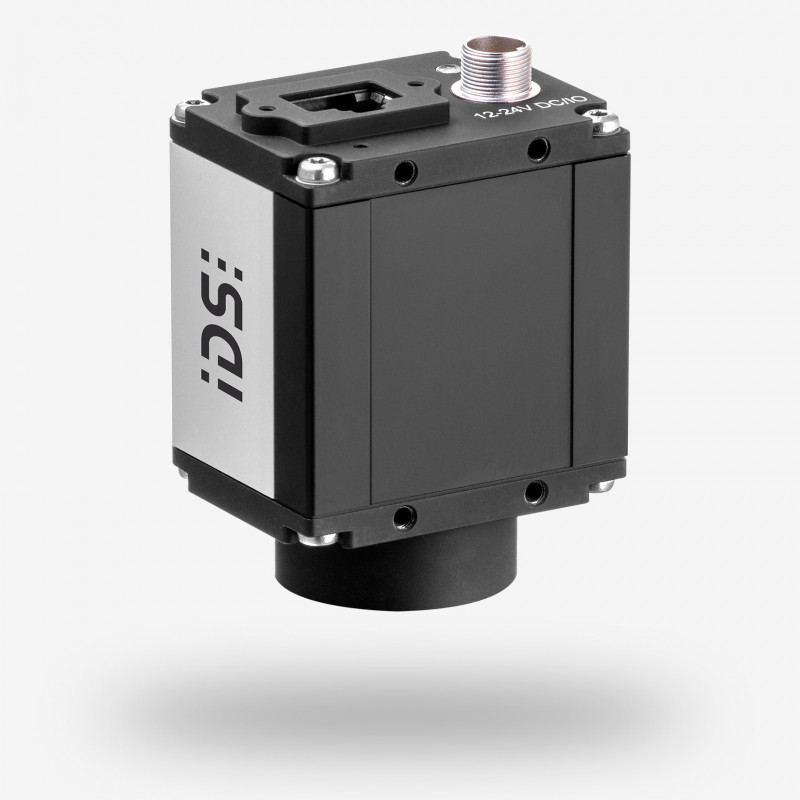

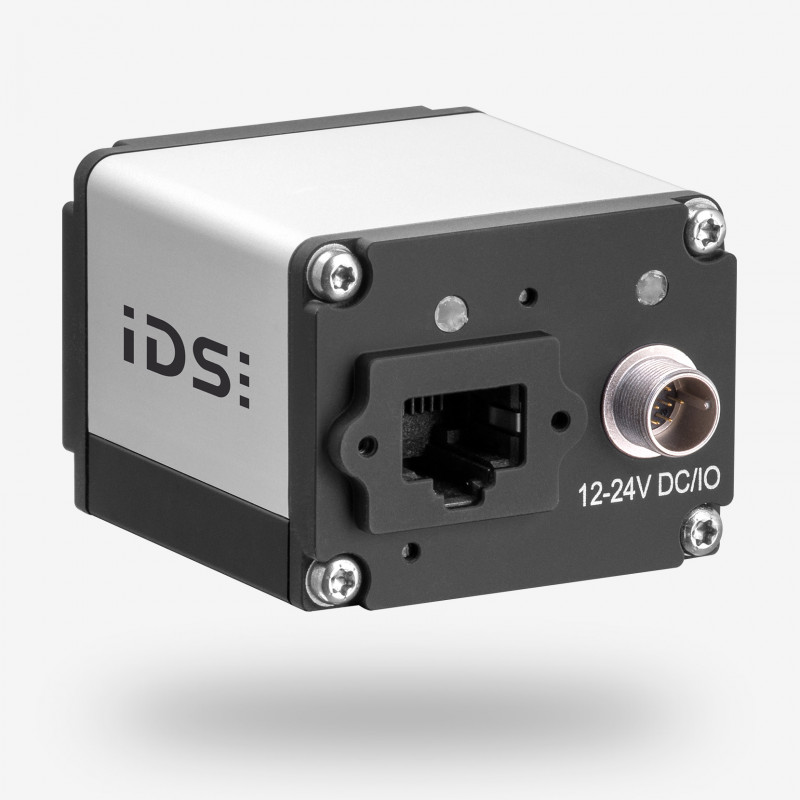

The GV-5200SE GigE industrial camera with the large area 1.1“ CMOS sensor IMX304 delivers sensationally clear, noiseless images in a resolution of 4096 x 3000 pixels. The global shutter sensor of the second, further improved pixel generation from Sony's Pregius series is impressive for its incredible dynamic range and very high sensitivity, especially for use in medical or measuring technology and traffic surveillance.


The GV-5200SE is available in both monochrome and colour variants.




Item number
  • GV-5200SE-C-HQ: AB02283
  • GV-5200SE-M-GL: AB02284
Name GV-5200SE
Camera family SE
Interface Ethernet
Interface-Speed 1.00 Gbps
Sensor type CMOS
Sensor manufacturer Sony
Frame rate @ resolution max. 10.0 fps
Resolution (h x v) 4096 x 3000
Optical Area 14.131 mm x 10.350 mm
Shutter Global Shutter
Optical class 1.1"
Resolution 12.29 MPix
Pixel size 3.45 μm
IP code IP30
Product Life Cycle Series
