GV-5240CP
- Camera family
- CP
- Interface
- Ethernet
- Sensor type
- CMOS
- Frame / Line rate
- 59.0 fps
- Shutter
- Global Shutter
- Optical class
- 1/1.8"
- Resolution
- 1.31 MPix
- Mono / Color
- Mono / Color
- Data sheet 1
- GV-5240CP-C-HQ.pdf
- Data sheet 2
- GV-5240CP-M-GL.pdf
- Data sheet 3
- GV-5240CP-NIR-GL.pdf
- 소비자가
- 별도문의
uEye CP
Ethernet 1.0 Gbps, 1/1.8", e2v, 1.31 MPix, CMOS, 59.0 fps, EV76C560, 1280 x 1024

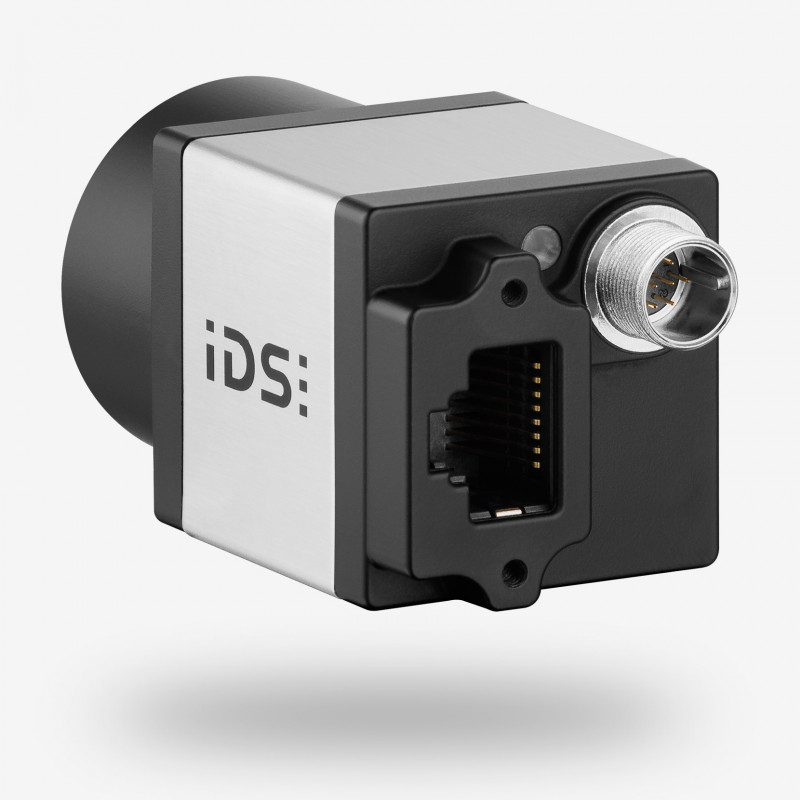

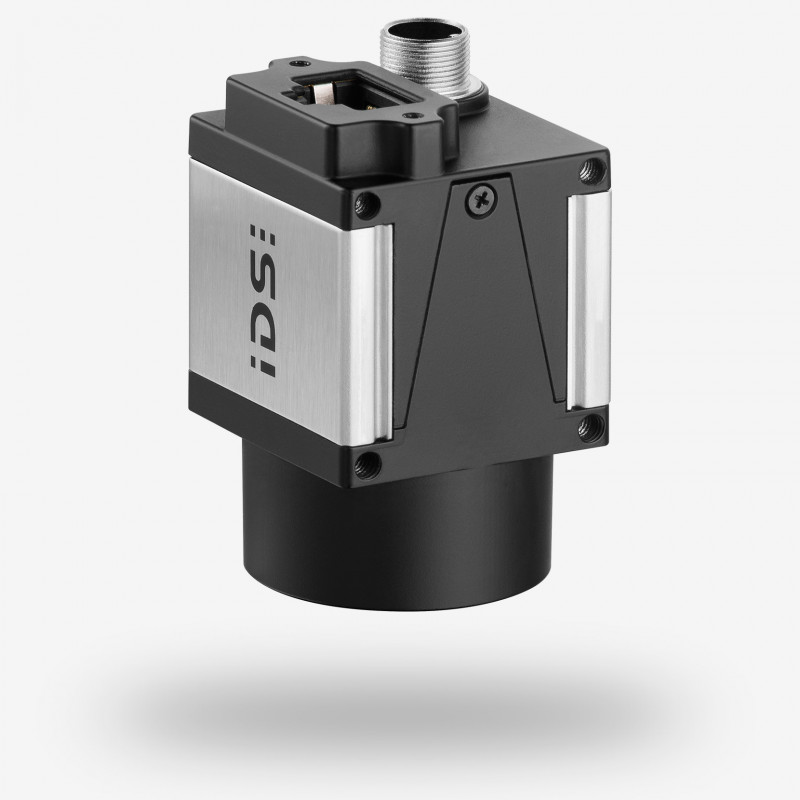

The GV-5240CP is a particularly powerful industrial camera with the e2v 1.31 MPix CMOS sensor. This is one of the most sensitive sensors in the IDS product portfolio and it is available in monochrome, colour (EV76C560ABT/EV76C560ACT), and as NIR version (EV76C661ABT).
The sensor offers an outstanding sensitivity to light in CCD quality.
| Item number |
|
|---|---|
| Name | GV-5240CP |
| Camera family | CP |
| Interface | Ethernet |
| Interface-Speed | 1.00 Gbps |
| Sensor type | CMOS |
| Sensor manufacturer | e2v |
| Frame rate @ resolution max. | 59.0 fps |
| Resolution (h x v) | 1280 x 1024 |
| Optical Area | 6.784 mm x 5.427 mm |
| Shutter | Global Shutter |
| Optical class | 1/1.8" |
| Resolution | 1.31 MPix |
| Pixel size | 5.30 μm |
| IP code | IP30 |
| Product Life Cycle | Series |
