GV-5240FA

Camera family
FA
Interface
Ethernet
Sensor type
CMOS
Frame / Line rate
59.0 fps
Shutter
Global Shutter
Optical class
1/1.8"
Resolution
1.31 MPix
Mono / Color
Mono / Color
Data sheet 1
GV-5240FA-C-HQ.pdf
Data sheet 2
GV-5240FA-M-GL.pdf
Data sheet 3
GV-5240FA-NIR-GL.pdf
소비자가
별도문의
uEye FA Ethernet 1.0 Gbps, 1/1.8", e2v, 1.31 MPix, CMOS, 59.0 fps, EV76C560, 1280 x 1024

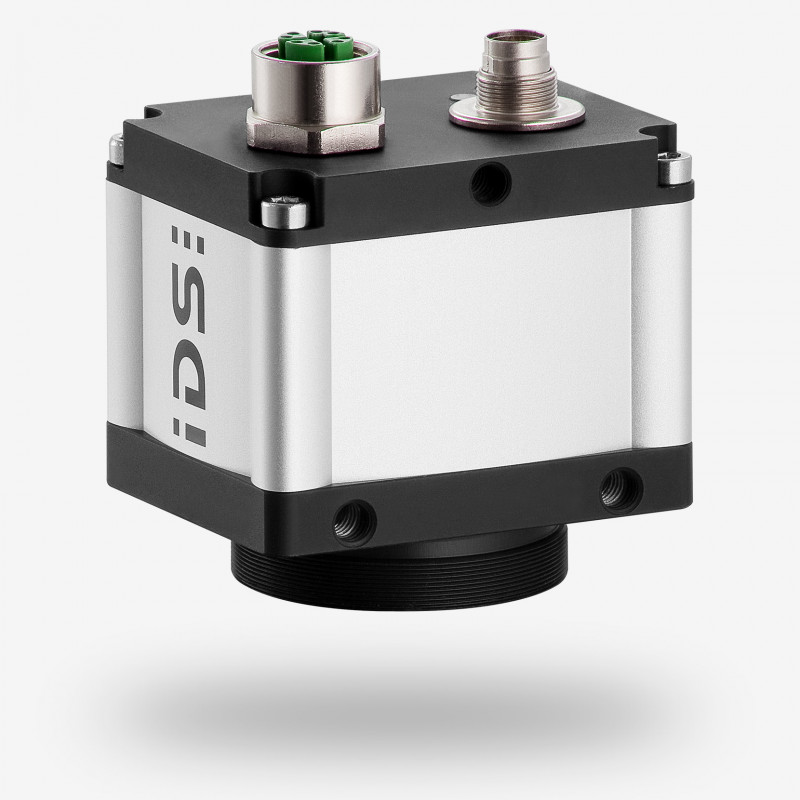

The GV-5240FA is a particularly powerful industrial camera with the e2v 1.3 megapixel CMOS sensor. This is one of the most sensitive sensors in the IDS product portfolio and it is available in monochrome, colour (EV76C560ABT/EV76C560ACT), and as NIR version (EV76C661ABT). The sensor offers an outstanding sensitivity to light in CCD quality. The PoE version also provides two additional general purpose I/Os (GPIOs).

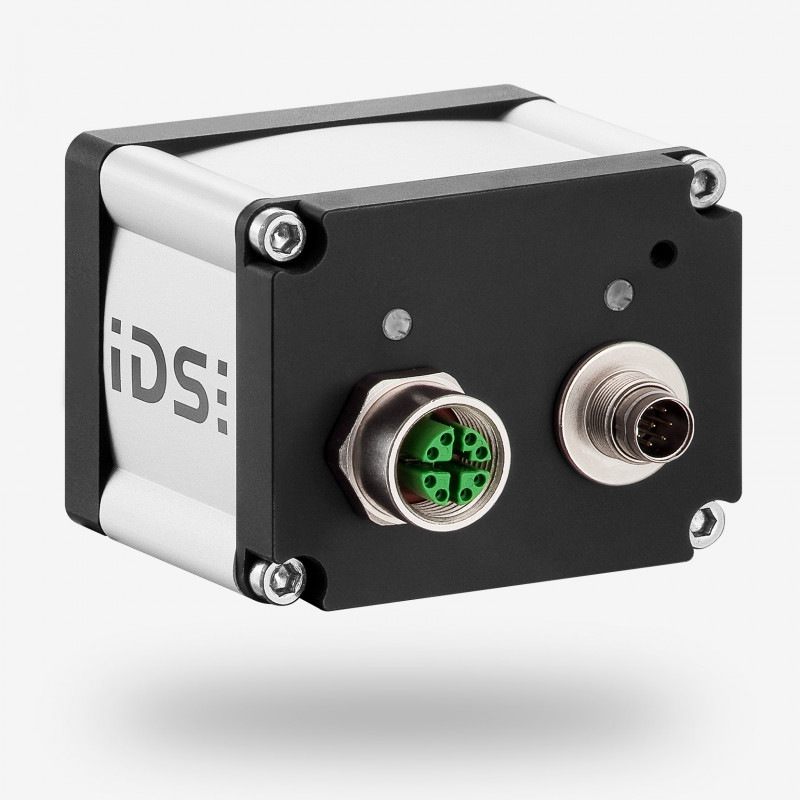

The power supply is provided by the screw-on, dust proof and splash water proof M12 circular connector.


Detailed information on the e2v CMOS sensors EV76C560 is available here.




Item number
  • GV-5240FA-NIR-GL: AB02431
  • GV-5240FA-C-HQ: AB02429
  • GV-5240FA-M-GL: AB02430
Name GV-5240FA
Camera family FA
Interface Ethernet
Interface-Speed 1.00 Gbps
Sensor type CMOS
Sensor manufacturer e2v
Frame rate @ resolution max. 59.0 fps
Resolution (h x v) 1280 x 1024
Optical Area 6.784 mm x 5.427 mm
Shutter Global Shutter
Optical class 1/1.8"
Resolution 1.31 MPix
Pixel size 5.30 μm
IP code IP65/67
Product Life Cycle Series
