GV-5242SE
- Camera family
- SE
- Interface
- Ethernet
- Sensor type
- CMOS
- Frame / Line rate
- 59.0 fps
- Shutter
- Global Shutter
- Optical class
- 1/1.8"
- Resolution
- 1.31 MPix
- Mono / Color
- Mono / Color
- Data sheet 1
- GV-5242SE-C.pdf
- Data sheet 2
- GV-5242SE-M.pdf
- 소비자가
- 별도문의
uEye SE
Ethernet 1.0 Gbps, 1/1.8", e2v, 1.31 MPix, CMOS, 59.0 fps, EV76C560, 1280 x 1024
The GV-5242SE is a particularly powerful industrial camera with the e2v 1.3 megapixel CMOS sensor. This is one of the most sensitive sensors in the IDS product portfolio and it is available in monochrome and colour (EV76C560ABT/EV76C560ACT). The sensor offers an outstanding sensitivity to light in CCD quality.

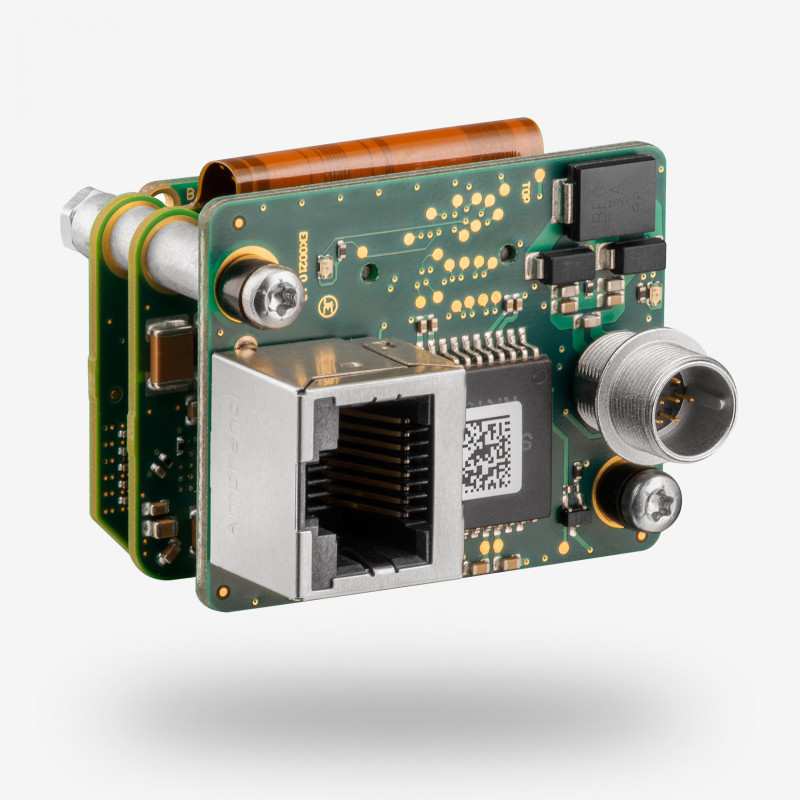

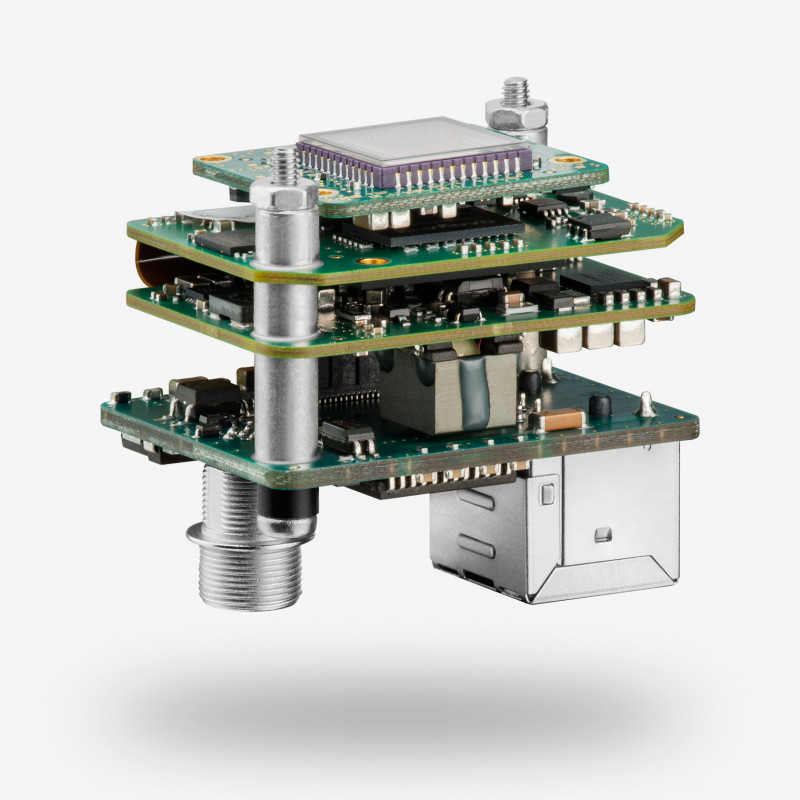

The GV-5242SE board level camera without lens holder is available in a colour or monochrome version.
| Item number |
|
|---|---|
| Name | GV-5242SE |
| Camera family | SE |
| Interface | Ethernet |
| Interface-Speed | 1.00 Gbps |
| Sensor type | CMOS |
| Sensor manufacturer | e2v |
| Frame rate @ resolution max. | 59.0 fps |
| Resolution (h x v) | 1280 x 1024 |
| Optical Area | 6.784 mm x 5.427 mm |
| Shutter | Global Shutter |
| Optical class | 1/1.8" |
| Resolution | 1.31 MPix |
| Pixel size | 5.30 μm |
| IP code | No |
| Product Life Cycle | Series |
