GV-5250SE
- Camera family
- SE
- Interface
- Ethernet
- Sensor type
- CMOS
- Frame / Line rate
- 52.0 fps
- Shutter
- Global Shutter
- Optical class
- 1/1.8"
- Resolution
- 1.92 MPix
- Mono / Color
- Mono / Color
- Data sheet 1
- GV-5250SE-C-HQ.pdf
- Data sheet 2
- GV-5250SE-M-GL.pdf
- 소비자가
- 별도문의
uEye SE
Ethernet 1.0 Gbps, 1/1.8", e2v, 1.92 MPix, CMOS, 52.0 fps, EV76C570, 1600 x 1200

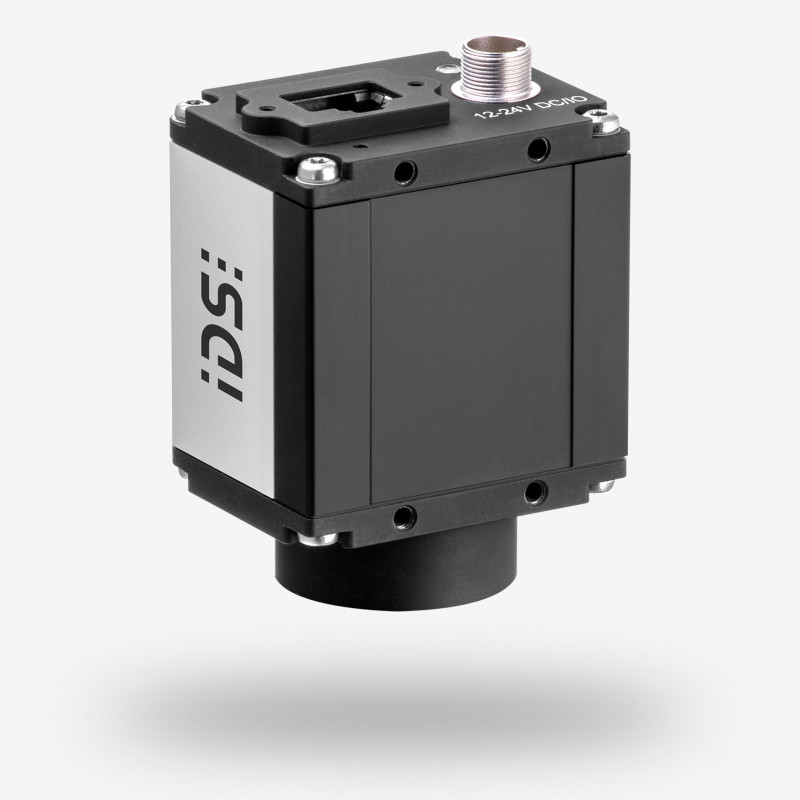

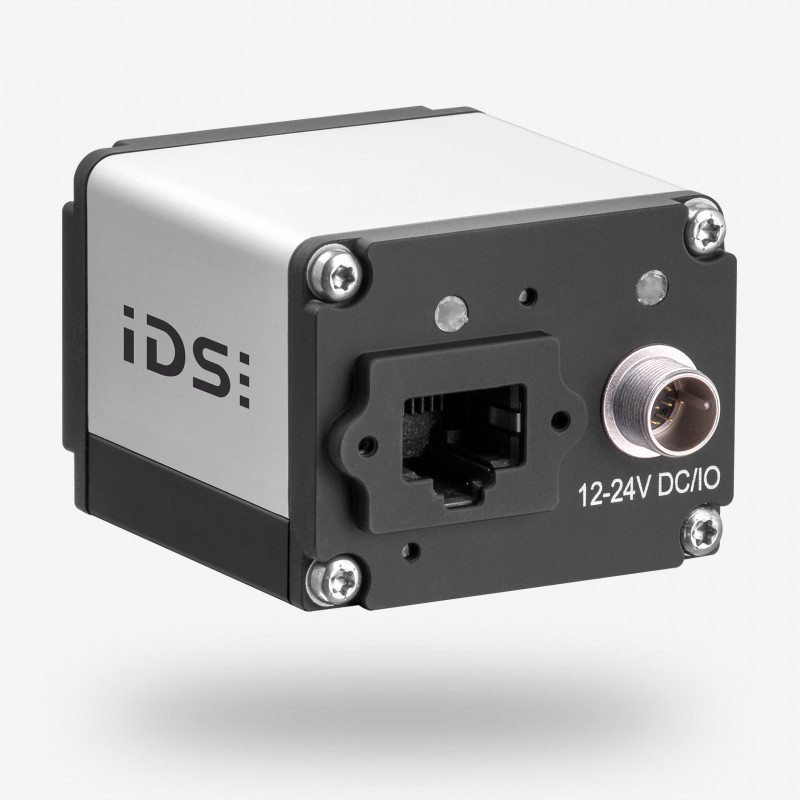

The GV-5250SE with the e2v CMOS sensor with 2 megapixel resolution is an especially high-performance and versatile industrial camera (EV76C570). It has one of the most sensitive sensors in the IDS product portfolio and it is available in monochrome and color versions. The sensor offers an outstanding sensitivity to light in CCD quality.
Detailed information on the EV76C570 sensor is available here.
| Item number |
|
|---|---|
| Name | GV-5250SE |
| Camera family | SE |
| Interface | Ethernet |
| Interface-Speed | 1.00 Gbps |
| Sensor type | CMOS |
| Sensor manufacturer | e2v |
| Frame rate @ resolution max. | 52.0 fps |
| Resolution (h x v) | 1600 x 1200 |
| Optical Area | 7.200 mm x 5.400 mm |
| Shutter | Global Shutter |
| Optical class | 1/1.8" |
| Resolution | 1.92 MPix |
| Pixel size | 4.50 μm |
| IP code | IP30 |
| Product Life Cycle | Series |
