GV-5261SE
- Camera family
- SE
- Interface
- Ethernet
- Sensor type
- CMOS
- Frame / Line rate
- 46.0 fps
- Shutter
- Global Shutter
- Optical class
- 1/1.2"
- Resolution
- 2.30 MPix
- Mono / Color
- Mono / Color
- Data sheet 1
- GV-5261SE-C-HQ.pdf
- Data sheet 2
- GV-5261SE-M-GL.pdf
- 소비자가
- 별도문의
uEye SE
Ethernet 1.0 Gbps, 1/1.2", Sony, 2.30 MPix, CMOS, 46.0 fps, IMX249, 1920 x 1200
The GigE Vision camera GV-5261SE is equipped with budget-priced 2.35 MP CMOS sensor Sony IMX249 that sets new standards in terms of light sensitivity, dynamic range and color reproduction. The GigE industrial camera provides excellent image quality with extraordinarily low-noise performance - at frame rates up to 43 fps (full resolution: 1920 x 1200 px).
The sensor is perfect for applications demanding excellent image quality even in low-light conditions e.g. in ITS and in quality assurance.

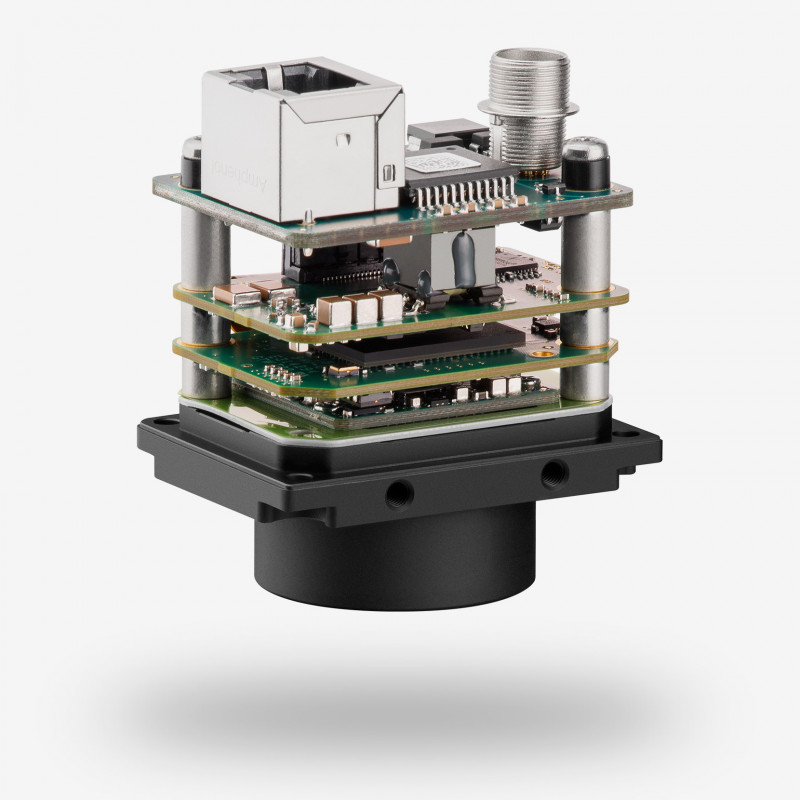

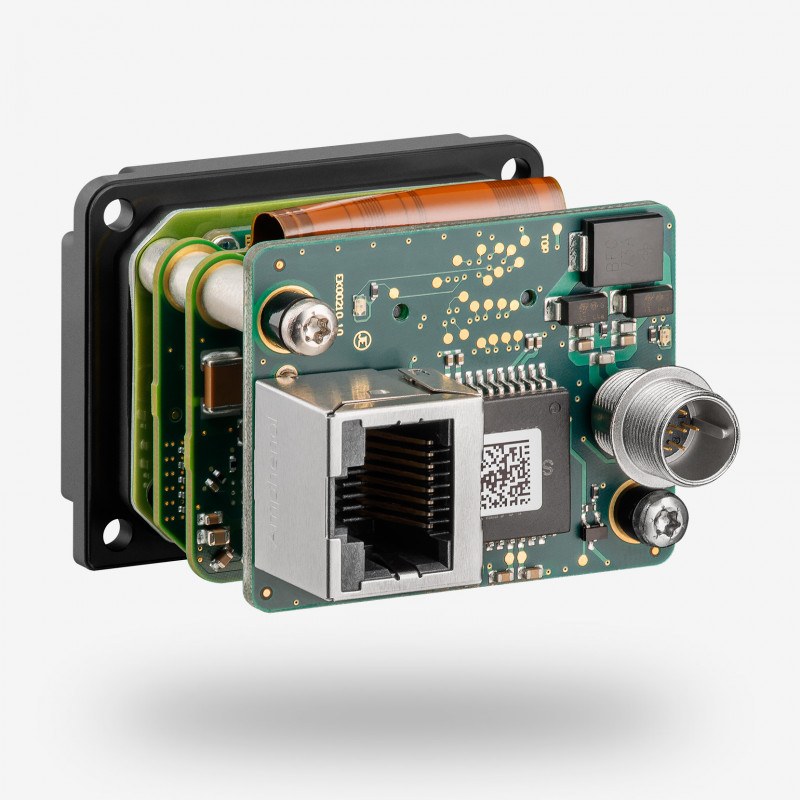

The GV-5261SE board level camera with C-mount lens holder is available in a colour or monochrome version.
| Item number |
|
|---|---|
| Name | GV-5261SE |
| Camera family | SE |
| Interface | Ethernet |
| Interface-Speed | 1.00 Gbps |
| Sensor type | CMOS |
| Sensor manufacturer | Sony |
| Frame rate @ resolution max. | 46.0 fps |
| Resolution (h x v) | 1920 x 1200 |
| Optical Area | 11.251 mm x 7.032 mm |
| Shutter | Global Shutter |
| Optical class | 1/1.2" |
| Resolution | 2.30 MPix |
| Pixel size | 5.86 μm |
| IP code | No |
| Product Life Cycle | Series |
