IDS NXT rio GS18031

Camera family
IDS NXT rio
Interface
Ethernet
Sensor type
CMOS
Resolution (h x v)
2048 x 1536
Shutter
Global Shutter
Optical class
1/1.8"
Resolution
3.15 MPix
Mono / Color
Mono / Color
Data sheet 1
IDS_NXT_rio_GS18031M-GL.pdf
Data sheet 2
IDS_NXT_rio_GS18031C-HQ.pdf
소비자가
별도문의

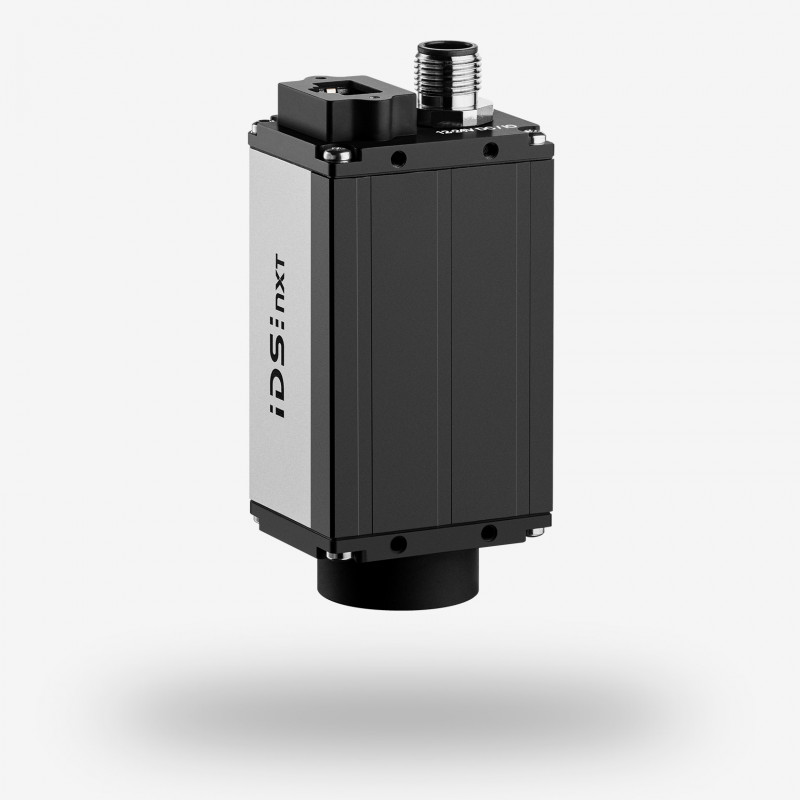

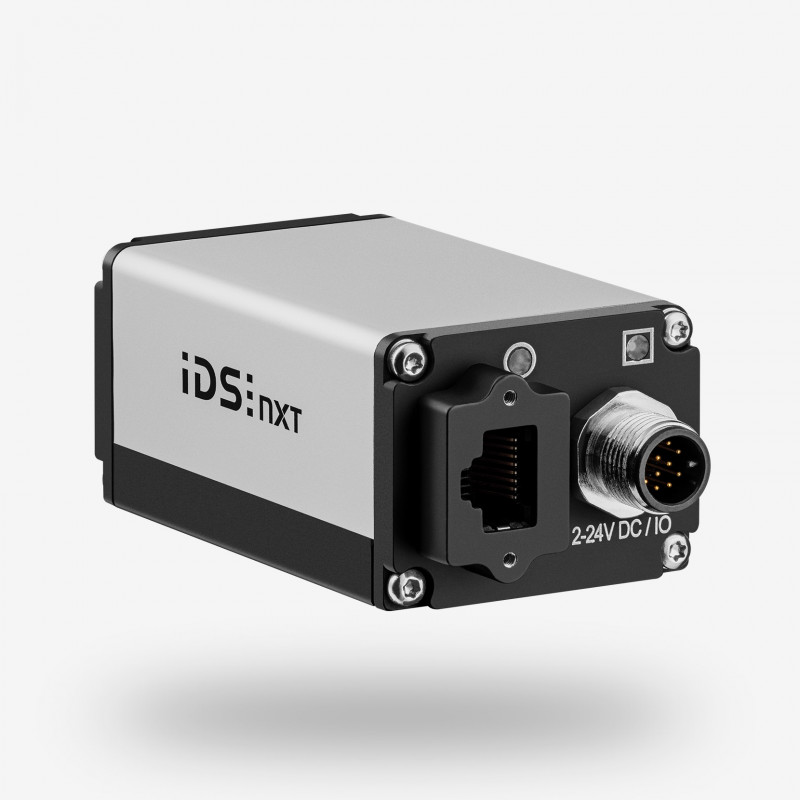

IDS NXT rio Ethernet 1.0 Gbps, 1/1.8", Sony, 3.15 MPix, CMOS, IMX265, 2048 x 1536

IDS NXT rio is an embedded vision platform in the form of a compact industrial camera that can execute neural networks with inference times of a few milliseconds thanks to the integrated, specially developed AI core ("deep ocean core").


AI-based image processing is particularly easy to realize using the IDS NXT lighthouse training software. Thanks to features such as C-mount, serial RS232 interface and a Gigabit Ethernet network connection with RJ45 connector, which enables the camera to communicate via REST web service and OPC UA, the model is ideally suited for use in industrial environments.


The 1/1.8" global shutter sensor IMX265 from Sony’s Pregius series delivers particularly low-noise images with a resolution of 2048 x 1536 pixels and easily meets high demands on image quality.


The IDS NXT rio GS18031 is available in monochrome or colour.




Item number
  • IDS NXT rio GS18031C-HQ: AS00028
  • IDS NXT rio GS18031M-GL: AS00027
Name IDS NXT rio GS18031
Camera family IDS NXT rio
Interface Ethernet
Interface-Speed 1.00 Gbps
Sensor type CMOS
Sensor manufacturer Sony
Resolution (h x v) 2048 x 1536
Optical Area 7.066 mm x 5.300 mm
Shutter Global Shutter
Optical class 1/1.8"
Resolution 3.15 MPix
Pixel size 3.45 μm
IP code IP30
Product Life Cycle Series
