GV-5272SE
- Camera family
- SE
- Interface
- Ethernet
- Sensor type
- CMOS
- Frame / Line rate
- 37.0 fps
- Shutter
- Global Shutter
- Optical class
- 1/1.8"
- Resolution
- 3.15 MPix
- Mono / Color
- Mono / Color
- Data sheet 1
- GV-5272SE-C.pdf
- Data sheet 2
- GV-5272SE-M.pdf
- 소비자가
- 별도문의
uEye SE
Ethernet 1.0 Gbps, 1/1.8", Sony, 3.15 MPix, CMOS, 37.0 fps, IMX265, 2048 x 1536
Arguably the best CMOS image sensor in the 3 MP class. The GV-5272SE GigE Vision industrial camera with the 1/1.8" global shutter IMX265 sensor from Sony offers a resolution of 3.15 MP (2048 x 1536 pixels) at a frame rate of 34 fps via the GigE interface. In terms of dynamic range, sensitivity, and linearity, the camera is unrivaled and is enthusiastically received by industrial customers in mechanical engineering, measuring technology, and medical technology.

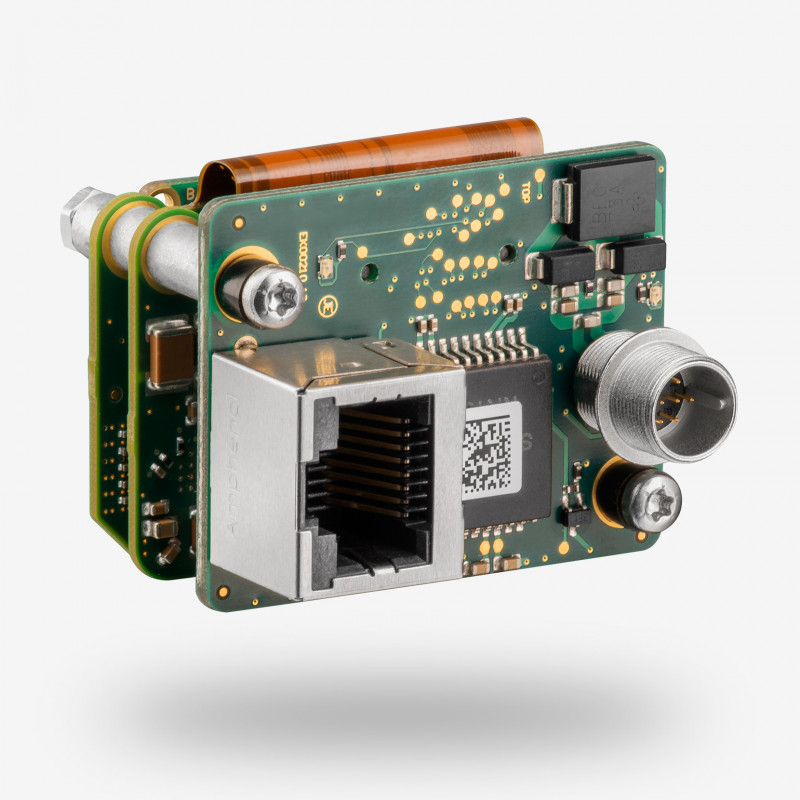

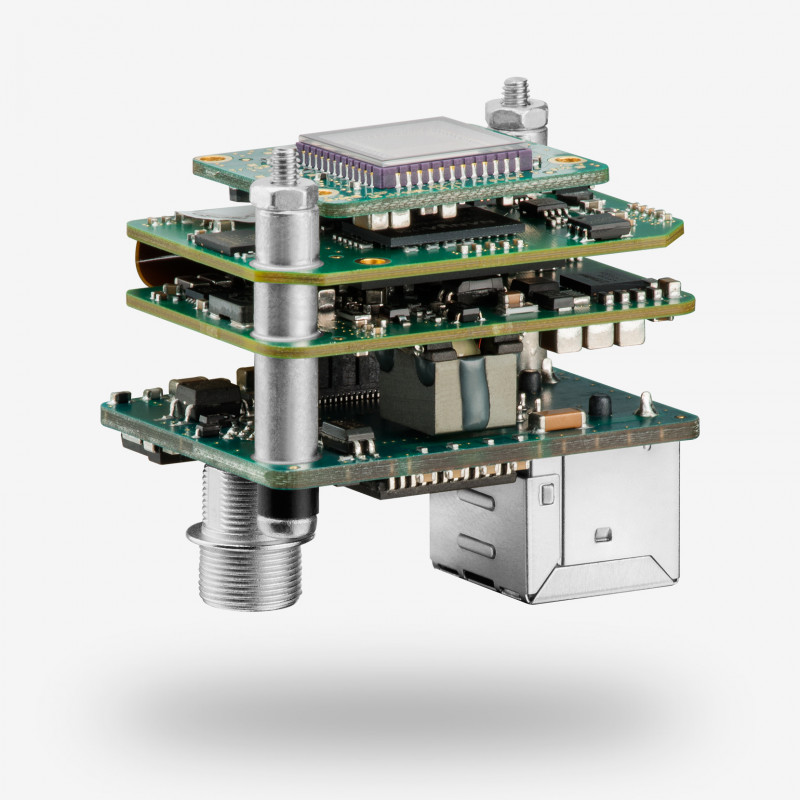

The GV-5272SE board level camera without lens holder is available in a colour or monochrome version.
| Item number |
|
|---|---|
| Name | GV-5272SE |
| Camera family | SE |
| Interface | Ethernet |
| Interface-Speed | 1.00 Gbps |
| Sensor type | CMOS |
| Sensor manufacturer | Sony |
| Frame rate @ resolution max. | 37.0 fps |
| Resolution (h x v) | 2048 x 1536 |
| Optical Area | 7.066 mm x 5.300 mm |
| Shutter | Global Shutter |
| Optical class | 1/1.8" |
| Resolution | 3.15 MPix |
| Pixel size | 3.45 μm |
| IP code | No |
| Product Life Cycle | Series |
