GV-5292SE
- Camera family
- SE
- Interface
- Ethernet
- Sensor type
- CMOS
- Frame / Line rate
- 13.0 fps
- Shutter
- Global Shutter
- Optical class
- 1"
- Resolution
- 8.85 MPix
- Mono / Color
- Mono / Color
- Data sheet 1
- GV-5292SE-C.pdf
- Data sheet 2
- GV-5292SE-M_.pdf
- 소비자가
- 별도문의
uEye SE
Ethernet 1.0 Gbps, 1", Sony, 8.85 MPix, CMOS, 13.0 fps, IMX267, 4096 x 2160
Our GV-5292SE GigE Vision camera with the IMX267 8.8 megapixel CMOS sensor from Sony has an impressively large dynamic range and high light sensitivity, including in the NIR range. With a frame rate of 12 fps, it delivers perfect, practically noiseless image quality even in low light conditions.
The reduced pixel size of 3.45 μm allows more pixels in a smaller optical format.

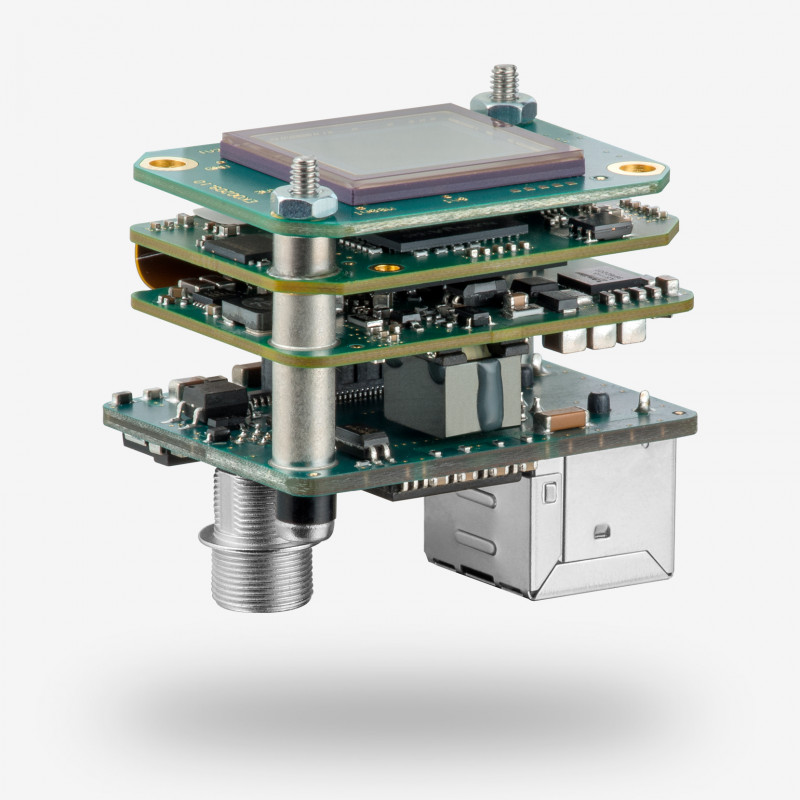

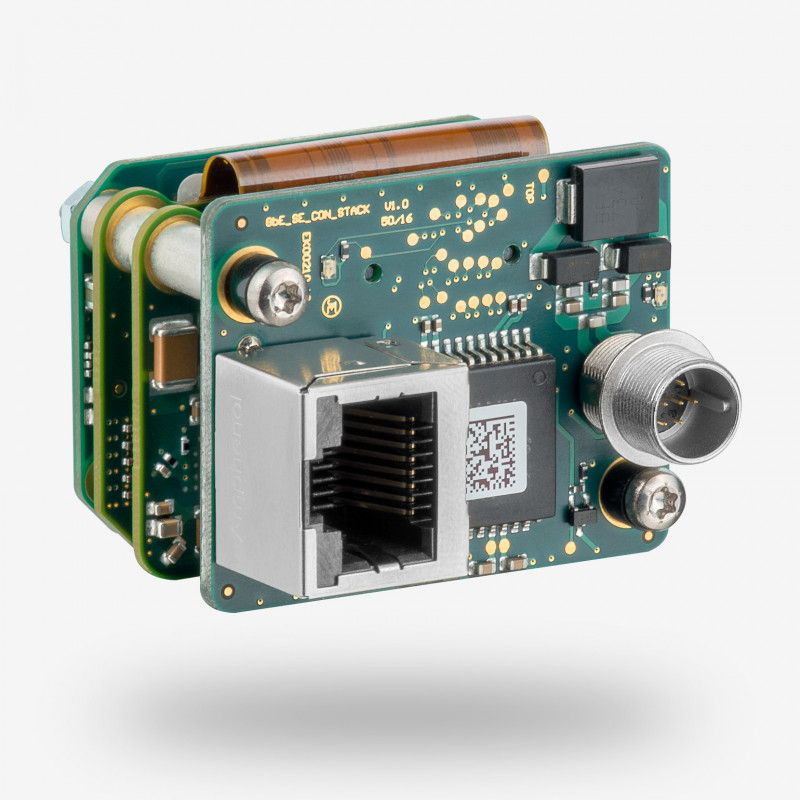

The GV-5292SE board level camera without lens holder is available in a colour or monochrome version.
| Item number |
|
|---|---|
| Name | GV-5292SE |
| Camera family | SE |
| Interface | Ethernet |
| Interface-Speed | 1.00 Gbps |
| Sensor type | CMOS |
| Sensor manufacturer | Sony |
| Frame rate @ resolution max. | 13.0 fps |
| Resolution (h x v) | 4096 x 2160 |
| Optical Area | 14.131 mm x 7.452 mm |
| Shutter | Global Shutter |
| Optical class | 1" |
| Resolution | 8.85 MPix |
| Pixel size | 3.45 μm |
| IP code | No |
| Product Life Cycle | Series |
