GV-5581SE
- Camera family
- SE
- Interface
- Ethernet
- Sensor type
- CMOS
- Frame / Line rate
- 15.0 fps
- Shutter
- Rolling Shutter
- Optical class
- 1/2.5"
- Resolution
- 4.92 MPix
- Mono / Color
- Mono / Color
- Data sheet 1
- GV-5581SE-C-HQ.pdf
- 소비자가
- 별도문의
The GV-5581SE GigE Vision camera is equipped with the 4.92 megapixel CMOS sensor (MT9P006STC colour version) from ON Semiconductor. About half an inch in size, the sensor delivers a resolution of 2560 x 1920 pixels. Thanks to the innovative A-Pix™ pixel technology, the sensor is very sensitive to light, which makes it an affordable alternative to many CCD sensors currently available on the market. This also makes the camera particularly suitable for applications that require maximum precision in colour rendering and crystal clear image quality. The A-Pix™ pixel technology is based on the gathering of light by a lightguide, which directs the gathered incident light from the colour filter to the surface of the photo diode.
Structure and process improvements in pixel technology have increased the sensitivity of the sensor in the red and green range in particular by up to 30 % compared to the previous version of the sensor.

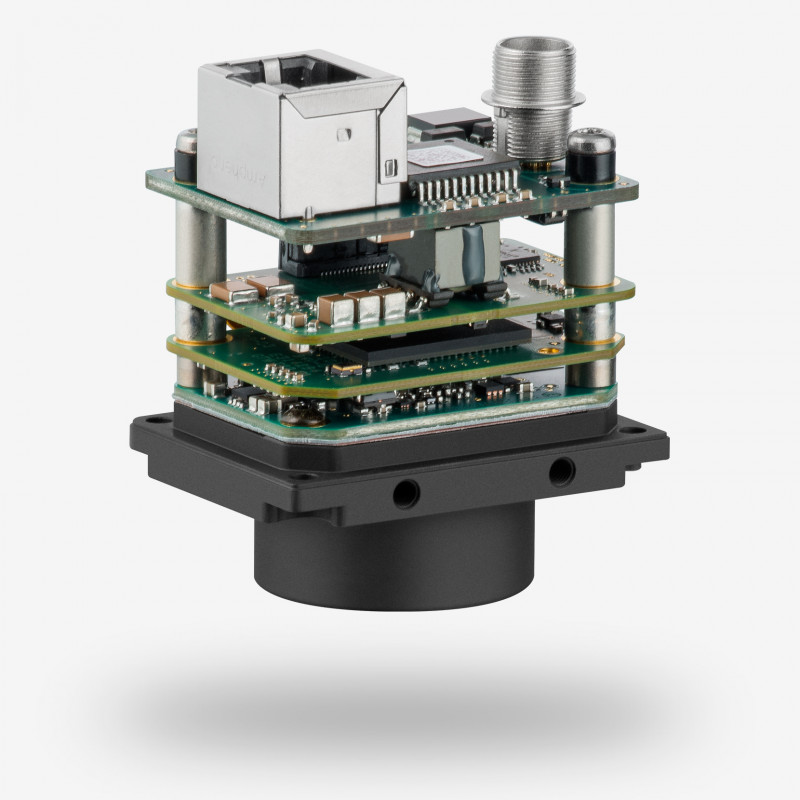

The GV-5581SE board level camera with C-mount lens holder is available in a colour version.
| Item number |
|
|---|---|
| Name | GV-5581SE |
| Camera family | SE |
| Interface | Ethernet |
| Interface-Speed | 1.00 Gbps |
| Sensor type | CMOS |
| Sensor manufacturer | ON Semiconductor |
| Frame rate @ resolution max. | 15.0 fps |
| Resolution (h x v) | 2560 x 1920 |
| Optical Area | 5.632 mm x 4.224 mm |
| Shutter | Rolling Shutter |
| Optical class | 1/2.5" |
| Resolution | 4.92 MPix |
| Pixel size | 2.20 μm |
| IP code | No |
| Product Life Cycle | Series |
