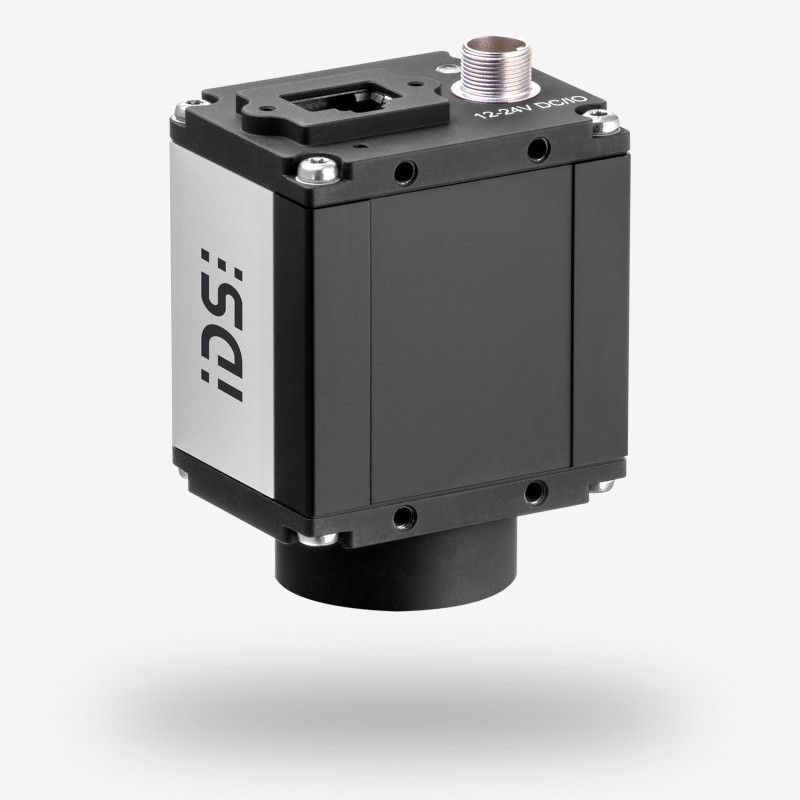

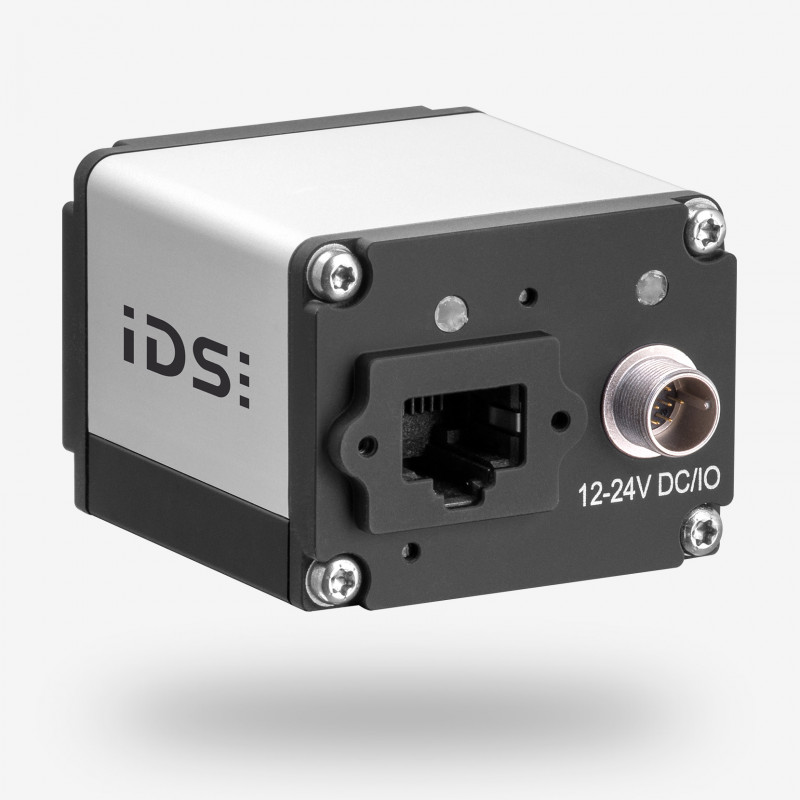

GV-5800SE
- Camera family
- SE
- Interface
- Ethernet
- Sensor type
- CMOS
- Frame / Line rate
- 6.0 fps
- Shutter
- Rolling Shutter
- Optical class
- 1"
- Resolution
- 20.44 MPix
- Mono / Color
- Mono / Color
- Data sheet 1
- GV-5800SE-C-HQ.pdf
- Data sheet 2
- GV-5800SE-M-GL.pdf
- 소비자가
- 별도문의
uEye SE
Ethernet 1.0 Gbps, 1", Sony, 20.44 MPix, CMOS, 6.0 fps, IMX183, 5536 x 3692
Exceptionally high-resolution images with low noise levels ensure the capture of even smallest details: the light-sensitive IMX183 Rolling Shutter CMOS Sensor from Sony's STARVIS series provides outstanding image quality even under low light conditions thanks to its BSI technology ("back-side-illumination"). With a resolution of 20.44 MPix (5536 x 3692) at 2.4 μm pixels, it delivers 6.0 fps in the GigE Vision industrial camera GV-5800SE.
The camera is therefore ideally suited for complex image analysis in applications such as surface and display inspections, medical technology or traffic applications.
The GV-5800SE is available in monochrome or colour.
This camera model is supported by IDS Vision firmware 2.4 and higher.
| Item number |
|
|---|---|
| Name | GV-5800SE |
| Camera family | SE |
| Interface | Ethernet |
| Interface-Speed | 1.00 Gbps |
| Sensor type | CMOS |
| Sensor manufacturer | Sony |
| Frame rate @ resolution max. | 6.0 fps |
| Resolution (h x v) | 5536 x 3692 |
| Optical Area | 13.286 mm x 8.861 mm |
| Shutter | Rolling Shutter |
| Optical class | 1" |
| Resolution | 20.44 MPix |
| Pixel size | 2.40 μm |
| IP code | IP30 |
| Product Life Cycle | Series |
