GV-5862SE
- Camera family
- SE
- Interface
- Ethernet
- Sensor type
- CMOS
- Frame / Line rate
- 56.0 fps
- Shutter
- Rolling Shutter
- Optical class
- 1/3"
- Resolution
- 2.12 MPix
- Mono / Color
- Mono / Color
- Data sheet 1
- GV-5862SE-C.pdf
- Data sheet 2
- GV-5862SE-M.pdf
- 소비자가
- 별도문의
This cost-optimised, fast IMX290 sensor from Sony's STARVIS series is now also available in our GigE Vision industrial camera GV-5862SE. The CMOS camera offers truly impressive image quality with clean colour separation for a faithful rendering of subjects even in extremely poor or varying lighting conditions. It offers the popular full HD resolution for visualization applications, outstanding low dark noise value and incredible high quantum efficiency with more than 77 %.
With its high frame rate and although its rolling shutter, the camera is suitable for capturing fast-moving objects, e.g. in bottling or parcel sorting. The sensor's small visual 1/2.8" format is ideal for cost-effective lenses.

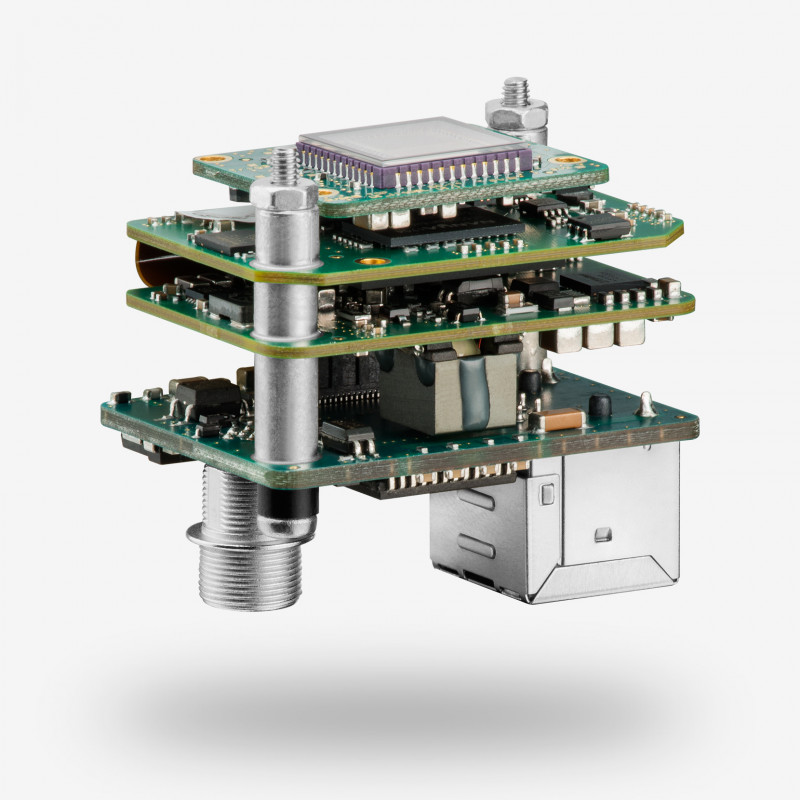

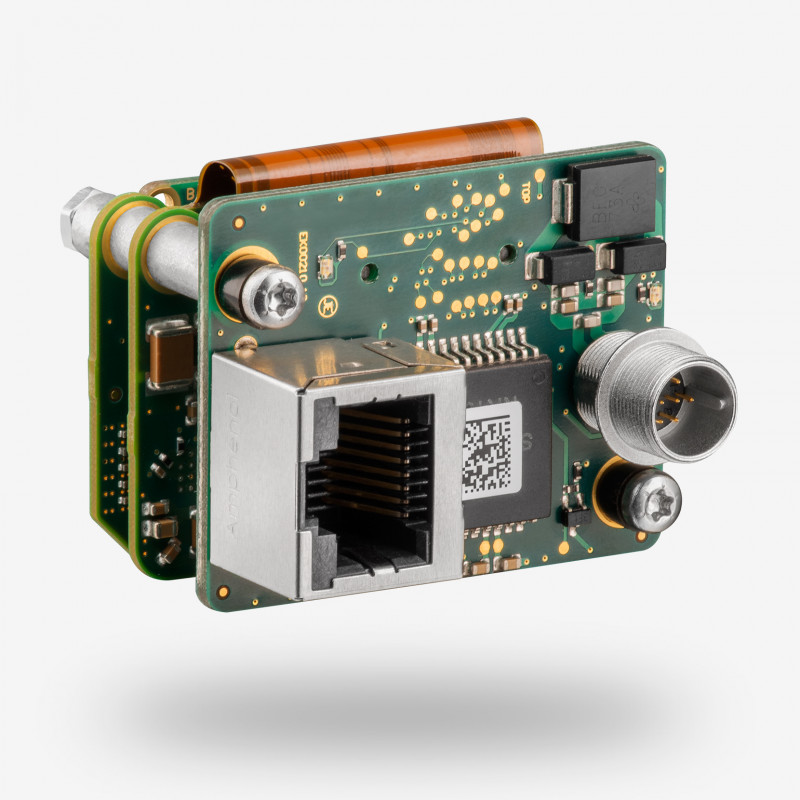

The GV-5862SE board level camera without lens holder is available in a colour or monochrome version.
| Item number |
|
|---|---|
| Name | GV-5862SE |
| Camera family | SE |
| Interface | Ethernet |
| Interface-Speed | 1.00 Gbps |
| Sensor type | CMOS |
| Sensor manufacturer | Sony |
| Frame rate @ resolution max. | 56.0 fps |
| Resolution (h x v) | 1936 x 1096 |
| Optical Area | 5.614 mm x 3.178 mm |
| Shutter | Rolling Shutter |
| Optical class | 1/3" |
| Resolution | 2.12 MPix |
| Pixel size | 2.90 μm |
| IP code | No |
| Product Life Cycle | Series |
