GV-5880SE
- Camera family
- SE
- Interface
- Ethernet
- Sensor type
- CMOS
- Frame / Line rate
- 18.0 fps
- Shutter
- Rolling Shutter
- Optical class
- 1/1.8"
- Resolution
- 6.41 MPix
- Mono / Color
- Mono / Color
- Data sheet 1
- GV-5880SE-C-HQ.pdf
- Data sheet 2
- GV-5880SE-M-GL.pdf
- 소비자가
- 별도문의

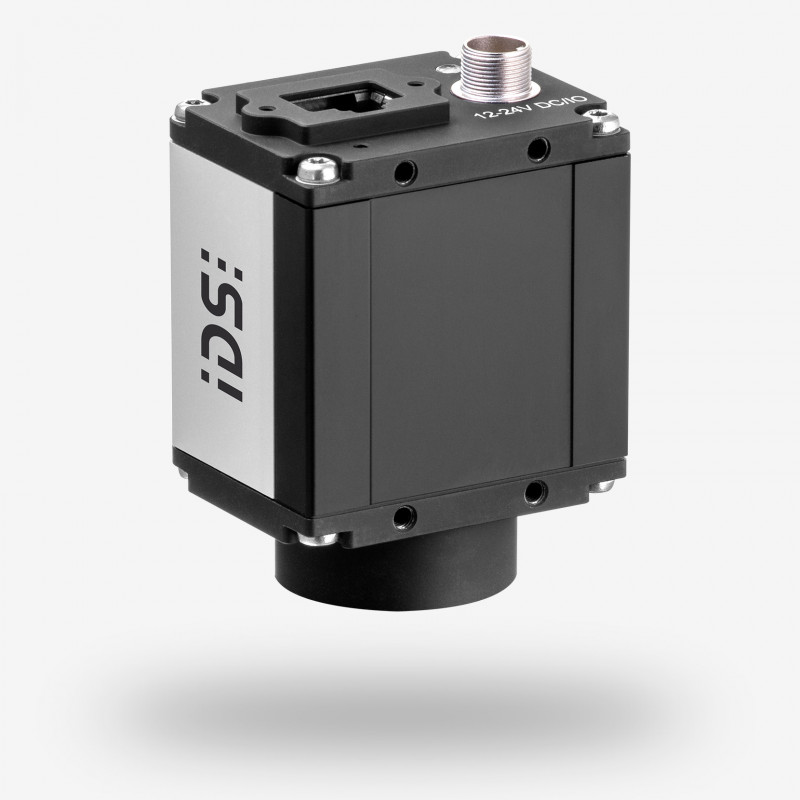

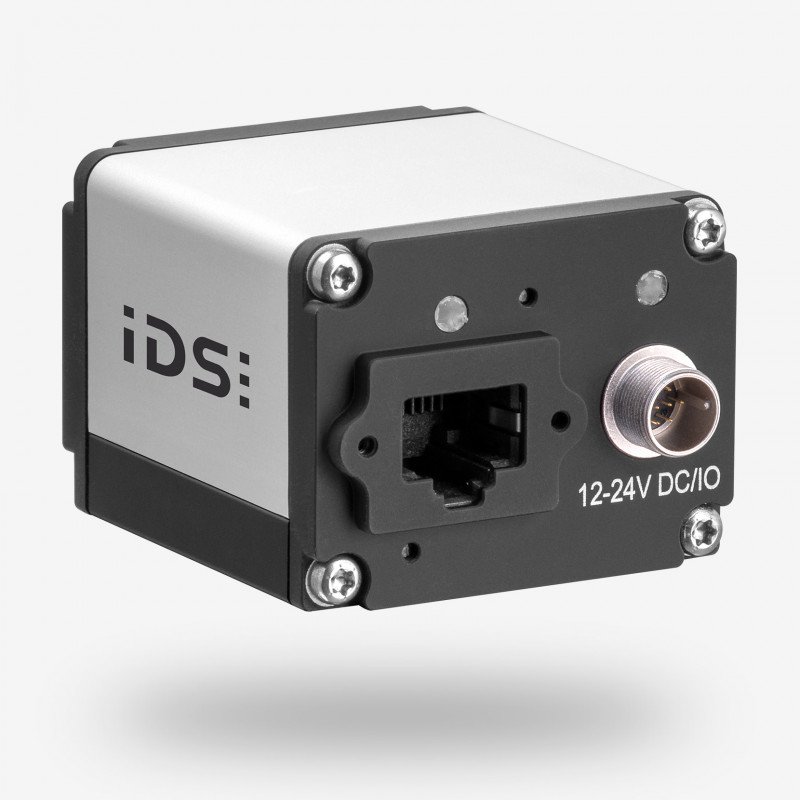

The GigE Vision CMOS camera GV-5880SE with the 1/1.8" rolling shutter CMOS sensor Sony IMX178 offers an extremely high resolution of 6.4 MP (3088 x 2076 px, aspect ratio 3:2), which is ideal for visualization tasks in microscopy or as a cost-conscious option for intelligent traffic systems (ITS). The sensor from the Sony STARVIS series features BSI technology ("back-side-illumination") and is one of the most light-sensitive sensors with a low dark current close to the SCMOS range (Scientific CMOS).
It produces impressive results even in extremely low lighting conditions. Together with our GigE Vision industrial cameras, the Sony IMX178 delivers frame rates of up to 18 fps at full resolution. Thanks to the 1/1.8" sensor size, a wide selection of C-mount lenses is available for the GV-5880SE GigE Vision camera model.
| Item number |
|
|---|---|
| Name | GV-5880SE |
| Camera family | SE |
| Interface | Ethernet |
| Interface-Speed | 1.00 Gbps |
| Sensor type | CMOS |
| Sensor manufacturer | Sony |
| Frame rate @ resolution max. | 18.0 fps |
| Resolution (h x v) | 3088 x 2076 |
| Optical Area | 7.411 mm x 4.982 mm |
| Shutter | Rolling Shutter |
| Optical class | 1/1.8" |
| Resolution | 6.41 MPix |
| Pixel size | 2.40 μm |
| IP code | IP30 |
| Product Life Cycle | Series |
