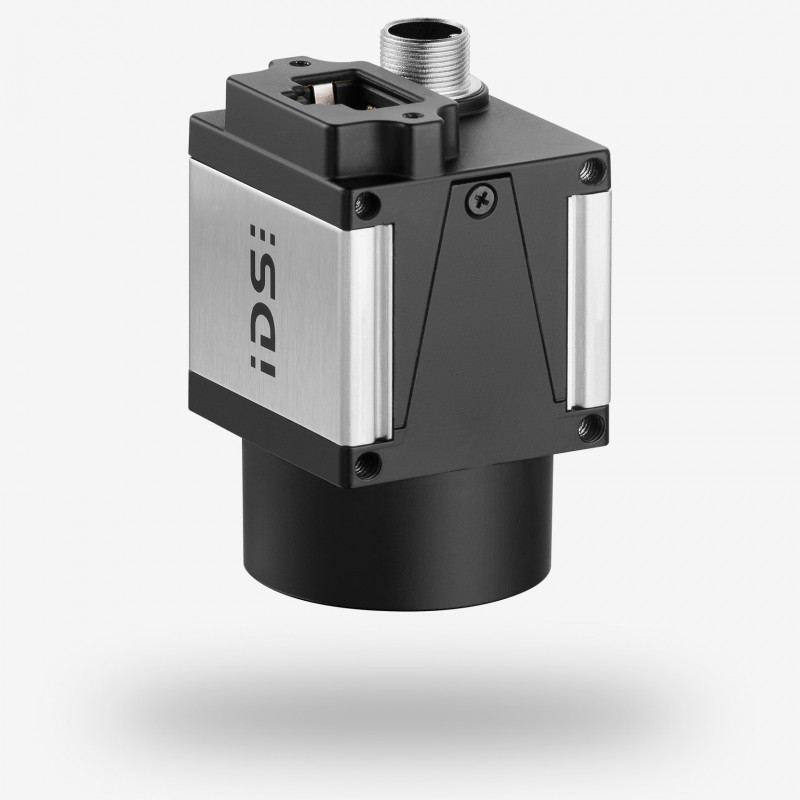

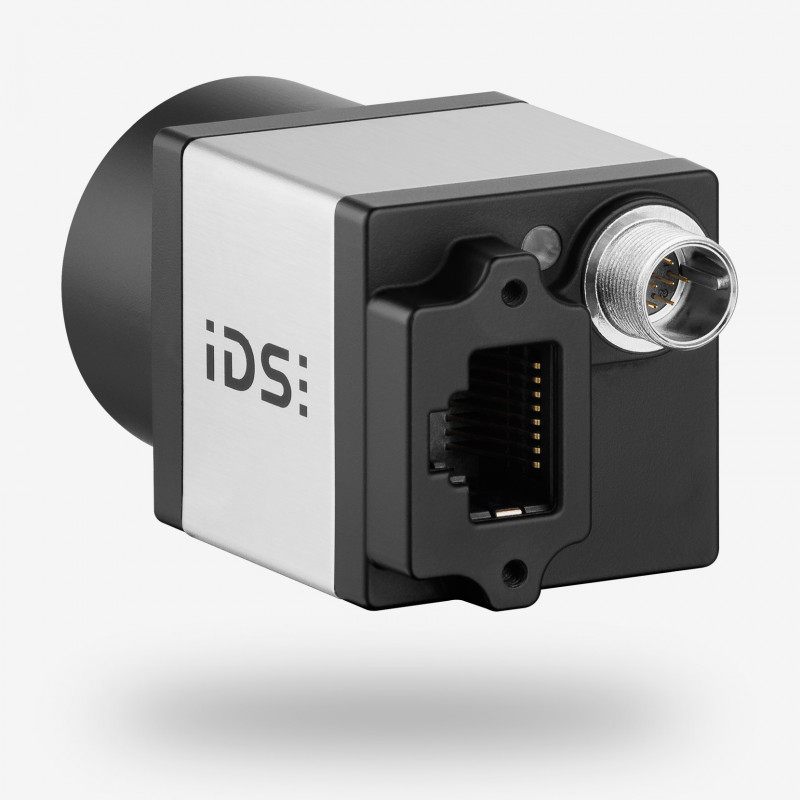

GV-5890CP
- Camera family
- CP
- Interface
- Ethernet
- Sensor type
- CMOS
- Frame / Line rate
- 10.0 fps
- Shutter
- Rolling Shutter
- Optical class
- 1/1.8"
- Resolution
- 12.00 MPix
- Mono / Color
- Mono / Color
- Data sheet 1
- GV-5890CP-C-HQ.pdf
- Data sheet 2
- GV-5890CP-M-GL.pdf
- 소비자가
- 별도문의
The GV-5890CP is equipped with the rolling shutter CMOS sensor IMX226. The 12.00 MPix sensor (4000 x 3000 px, pixel size 1.85 μm) from the Sony STARVIS series excels with extraordinary light sensitivity and low noise levels. At full resolution, it accelerates to a frame rate of 10.0 fps. Thanks to the STARVIS series BSI ("back-side-illumination") technology, the sensor is ideally suited for tasks that require a perfect result even in low light conditions.
It also shows its strengths in application fields such as traffic monitoring, microscopy and quality control. The 1/1.7" sensor size also allows to choose from a wide range of cost-effective lenses for the uEye CP cameras.
This GigE Vision camera is supported by IDS Vision Firmware 2.0 or higher.
| Item number |
|
|---|---|
| Name | GV-5890CP |
| Camera family | CP |
| Interface | Ethernet |
| Interface-Speed | 1.00 Gbps |
| Sensor type | CMOS |
| Sensor manufacturer | Sony |
| Frame rate @ resolution max. | 10.0 fps |
| Resolution (h x v) | 4000 x 3000 |
| Optical Area | 7.400 mm x 5.550 mm |
| Shutter | Rolling Shutter |
| Optical class | 1/1.8" |
| Resolution | 12.00 MPix |
| Pixel size | 1.85 μm |
| IP code | IP30 |
| Product Life Cycle | Series |
