U3-3002SE

Camera family
SE
Interface
USB3
Sensor type
CMOS
Frame / Line rate
32.0 fps
Shutter
Global Shutter
Optical class
1.1"
Resolution
12.29 MPix
Mono / Color
Mono / Color
Data sheet 1
U3-3002SE-C.pdf
Data sheet 2
U3-3002SE-M.pdf
소비자가
별도문의
uEye SE USB 3 5.0 Gbps, 1.1", Sony, 12.29 MPix, CMOS, 32.0 fps, IMX253, 4096 x 3000

?What a camera! The USB3 Vision industrial camera U3-3002SE with the large-format 1.1" CMOS sensor IMX253 delivers razor sharp, clear and noise-free 32.0 fps at full resolution (12.29 MPix, 4096 x 3000 px) via its USB interface. It meets the highest requirements for resolution, speed and image quality and impresses with its technical values such as sensitivity (quantum efficiency QE @ 533 nm = 61 %). The U3-3002SE is primarily used in classic machine vision applications where fast objects have to be captured or in microscopy where particularly high sensitivity is required. Its extremely low dark noise makes the camera also suitable for applications in biosciences.


IDS-typical special features - such as long-term exposure up to 44.0 s or the linescan mode for using the industrial camera as a line scan camera - also extend the application possibilities.

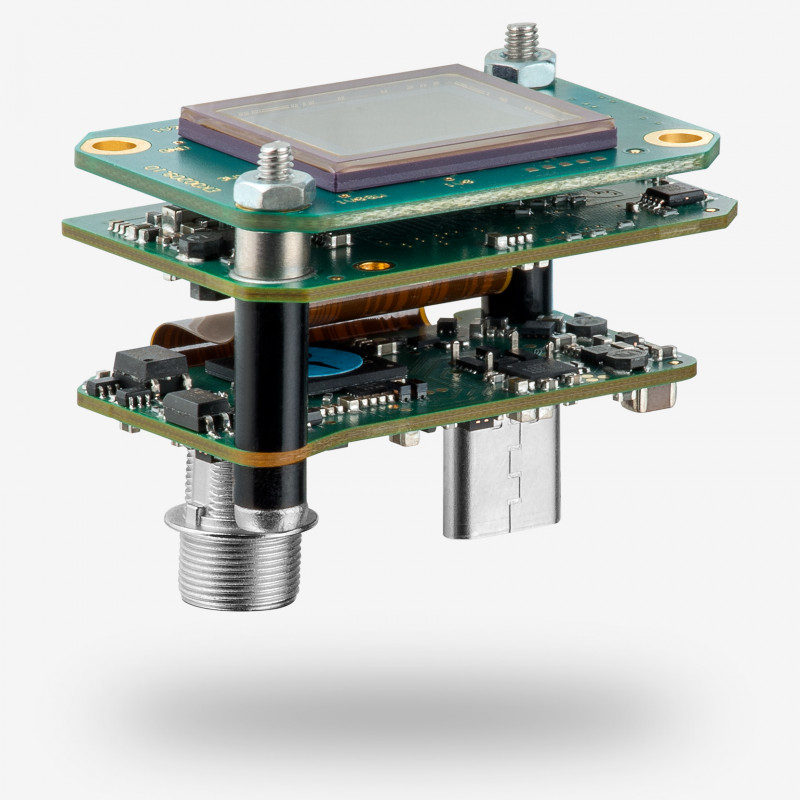

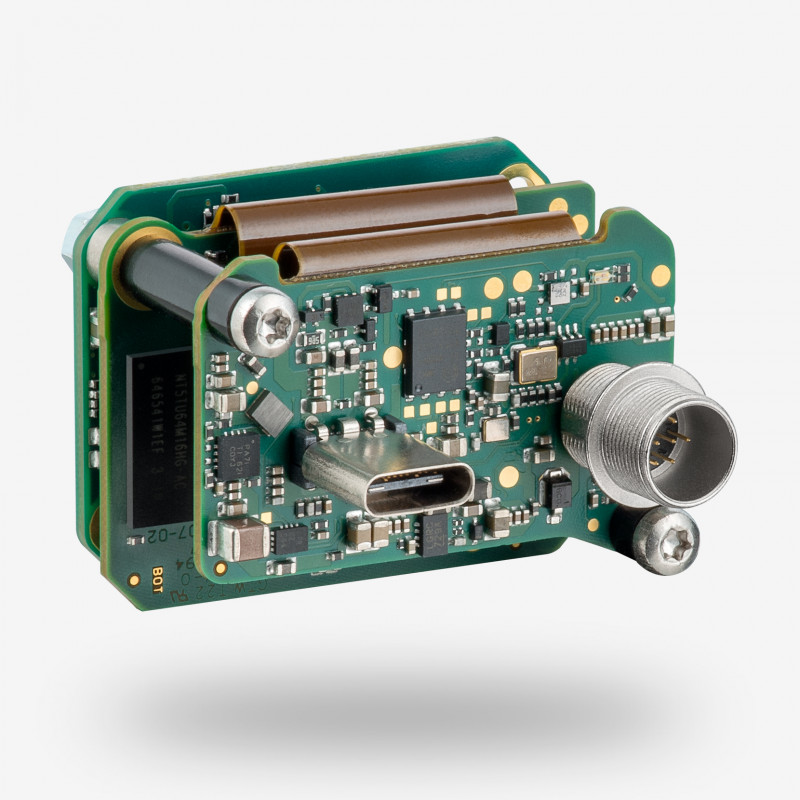

The U3-3002SE board level camera without lens holder is available in a colour or monochrome version.


This camera model is supported by IDS Vision firmware 2.0 and higher.




Item number
  • U3-3002SE-C: AB02371
  • U3-3002SE-M: AB02372
Name U3-3002SE
Camera family SE
Interface USB 3
Interface-Speed 5.00 Gbps
Sensor type CMOS
Sensor manufacturer Sony
Frame rate @ resolution max. 32.0 fps
Resolution (h x v) 4096 x 3000
Optical Area 14.131 mm x 10.350 mm
Shutter Global Shutter
Optical class 1.1"
Resolution 12.29 MPix
Pixel size 3.45 μm
IP code No
Product Life Cycle Series
