U3-3060CP
- Camera family
- CP
- Interface
- USB3
- Sensor type
- CMOS
- Frame / Line rate
- 161 fps
- Shutter
- Global Shutter
- Optical class
- 1/1.2"
- Resolution
- 2.30 MPix
- Mono / Color
- Mono / Color
- Data sheet 1
- U3-3060CP-C-HQ_Rev_2.pdf
- Data sheet 2
- U3-3060CP-M-GL_Rev_2.pdf
- 소비자가
- 별도문의

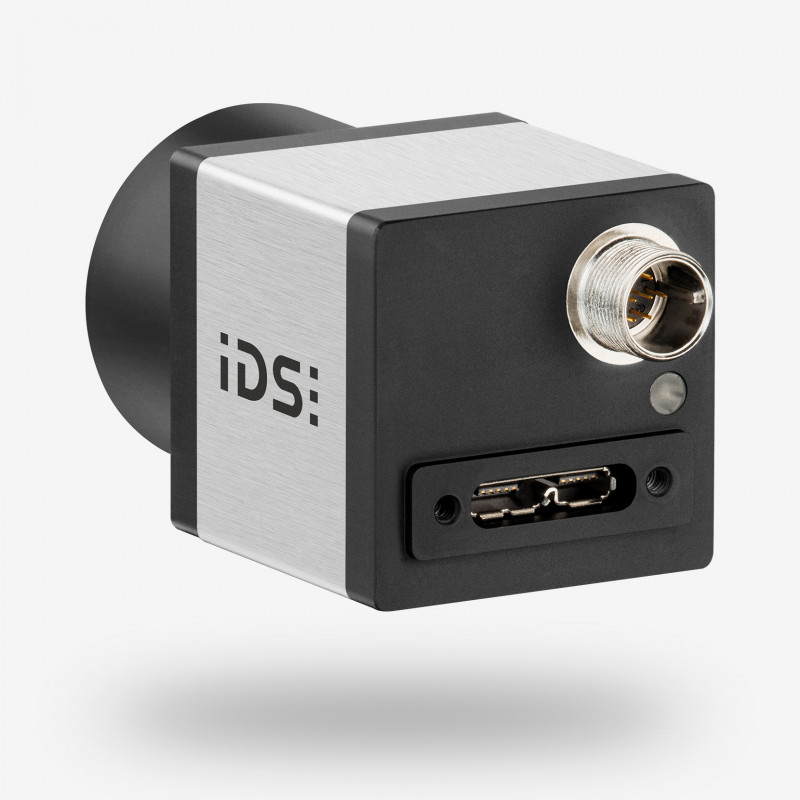

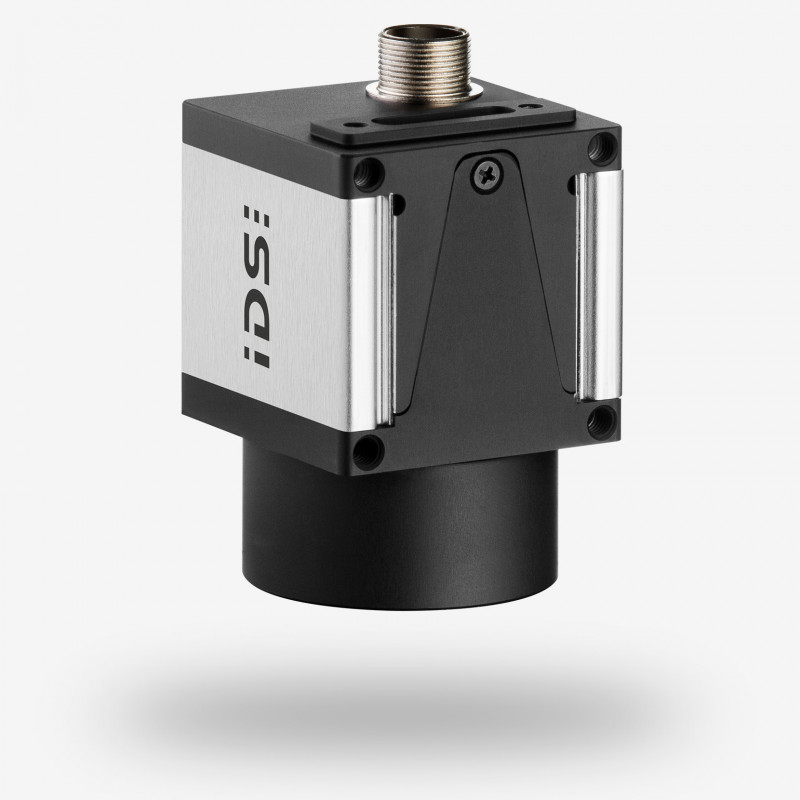

?The U3-3060CP with the 2.30 MPix Sony IMX174 (1920 x 1200 px) sensor sets new standards in terms of light sensitivity, dynamic range and colour reproduction. The USB 3 industrial camera provides excellent image quality and is extremely low-noise - at a frame rate of 161 fps. With its 5.86 μm pixels, the global shutter CMOS sensor of the first Pregius generation from Sony is predestined for applications that are supposed to deliver perfect results even in low light conditions, as well as in automation, quality assurance and robotics.
Additional camera features include long exposure up to 60.0 s and line scan mode.
The U3-3060CP is available in both monochrome and colour variants.
This camera model is supported by IDS Vision firmware 2.0 and higher.
| Item number |
|
|---|---|
| Name | U3-3060CP |
| Camera family | CP |
| Interface | USB 3 |
| Interface-Speed | 5.00 Gbps |
| Sensor type | CMOS |
| Sensor manufacturer | Sony |
| Frame rate @ resolution max. | 161 fps |
| Resolution (h x v) | 1920 x 1200 |
| Optical Area | 11.251 mm x 7.032 mm |
| Shutter | Global Shutter |
| Optical class | 1/1.2" |
| Resolution | 2.30 MPix |
| Pixel size | 5.86 μm |
| IP code | IP30 |
| Product Life Cycle | Series |
