U3-3070CP

Camera family
CP
Interface
USB3
Sensor type
CMOS
Frame / Line rate
114 fps
Shutter
Global Shutter
Optical class
1/1.8"
Resolution
3.15 MPix
Mono / Color
Mono / Color
Data sheet 1
U3-3070CP-C-HQ_Rev_2.pdf
Data sheet 2
U3-3070CP-M-GL_Rev_2.pdf
소비자가
별도문의

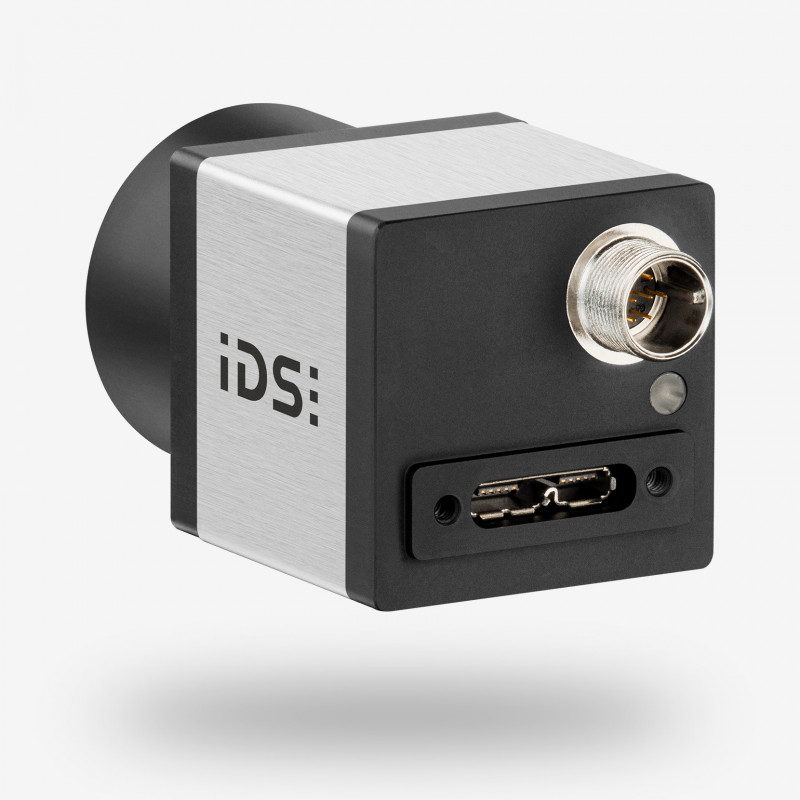

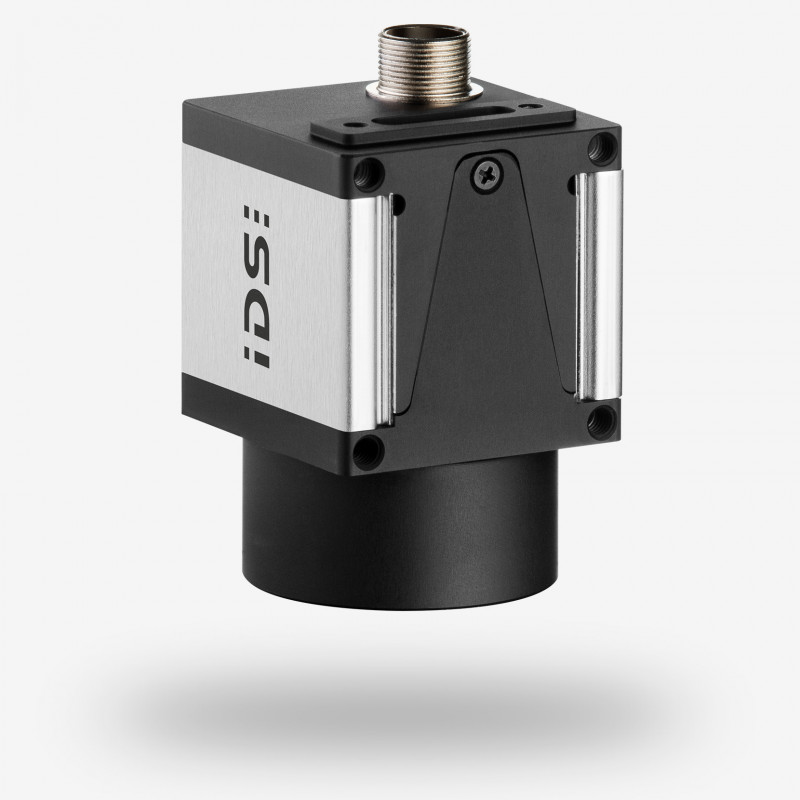

uEye CP USB 3 5.0 Gbps, 1/1.8", Sony, 3.15 MPix, CMOS, 114.0 fps, IMX252, 2048 x 1536

?The Sony Pregius IMX252 is together with its little brother IMX265 probably the best CMOS image sensor in the 3 MP class. The USB3 Vision industrial camera U3-3070CP with the 1/1.8" global shutter sensor transmits its resolution of 3.15 MPix (2048 x 1536 px) with a frame rate of 114 fps via the USB interface. In terms of dynamic range, sensitivity and linearity, the camera is second to none and inspires industrial customers in mechanical engineering, metrology and medical technology.


Special functions include 90.0 s long exposure and the linescan mode for using the area scan camera as a cost-effective line scan camera alternative.


The U3-3070CP is available in both monochrome and colour variants.


This camera model is supported by IDS Vision firmware 2.0 and higher.




Item number
  • U3-3070CP-M-GL Rev.2: AB02783
  • U3-3070CP-C-HQ Rev.2: AB02782
Name U3-3070CP
Camera family CP
Interface USB 3
Interface-Speed 5.00 Gbps
Sensor type CMOS
Sensor manufacturer Sony
Frame rate @ resolution max. 114 fps
Resolution (h x v) 2048 x 1536
Optical Area 7.066 mm x 5.299 mm
Shutter Global Shutter
Optical class 1/1.8"
Resolution 3.15 MPix
Pixel size 3.45 μm
IP code IP30
Product Life Cycle Series
