U3-3090SE
- Camera family
- SE
- Interface
- USB3
- Sensor type
- CMOS
- Frame / Line rate
- 45.0 fps
- Shutter
- Global Shutter
- Optical class
- 1"
- Resolution
- 8.85 MPix
- Mono / Color
- Mono / Color
- Data sheet 1
- U3-3090SE-C-HQ.pdf
- Data sheet 2
- U3-3090SE-M-GL.pdf
- 소비자가
- 별도문의

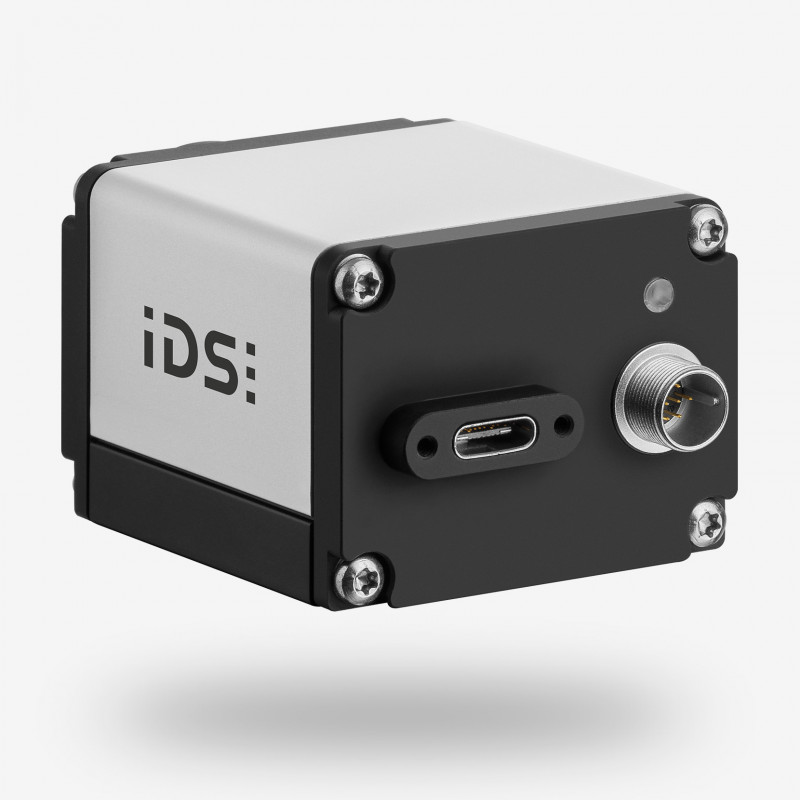

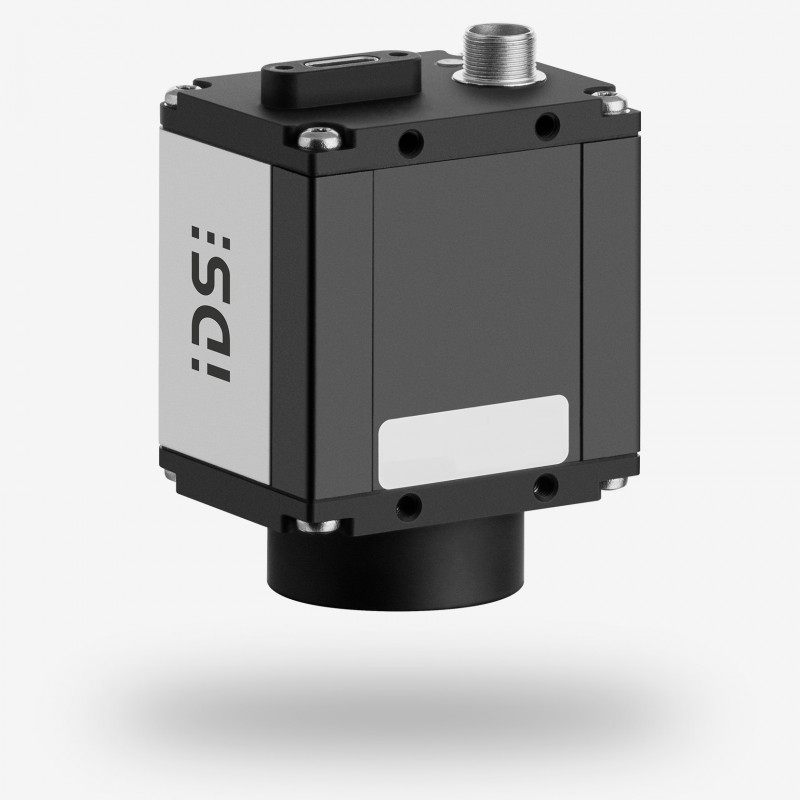

?The USB3 Vision industrial camera U3-3090SE with integrated Sony IMX255 global shutter CMOS sensor meets all industrial requirements: high resolution, high frame rates, noise-free image reproduction. Readout noise and dark current rank among the lowest values in the entire sensor market. With its sensitivity in the near infrared range, this camera offers a wide variety of applications - with a resolution of 8.85 MPix (4096 x 2160 px) at 45.0 fps.
The combination of resolution and high dynamic range together with the special functions long-term exposure up to 90.0 s and line scan mode make the U3-3090SE a powerful all-rounder in industrial image processing.
The U3-3090SE is available in both monochrome and colour variants.
This camera model is supported by IDS Vision firmware 2.0 and higher.
Item number |
|
---|---|
Name | U3-3090SE |
Camera family | SE |
Interface | USB 3 |
Interface-Speed | 5.00 Gbps |
Sensor type | CMOS |
Sensor manufacturer | Sony |
Frame rate @ resolution max. | 45.0 fps |
Resolution (h x v) | 4096 x 2160 |
Optical Area | 14.131 mm x 7.452 mm |
Shutter | Global Shutter |
Optical class | 1" |
Resolution | 8.85 MPix |
Pixel size | 3.45 μm |
IP code | IP30 |
Product Life Cycle | Series |
