U3-3261SE
- Camera family
- SE
- Interface
- USB3
- Sensor type
- CMOS
- Frame / Line rate
- 47.0 fps
- Shutter
- Global Shutter
- Optical class
- 1/1.2"
- Resolution
- 2.30 MPix
- Mono / Color
- Mono / Color
- Data sheet 1
- U3-3261SE-C-HQ.pdf
- Data sheet 2
- U3-3261SE-M-GL.pdf
- 소비자가
- 별도문의
?The U3-3261SE with the cost-effective 2.30 MPix Sony IMX249 (1920 x 1200 px) sensor sets new standards in terms of light sensitivity, dynamic range and colour reproduction - just like its "big brother" IMX174. The USB 3 industrial camera provides excellent image quality and is extremely low-noise - at a frame rate of 47.0 fps. With its 5.86 μm pixels, the global shutter CMOS sensor of the first Pregius generation from Sony is predestined for applications that are supposed to deliver perfect results even in low light conditions, as well as in automation, quality assurance and robotics.
Additional camera features include long exposure up to 90.0 s and line scan mode.

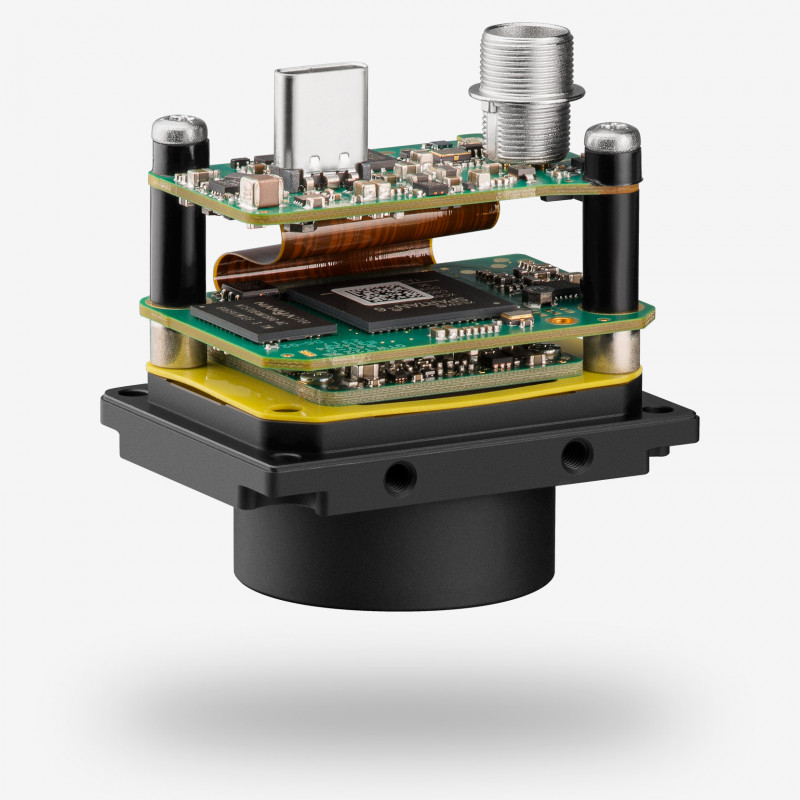

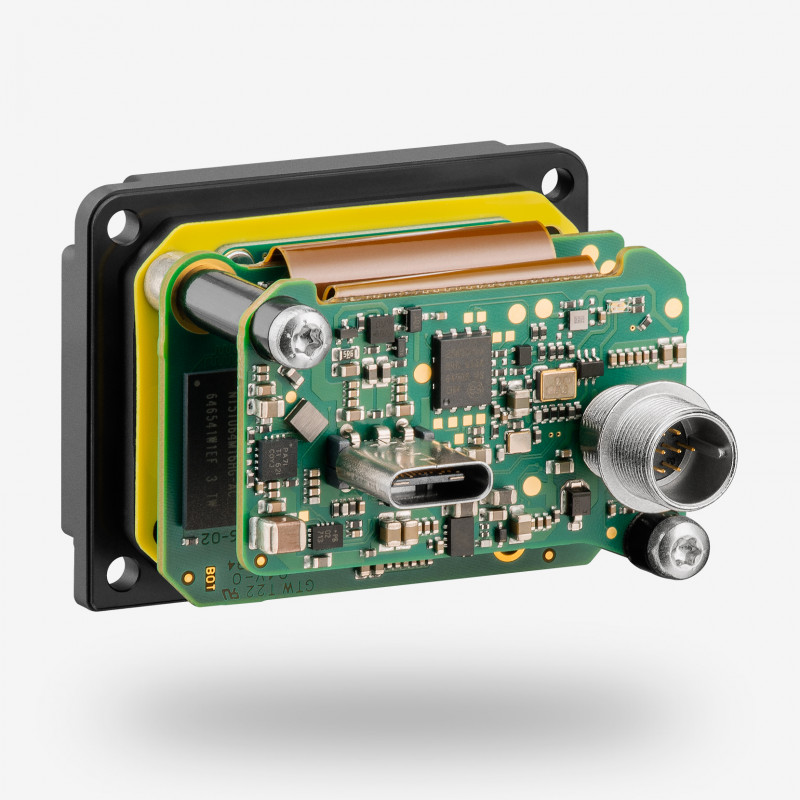

The U3-3261SE board level camera with C-mount lens holder is available in a colour or monochrome version.
This camera model is supported by IDS Vision firmware 2.0 and higher.
| Item number |
|
|---|---|
| Name | U3-3261SE |
| Camera family | SE |
| Interface | USB 3 |
| Interface-Speed | 5.00 Gbps |
| Sensor type | CMOS |
| Sensor manufacturer | Sony |
| Frame rate @ resolution max. | 47.0 fps |
| Resolution (h x v) | 1920 x 1200 |
| Optical Area | 11.251 mm x 7.032 mm |
| Shutter | Global Shutter |
| Optical class | 1/1.2" |
| Resolution | 2.30 MPix |
| Pixel size | 5.86 μm |
| IP code | No |
| Product Life Cycle | Series |
