UI-1240ML

Camera family
ML
Interface
USB2
Sensor type
CMOS
Frame / Line rate
25.8 fps
Shutter
Global Shutter, Global Start Shutter, Rolling Shutter
Optical class
1/1.8"
Resolution
1.31 MPix
Mono / Color
Mono / Color
Data sheet 1
UI-1240ML-NIR-GL.pdf
Data sheet 2
UI-1240ML-M-GL.pdf
Data sheet 3
UI-1240ML-C-HQ.pdf
소비자가
별도문의
uEye ML USB 2 0.5 Gbps, 1/1.8", e2v, 1.31 MPix, CMOS, 25.8 fps, EV76C560, 1280 x 1024

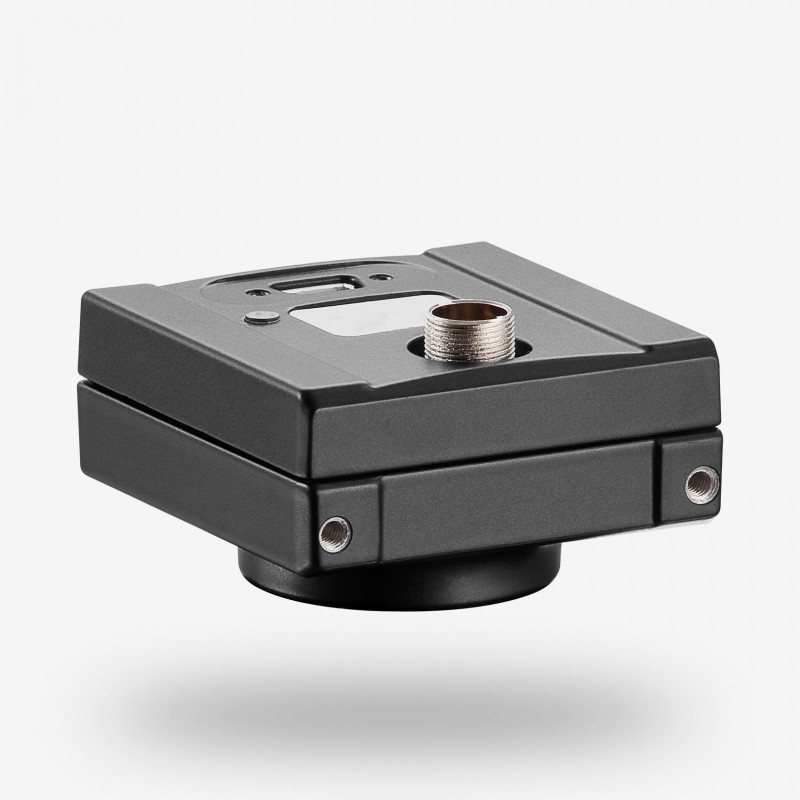

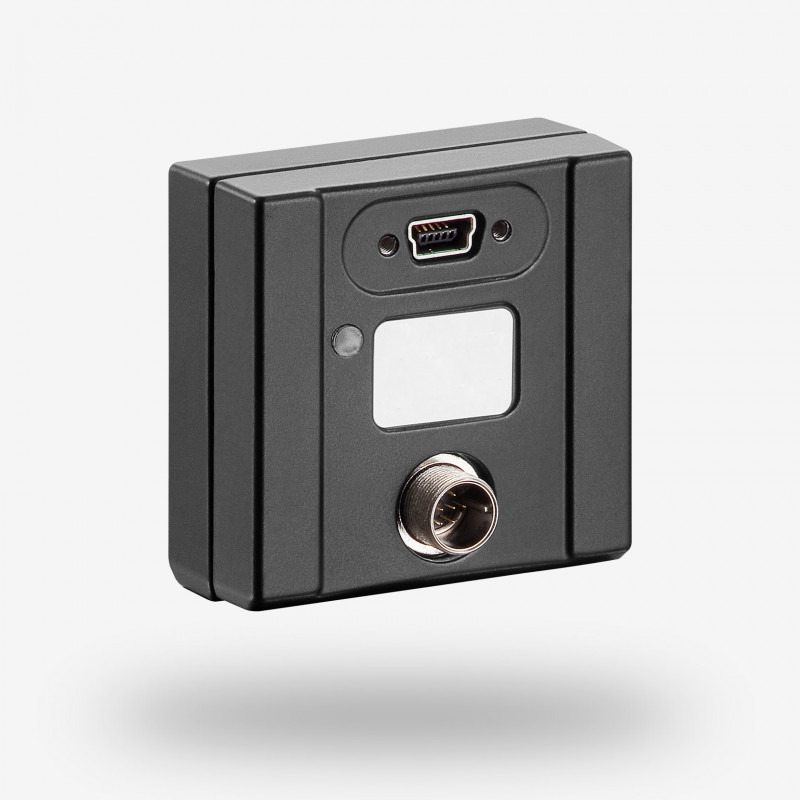

The UI-1240ML is a particularly powerful industrial camera with the e2v 1.3 megapixel CMOS sensor. This is one of the most sensitive sensors in the IDS product portfolio and it is available in monochrome, color (EV76C560ABT/EV76C560ACT), and NIR versions (EV76C661ABT). Besides its outstanding sensitivity to light in CCD quality, the camera also has a range of other distinctive features: For example, the sensor provides two global shutter and two rolling shutter modes, which you can switch between while the camera is in operation. This makes the sensor extremely flexible if requirements or ambient conditions change. There are also up to four areas of interest (AOI).


You can use these either to check several features simultaneously or to capture AOIs in a sequence of exposures using a wide range of different parameters.


Detailed information on the e2v CMOS sensors EV76C560/EV76C661 is available here.


Extension ring CS-mount to C-mount

The CS-mount version comes with an extension ring which enlarges the flange back distance by 5 mm. This allows use of C-mount lenses with the camera.




Item number
  • UI-1240ML-C-HQ: AB00182
  • UI-1240ML-M-GL: AB00183
  • UI-1240ML-NIR-GL: AB00184
Name UI-1240ML
Camera family ML
Interface USB 2
Interface-Speed 0.47 Gbps
Sensor type CMOS
Sensor manufacturer e2v
Frame rate @ resolution max. 25.8 fps
Resolution (h x v) 1280 x 1024
Optical Area 6.784 mm x 5.427 mm
Shutter Global Shutter, Global Start Shutter, Rolling Shutter
Optical class 1/1.8"
Resolution 1.31 MPix
Pixel size 5.30 μm
IP code IP30
Product Life Cycle Series
