U3-3280CP
- Camera family
- CP
- Interface
- USB3
- Sensor type
- CMOS
- Frame / Line rate
- 36.0 fps
- Shutter
- Global Shutter
- Optical class
- 2/3"
- Resolution
- 5.01 MPix
- Mono / Color
- Mono / Color
- Data sheet 1
- U3-3280CP-C-HQ_Rev_2.pdf
- Data sheet 2
- U3-3280CP-M-GL_Rev_2.pdf
- 소비자가
- 별도문의
uEye CP
USB 3 5.0 Gbps, 2/3", Sony, 5.01 MPix, CMOS, 36.0 fps, IMX264, 2448 x 2048

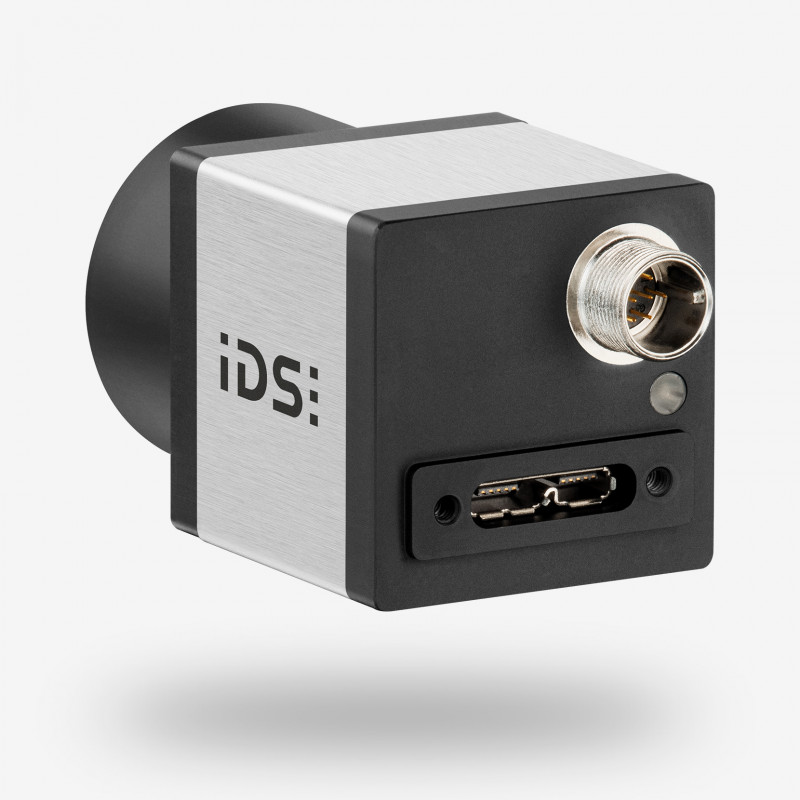

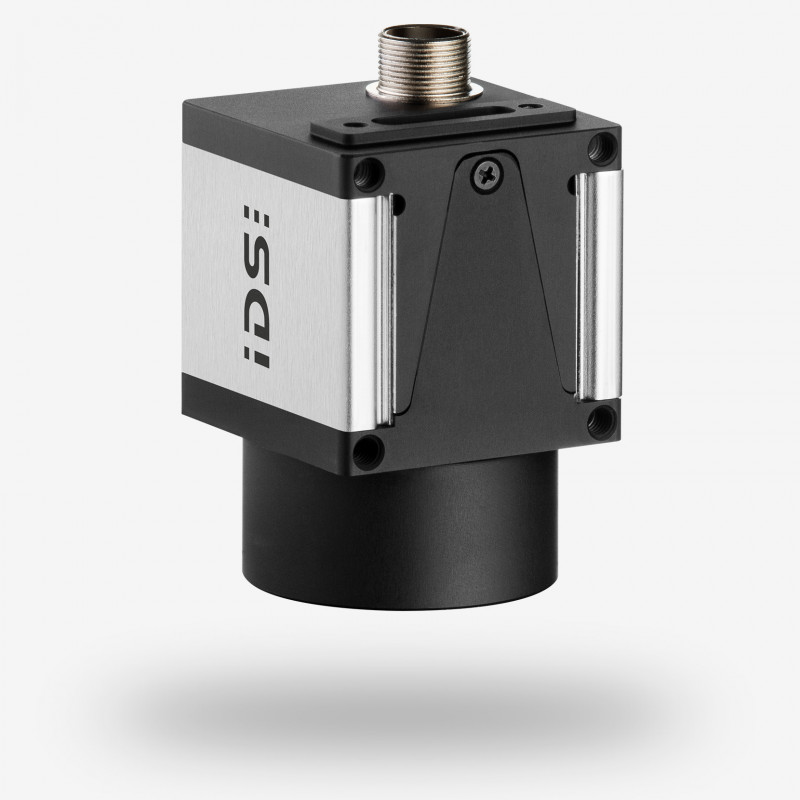

?The USB3 Vision industrial camera U3-3280CP with the CMOS sensor IMX264 from Sony sets new standards in terms of light sensitivity, dynamic range and colour reproduction. The global shutter sensor from the Pregius series excels with a high resolution of 5.01 MPix (2448 x 2048 px), which is perfect for applications in low light conditions as well as in microscopy. The USB3 Vision industrial camera provides excellent image quality and is extremely low-noise - at a frame rate of 36.0 fps.
Software features implemented by IDS: Linescan mode, long-time exposure up to90.0 s.
The U3-3280CP is available in both monochrome and colour variants.
This camera model is supported by IDS Vision firmware 2.0 and higher.
| Item number |
|
|---|---|
| Name | U3-3280CP |
| Camera family | CP |
| Interface | USB 3 |
| Interface-Speed | 5.00 Gbps |
| Sensor type | CMOS |
| Sensor manufacturer | Sony |
| Frame rate @ resolution max. | 36.0 fps |
| Resolution (h x v) | 2448 x 2048 |
| Optical Area | 8.446 mm x 7.066 mm |
| Shutter | Global Shutter |
| Optical class | 2/3" |
| Resolution | 5.01 MPix |
| Pixel size | 3.45 μm |
| IP code | IP30 |
| Product Life Cycle | Series |
