UI-1250ML

Camera family
ML
Interface
USB3
Sensor type
CMOS
Frame / Line rate
17.6 fps
Shutter
Global Shutter, Global Start Shutter, Rolling Shutter
Optical class
1/1.8"
Resolution
1.92 MPix
Mono / Color
Mono / Color
Data sheet 1
UI-1250ML-M-GL.pdf
Data sheet 2
UI-1250ML-C-HQ.pdf
소비자가
별도문의
uEye ML USB 2 0.5 Gbps, 1/1.8", e2v, 1.92 MPix, CMOS, 17.6 fps, EV76C570, 1600 x 1200

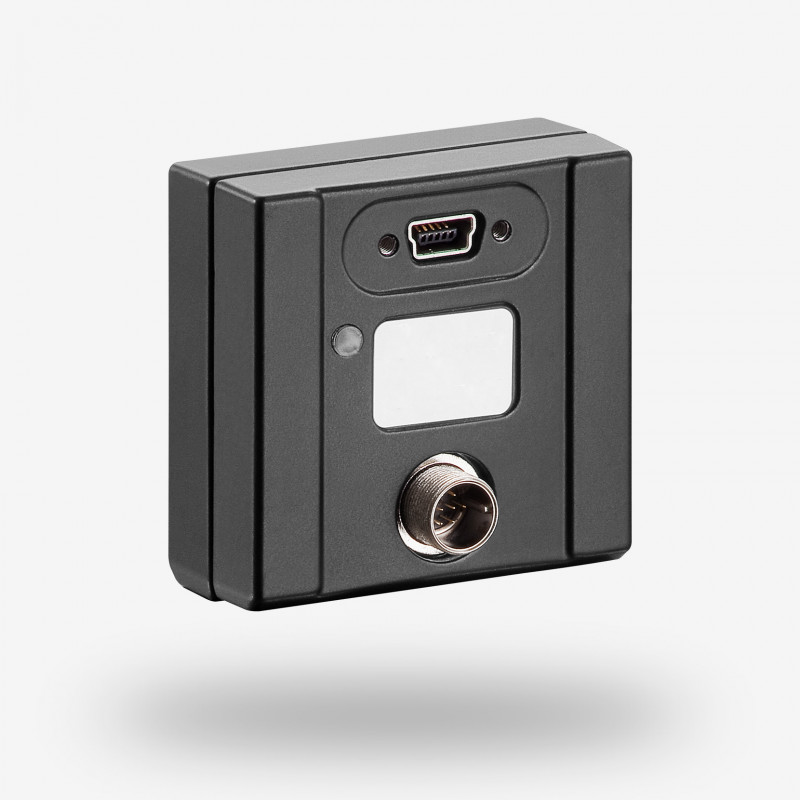

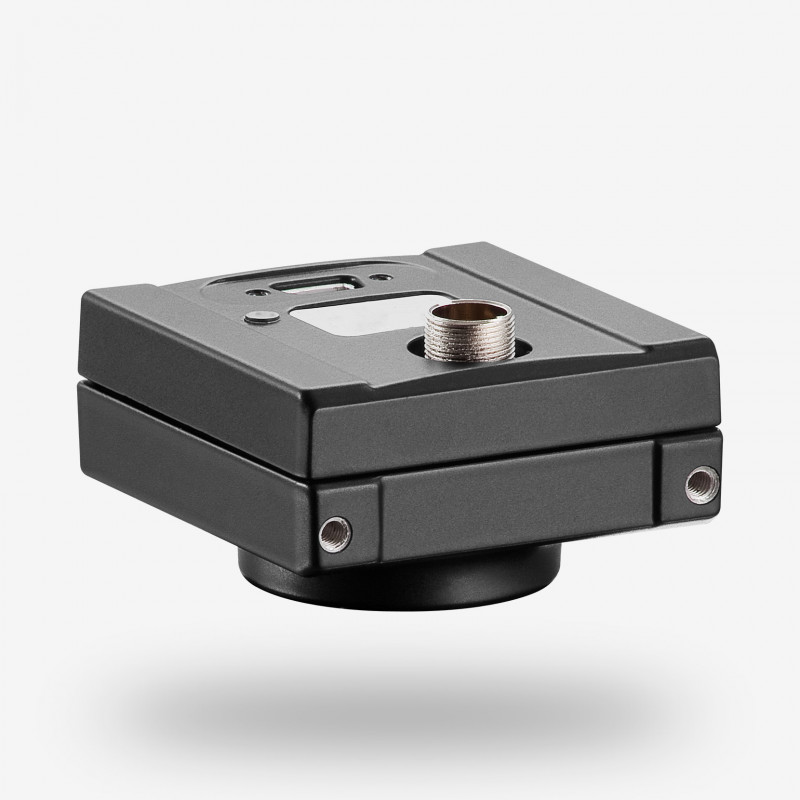

The UI-1250ML with the e2v CMOS sensor with 2 megapixel resolution is an especially high-performance and versatile industrial camera (EV76C570). It has one of the most sensitive sensors in the IDS product portfolio and it is available in monochrome and color versions. Besides its outstanding sensitivity to light in CCD quality, the camera also has a range of other distinctive features: The sensor allows you to switch between various shutter modes, which allow you to capture sharp images of moving objects or extremely low-noise, high-contrast images. There are also up to four areas of interest (AOI).


You can use these either to check several features simultaneously or to capture AOIs in a sequence of exposures using a wide range of different parameters.


Detailed information on the EV76C570 sensor is available here.


Extension ring CS-mount to C-mount

The CS-mount version comes with an extension ring which enlarges the flange back distance by 5 mm. This allows use of C-mount lenses with the camera.




Item number
  • UI-1250ML-C-HQ: AB00330
  • UI-1250ML-M-GL: AB00331
Name UI-1250ML
Camera family ML
Interface USB 2
Interface-Speed 0.47 Gbps
Sensor type CMOS
Sensor manufacturer e2v
Frame rate @ resolution max. 17.6 fps
Resolution (h x v) 1600 x 1200
Optical Area 7.200 mm x 5.400 mm
Shutter Global Shutter, Global Start Shutter, Rolling Shutter
Optical class 1/1.8"
Resolution 1.92 MPix
Pixel size 4.50 μm
IP code IP30
Product Life Cycle Series
