UI-1480LE Rev. 2
- Camera family
- LE
- Interface
- USB3
- Sensor type
- CMOS
- Frame / Line rate
- 6.3 fps
- Shutter
- Global Start Shutter, Rolling Shutter
- Optical class
- 1/2.5"
- Resolution
- 4.92 MPix
- Mono / Color
- Mono / Color
- Data sheet 1
- UI-1480LE-M-GL_Rev_2.pdf
- 소비자가
- 별도문의

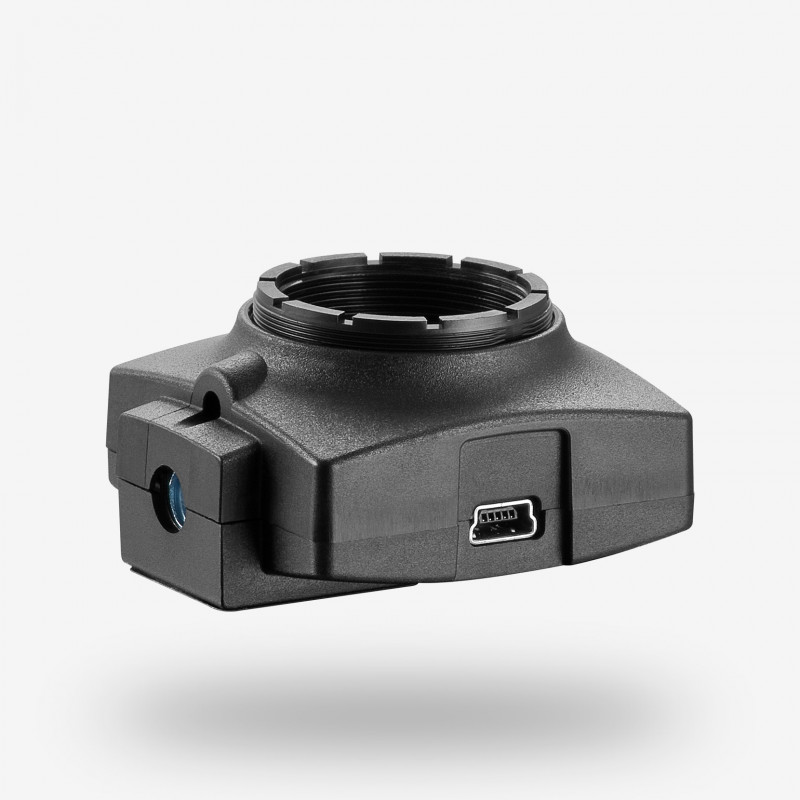

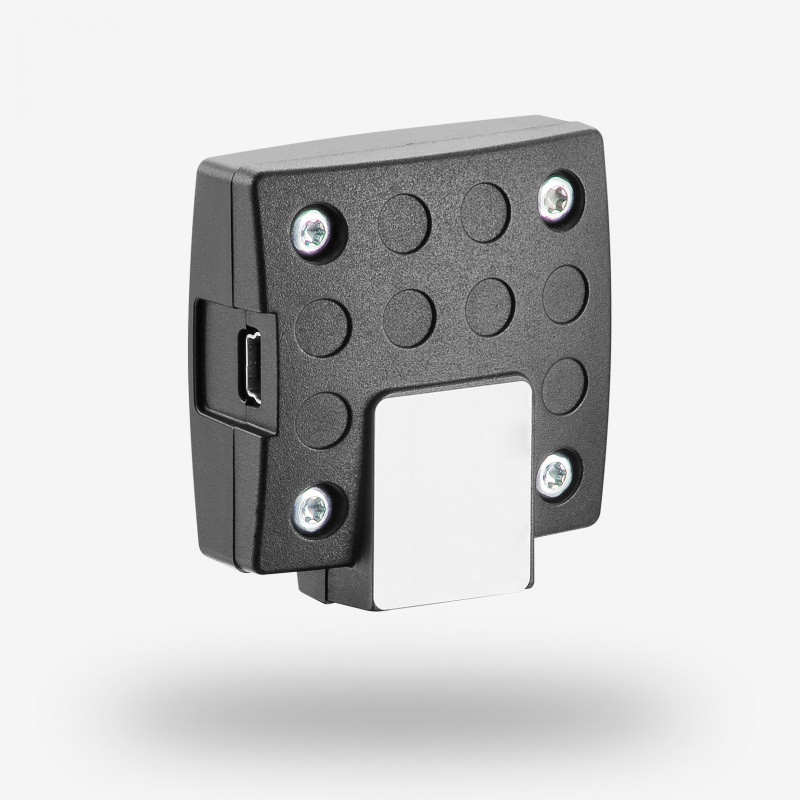

uEye LE
USB 2 0.5 Gbps, 1/2.5", ON Semiconductor, 4.92 MPix, CMOS, 6.3 fps, MT9P031, 2560 x 1920
The UI-1480LE Rev. 2 is fitted with the 4.92 MPix CMOS sensor (MT9P031STM). About 1/2.5" in size, the sensor delivers a resolution of 2560 x 1920 as well as rolling and global start shutter features. The sensor is extraordinarily sensitive and is a real megapixel CCD replacement. The various shutter modes provide ideal parameters for every application to produce sharp, low-noise images.
This camera model will be supported beginning with IDS Software Suite 4.92.
Extension ring CS-mount to C-mount
The CS-mount version comes with an extension ring which enlarges the flange back distance by 5 mm. This allows use of C-mount lenses with the camera.
| Item number |
|
|---|---|
| Name | UI-1480LE Rev. 2 |
| Camera family | LE |
| Interface | USB 2 |
| Interface-Speed | 0.47 Gbps |
| Sensor type | CMOS |
| Sensor manufacturer | ON Semiconductor |
| Frame rate @ resolution max. | 6.3 fps |
| Resolution (h x v) | 2560 x 1920 |
| Optical Area | 5.632 mm x 4.224 mm |
| Shutter | Global Start Shutter, Rolling Shutter |
| Optical class | 1/2.5" |
| Resolution | 4.92 MPix |
| Pixel size | 2.20 μm |
| IP code | IP30 |
| Product Life Cycle | Series |
