UI-1481LE Rev. 2

Camera family
LE
Interface
USB2
Sensor type
CMOS
Frame / Line rate
6.3 fps
Shutter
Global Start Shutter, Rolling Shutter
Optical class
1/2.5"
Resolution
4.92 MPix
Mono / Color
Mono / Color
Data sheet 1
UI-1481LE-M-GL_Rev_2.pdf
소비자가
별도문의
uEye LE USB 2 0.5 Gbps, 1/2.5", ON Semiconductor, 4.92 MPix, CMOS, 6.3 fps, MT9P031, 2560 x 1920

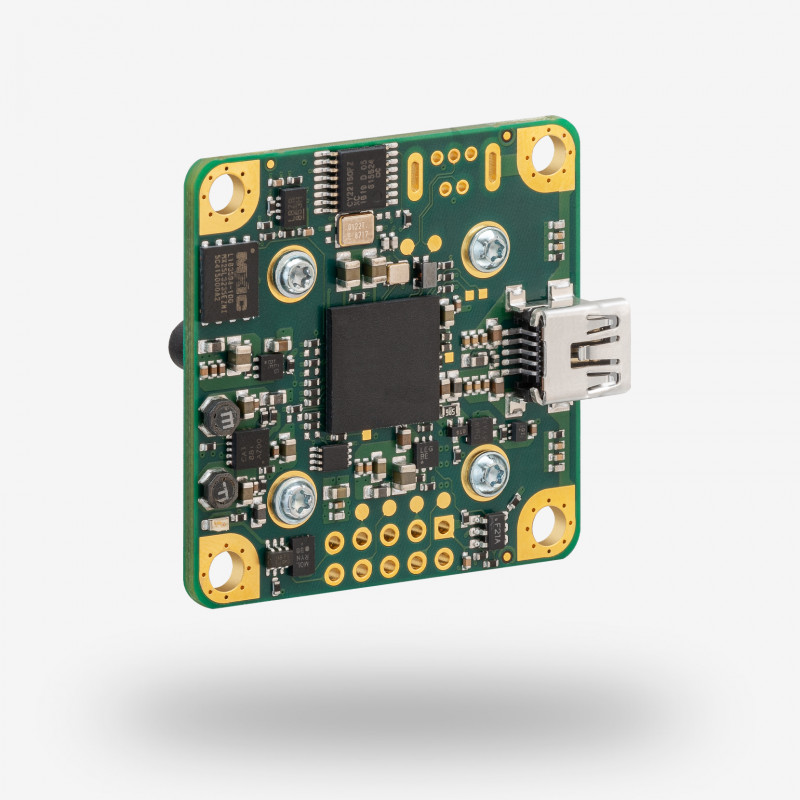

The UI-1481LE Rev. 2 is fitted with the 4.92 MPix CMOS sensor (MT9P031STM). About half an inch in size, the sensor delivers a resolution of 2560 x 1920 pixels as well as rolling and global start shutter features. The sensor is extraordinarily sensitive and is a real megapixel CCD replacement.


The various shutter modes provide ideal parameters for every application to produce sharp, low-noise images.


Note: This USB 2.0 Rev. 2 camera works reliably on fast USB 3 ports.




Item number
  • AB02625
Name UI-1481LE Rev. 2
Camera family LE
Interface USB 2
Interface-Speed 0.47 Gbps
Sensor type CMOS
Sensor manufacturer ON Semiconductor
Frame rate @ resolution max. 6.3 fps
Resolution (h x v) 2560 x 1920
Optical Area 5.632 mm x 4.224 mm
Shutter Global Start Shutter, Rolling Shutter
Optical class 1/2.5"
Resolution 4.92 MPix
Pixel size 2.20 μm
IP code No
Product Life Cycle Series
