UI-1581LE

Camera family
LE
Interface
USB2
Sensor type
CMOS
Frame / Line rate
6.3 fps
Shutter
Global Start Shutter, Rolling Shutter
Optical class
1/2.5"
Resolution
4.92 MPix
Mono / Color
Mono / Color
Data sheet 1
UI-1582LE-C_1.pdf
소비자가
별도문의
uEye LE USB 2 0.5 Gbps, 1/2.5", ON Semiconductor, 4.92 MPix, CMOS, 6.3 fps, MT9P006, 2560 x 1920

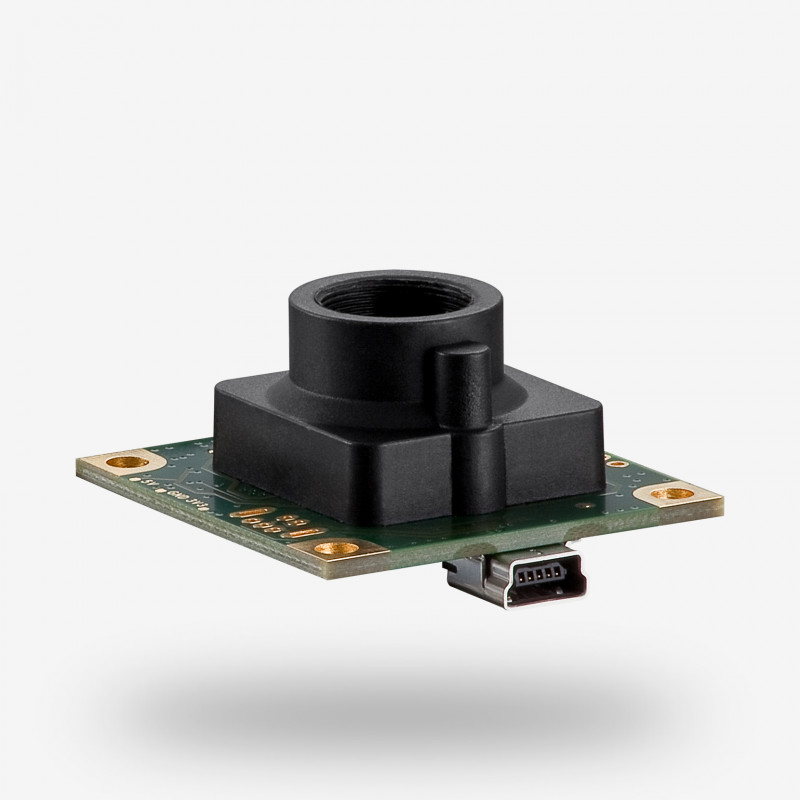

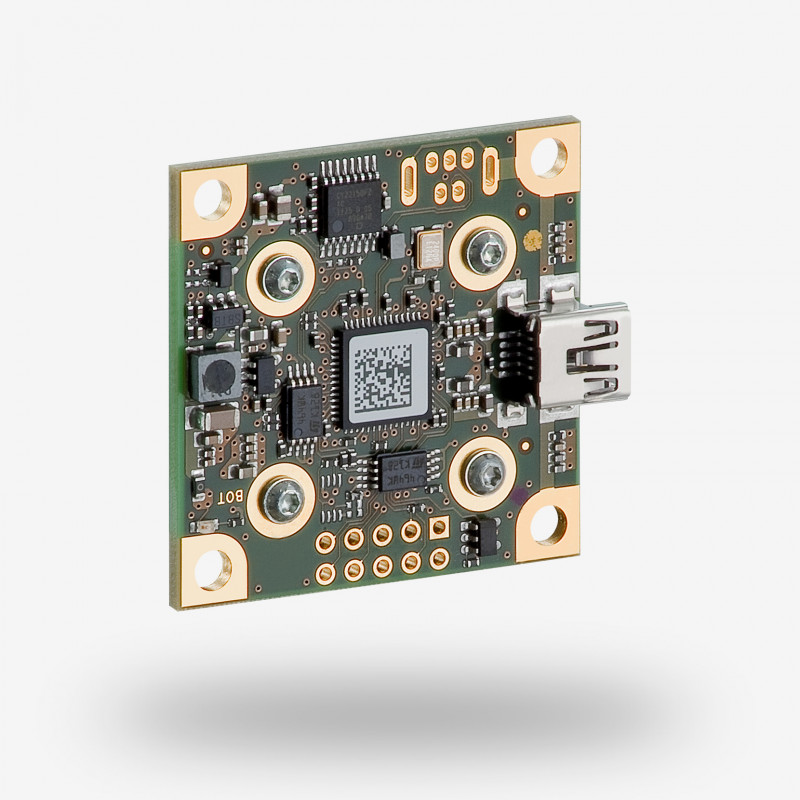

The UI-1581LE is fitted with the 5 megapixel CMOS sensor (MT9P006STC - color version) from ON Semiconductor. About half an inch in size, the sensor delivers a resolution of 2560 x 1920 pixels as well as rolling and global start shutter features. Thanks to the innovative A-Pix™ pixel technology, the sensor is extremely sensitive to light, which makes it an affordable alternative to many CCD sensors currently available on the market. This also makes the camera particularly suitable for applications that require maximum precision in color rendering and crystal clear image quality.


The A-Pix™ pixel technology is based on the gathering of light by a lightguide, which directs the gathered incident light from the color filter to the surface of the photo diode. Structure and process improvements in pixel technology have increased the sensitivity of the sensor in the red and green range in particular by up to 30% compared to the previous version of the sensor.


Monochrome version: UI-1481LE Rev. 2




Item number
  • AB00149
Name UI-1581LE
Camera family LE
Interface USB 2
Interface-Speed 0.47 Gbps
Sensor type CMOS
Sensor manufacturer ON Semiconductor
Frame rate @ resolution max. 6.3 fps
Resolution (h x v) 2560 x 1920
Optical Area 5.632 mm x 4.224 mm
Shutter Global Start Shutter, Rolling Shutter
Optical class 1/2.5"
Resolution 4.92 MPix
Pixel size 2.20 μm
IP code No
Product Life Cycle Series
