U3-3292SE
- Camera family
- SE
- Interface
- USB3
- Sensor type
- CMOS
- Frame / Line rate
- 33.0 fps
- Shutter
- Global Shutter
- Optical class
- 1"
- Resolution
- 8.85 MPix
- Mono / Color
- Mono / Color
- Data sheet 1
- U3-3292SE-C.pdf
- Data sheet 2
- U3-3292SE-M.pdf
- 소비자가
- 별도문의
The USB3 Vision industrial camera U3-3292SE with integrated Sony IMX267 global shutter CMOS sensor meets all industrial requirements: high resolution, high frame rates, noise-free image reproduction. Readout noise and dark current rank among the lowest values in the entire sensor market. With its sensitivity in the near infrared range, this camera offers a wide variety of applications - with a resolution of 8.85 MPix (4096 x 2160 px) at 33.0 fps. It compensates for the slightly lower frame rate - compared to cameras with the "big brother" IMX255 - with its attractive price.
The combination of resolution and high dynamic range together with the special functions long-term exposure up to 90.0 s and line scan mode make the U3-3292SE a powerful all-rounder in industrial image processing.

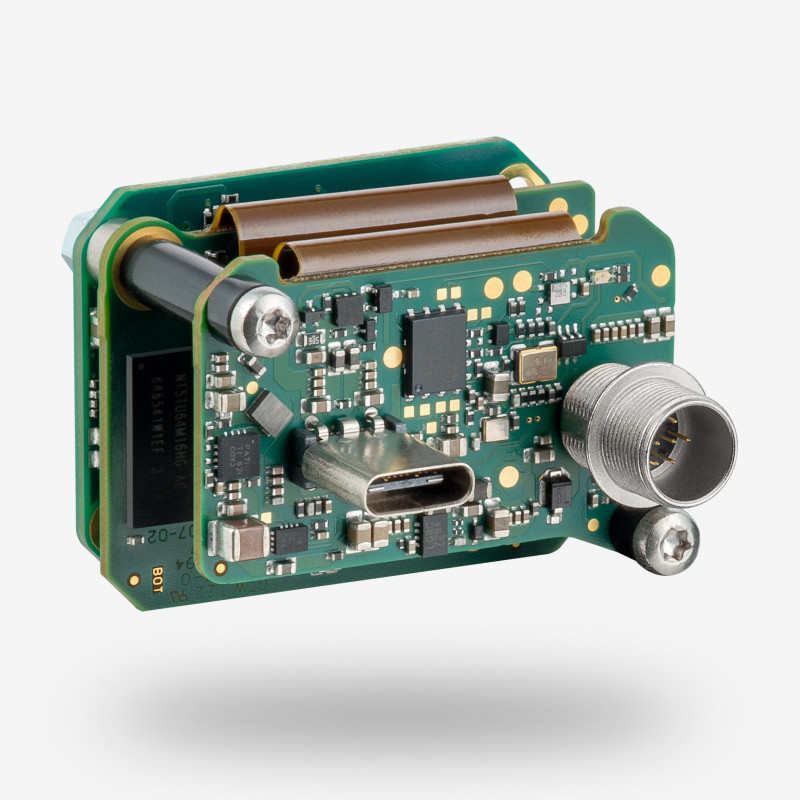

The U3-3292SE board level camera without lens holder is available in a colour or monochrome version.
This camera model is supported by IDS Vision firmware 2.0 and higher.
| Item number |
|
|---|---|
| Name | U3-3292SE |
| Camera family | SE |
| Interface | USB 3 |
| Interface-Speed | 5.00 Gbps |
| Sensor type | CMOS |
| Sensor manufacturer | Sony |
| Frame rate @ resolution max. | 33.0 fps |
| Resolution (h x v) | 4096 x 2160 |
| Optical Area | 14.131 mm x 7.452 mm |
| Shutter | Global Shutter |
| Optical class | 1" |
| Resolution | 8.85 MPix |
| Pixel size | 3.45 μm |
| IP code | No |
| Product Life Cycle | Series |
