U3-3562XLE

Camera family
XLE
Interface
USB3
Sensor type
CMOS
Frame / Line rate
73.0 fps
Shutter
Global Shutter
Optical class
1/3"
Resolution
2.30 MPix
Mono / Color
Mono / Color
Data sheet 1
U3-3562XLE-C.pdf
Data sheet 2
U3-3562XLE-M.pdf
소비자가
별도문의
uEye XLE USB 3 5.0 Gbps, 1/3", ON Semiconductor, 2.30 MPix, CMOS, 73.0 fps, AR0234, 1920 x 1200

Thanks to the versatile ON Semiconductor AR0234 1/2.6" CMOS sensor (1920 x 1200, pixel size 3 μm, 73.0 fps), the U3-3562XLE industrial camera with SuperSpeed USB 5 Gbps can be used in a wide range of applications. The exceptional shutter efficiency of the 2.30 MPix sensor enables impressively clear and sharp images of moving objects in different lighting conditions. The combination of high-quality global shutter sensor technology and cost-effective uEye XLE camera platform with support for the USB3 vision standard is an optimal, high-performance and long-term alternative for the popular uEye LE camera series with USB 2 interface. Thanks to its compact dimensions and USB Type-C connector, it can be easily integrated into any vision system.

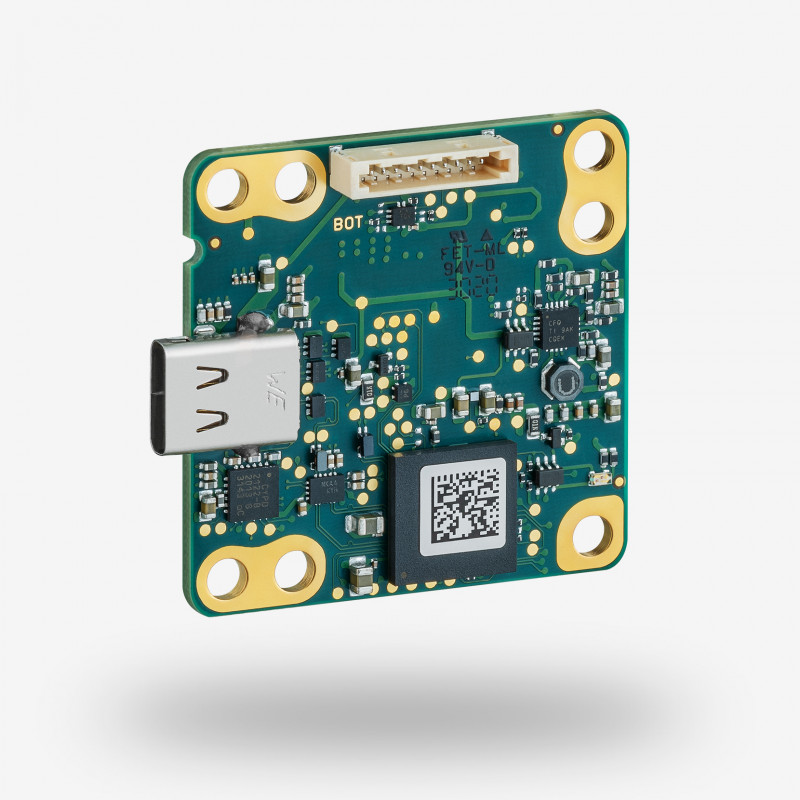

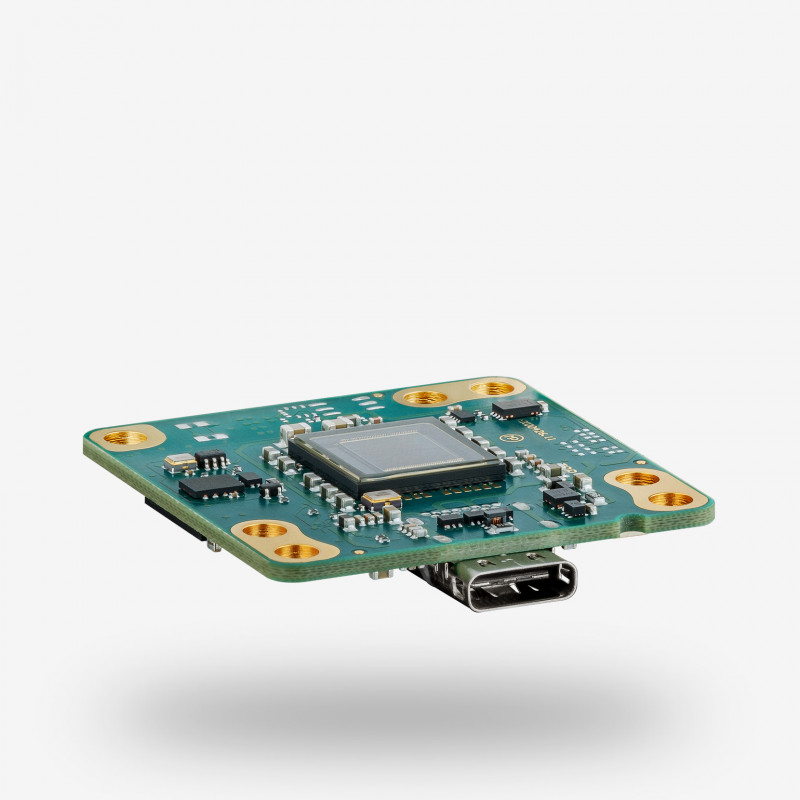

The compact USB3 camera is available either with a plastic housing with C/CS-mount or S-mount or as a board-level version with or without C/CS-mount or S-mount.


Like all other camera models of the uEye XLE family, the U3-3562XLE is GenICam-compliant and thus compatible with our state-of-the-art SDK IDS peak software.




Item number
  • U3-3562XLE-C: AB03171
  • U3-3562XLE-M: AB03170
Name U3-3562XLE
Camera family XLE
Interface USB 3
Interface-Speed 5.00 Gbps
Sensor type CMOS
Sensor manufacturer ON Semiconductor
Frame rate @ resolution max. 73.0 fps
Resolution (h x v) 1920 x 1200
Optical Area 5.760 mm x 3.600 mm
Shutter Global Shutter
Optical class 1/3"
Resolution 2.30 MPix
Pixel size 3.00 μm
IP code No
Product Life Cycle Series
