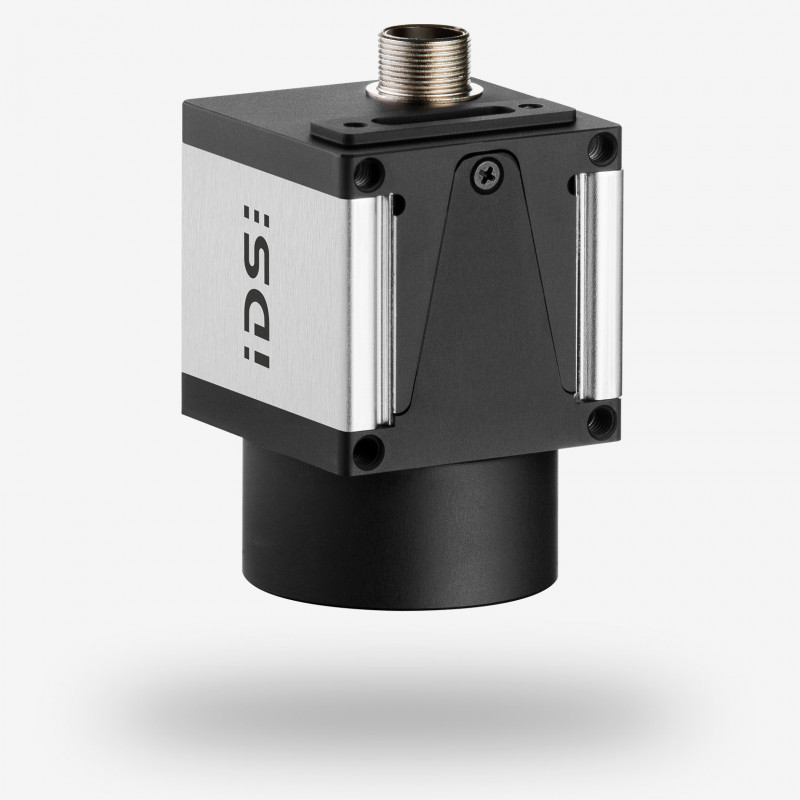

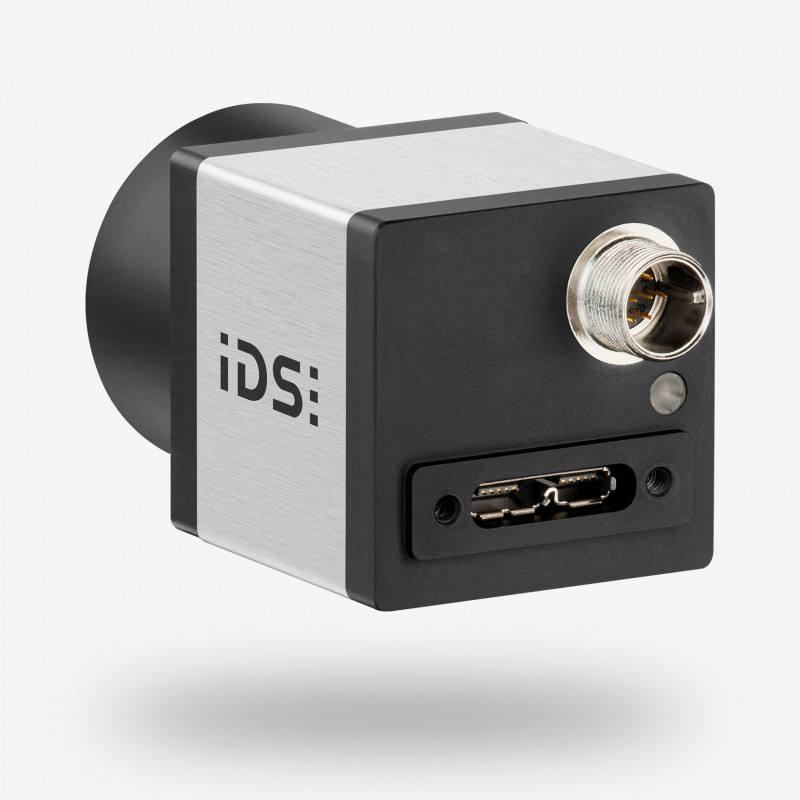

U3-3800CP
- Camera family
- CP
- Interface
- USB3
- Sensor type
- CMOS
- Frame / Line rate
- 19.5 fps
- Shutter
- Rolling Shutter
- Optical class
- 1"
- Resolution
- 20.44 MPix
- Mono / Color
- Mono / Color
- Data sheet 1
- U3-3800CP-C-HQ_Rev_2.pdf
- Data sheet 2
- U3-3800CP-M-GL_Rev_2.pdf
- 소비자가
- 별도문의
Eye CP
USB 3 5.0 Gbps, 1", Sony, 20.44 MPix, CMOS, 19.5 fps, IMX183, 5536 x 3692
Exceptionally high-resolution images with low noise levels ensure the capture of even smallest details: the light-sensitive IMX183 Rolling Shutter CMOS Sensor from Sony's STARVIS series provides outstanding image quality even under low light conditions thanks to its BSI technology ("back-side-illumination"). With a resolution of 20.44 MPix (5536 x 3692) at 2.4 μm pixels, it delivers 19.5 fps in the USB3 Vision industrial camera U3-3800CP.
The camera is therefore ideally suited for complex image analysis in applications such as surface and display inspections, medical technology or traffic applications.
The U3-3800CP is available in monochrome or colour.
This camera model is supported by IDS Vision firmware 2.1 and higher.
| Item number |
|
|---|---|
| Name | U3-3800CP |
| Camera family | CP |
| Interface | USB 3 |
| Interface-Speed | 5.00 Gbps |
| Sensor type | CMOS |
| Sensor manufacturer | Sony |
| Frame rate @ resolution max. | 19.5 fps |
| Resolution (h x v) | 5536 x 3692 |
| Optical Area | 13.286 mm x 8.861 mm |
| Shutter | Rolling Shutter |
| Optical class | 1" |
| Resolution | 20.44 MPix |
| Pixel size | 2.40 μm |
| IP code | IP30 |
| Product Life Cycle | Series |
