UI-3001SE

Camera family
SE
Interface
USB3
Sensor type
CMOS
Frame / Line rate
31.0 fps
Shutter
Global Shutter
Optical class
1.1"
Resolution
12.34 MPix
Mono / Color
Mono / Color
Data sheet 1
UI-3001SE-C-HQ.pdf
Data sheet 2
UI-3001SE-M-GL.pdf
소비자가
별도문의
uEye SE USB 3 5.0 Gbps, 1.1", Sony, 12.34 MPix, CMOS, 31.0 fps, IMX253, 4104 x 3006

What a camera! The USB 3 UI-3001SE industrial camera with the IMX253 large area, 1.1“ CMOS sensor delivers pin sharp, clear, noiseless 31.0 fps in full resolution (12.34 MPix, 4104 x 3006 px) via the USB interface. It is compliant with the most stringent of requirements in terms of resolution, speed and image quality, and demonstrates impressive technical characteristics, with regard to sensitivity for instance (quantum efficiency QE @ 533 nm = 61 %).


The UI-3001SE is used most often in classical machine vision applications, where fast moving objects must be detected, or in microscopy, where particularly high sensitivity is demanded.


Its extremely low dark noise level also makes it suitable for applications in the biosciences. Its range of possible applications is expanded still further with special features for which IDS is well known, such as the sequencer mode for changing parameters in real time, or the line scan mode which enables the industrial camera to be used as a line scan camera.

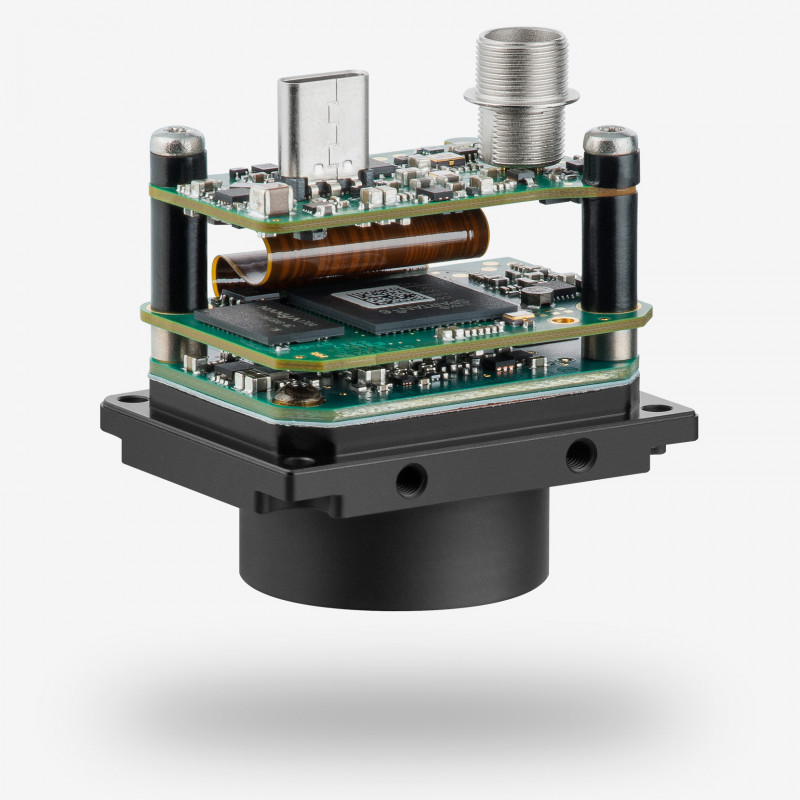

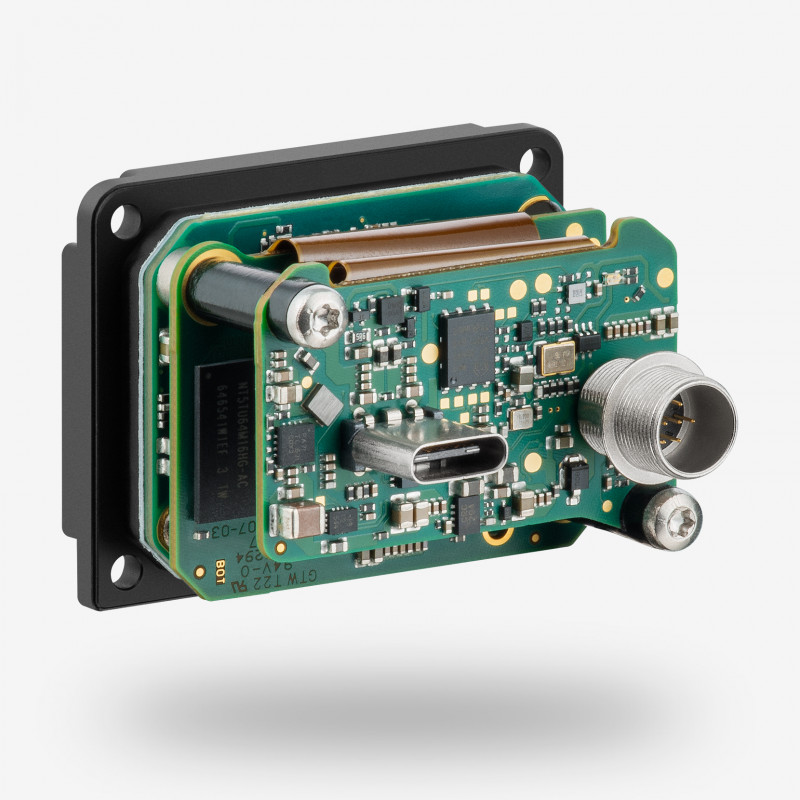

The UI-3001SE board level camera with C-mount lens holder is available in a colour or monochrome version.




Item number
  • UI-3001SE-C-HQ: AB02363
  • UI-3001SE-M-GL: AB02364
Name UI-3001SE
Camera family SE
Interface USB 3
Interface-Speed 5.00 Gbps
Sensor type CMOS
Sensor manufacturer Sony
Frame rate @ resolution max. 31.0 fps
Resolution (h x v) 4104 x 3006
Optical Area 14.158 mm x 10.370 mm
Shutter Global Shutter
Optical class 1.1"
Resolution 12.34 MPix
Pixel size 3.45 μm
IP code No
Product Life Cycle Series
