UI-3042LE VU

Camera family
LE
Interface
USB3
Sensor type
CMOS
Frame / Line rate
230 fps
Shutter
Global Shutter
Optical class
1/3"
Resolution
1.57 MPix
Mono / Color
Mono / Color
Data sheet 1
UI-3042LE-C-VU.pdf
Data sheet 2
UI-3042LE-M-VU.pdf
소비자가
별도문의
uEye LE USB 3 5.0 Gbps, 1/3", Sony, 1.57 MPix, CMOS, 230.0 fps, IMX273, 1448 x 1086

The UI-3042LE VU USB 3 camera with 1/3" Sony IMX273 global shutter CMOS sensor offers a resolution of 1.57 MPix with frame rates of up to 230 fps at full resolution. This makes it ideal for classic industrial applications such as surface inspection, but also for detailed image analysis in medical technology and traffic applications. The camera enables long exposure up to 30.0 s - for applications in the fields of mechanical engineering, machine vision, measuring technology, medical technology or microscopy.


The industrial camera model UI-3042LE VU is directed at customers with high demands on image quality, dynamic range and sensitivity.


This camera model will be supported beginning with IDS Software Suite 4.92.

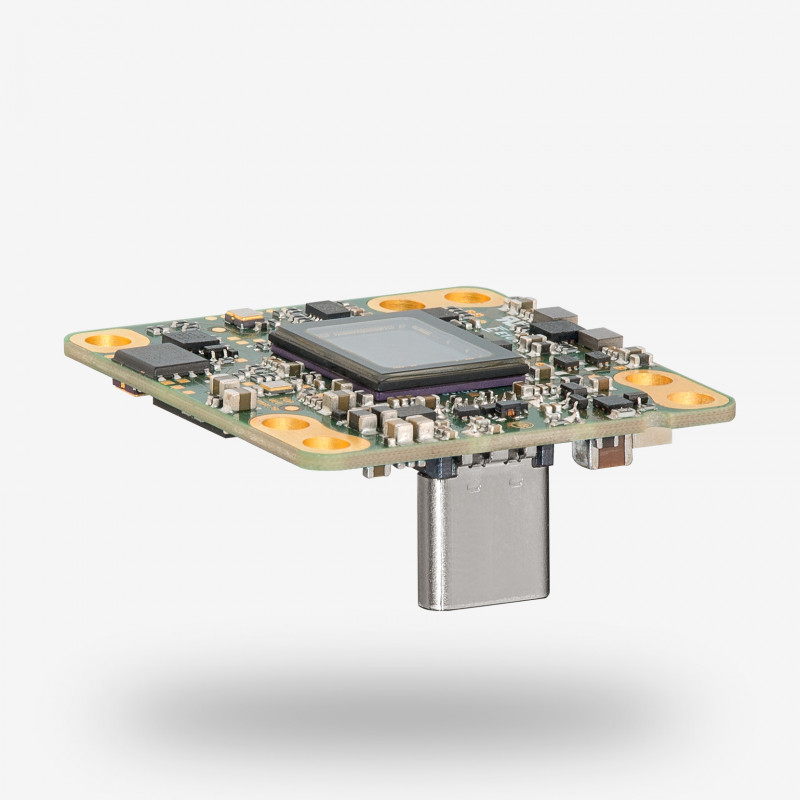

The board-level versions are available with vertical (-VU) or horizontal orientation of the USB Type-C connector.


The UI-3042LE VU USB 3 single-board camera without lens holder is available as colour or monochrome version.




Item number
  • UI-3042LE-C-VU: AB02658
  • UI-3042LE-M-VU: AB02659
Name UI-3042LE VU
Camera family LE
Interface USB 3
Interface-Speed 5.00 Gbps
Sensor type CMOS
Sensor manufacturer Sony
Frame rate @ resolution max. 230 fps
Resolution (h x v) 1448 x 1086
Optical Area 4.995 mm x 3.746 mm
Shutter Global Shutter
Optical class 1/3"
Resolution 1.57 MPix
Pixel size 3.45 μm
IP code No
Product Life Cycle Series
