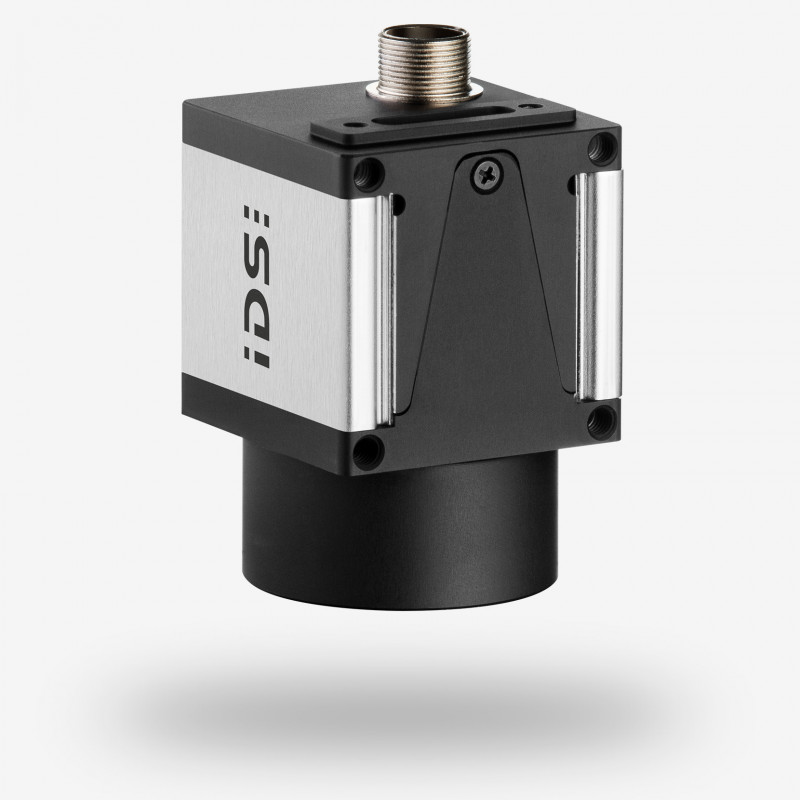

UI-3060CP Rev. 2
- Camera family
- CP
- Interface
- USB3
- Sensor type
- CMOS
- Frame / Line rate
- 166 fps
- Shutter
- Global Shutter
- Optical class
- 1/1.2"
- Resolution
- 2.35 MPix
- Mono / Color
- Mono / Color
- Data sheet 1
- UI-3060CP-C-HQ_Rev_2.pdf
- Data sheet 2
- UI-3060CP-M-GL_Rev_2_4.pdf
- 소비자가
- 별도문의
uEye CP
USB 3 5.0 Gbps, 1/1.2", Sony, 2.35 MPix, CMOS, 166.0 fps, IMX174, 1936 x 1216
The UI-3060CP with Sony's 2.3 MP sensor IMX174 (1936 x 1216 px) sets a new standard in terms of light sensitivity, dynamic range and color reproduction. The USB 3 industrial camera provides excellent image quality with extraordinarily low-noise performance - at frame rates up to 166 fps (full resolution).
The sensor is perfect for applications demanding excellent image quality even in low-light conditions as well as in industrial automation, quality assurance and robotics.
For more information about USB 3 uEye CP Rev. 2, click here.
| Item number |
|
|---|---|
| Name | UI-3060CP Rev. 2 |
| Camera family | CP |
| Interface | USB 3 |
| Interface-Speed | 5.00 Gbps |
| Sensor type | CMOS |
| Sensor manufacturer | Sony |
| Frame rate @ resolution max. | 166 fps |
| Resolution (h x v) | 1936 x 1216 |
| Optical Area | 11.345 mm x 7.126 mm |
| Shutter | Global Shutter |
| Optical class | 1/1.2" |
| Resolution | 2.35 MPix |
| Pixel size | 5.86 μm |
| IP code | IP30 |
| Product Life Cycle | Series |
