UI-3070SE
- Camera family
- SE
- Interface
- USB3
- Sensor type
- CMOS
- Frame / Line rate
- 123 fps
- Shutter
- Global Shutter
- Optical class
- 1/1.8"
- Resolution
- 3.17 MPix
- Mono / Color
- Mono / Color
- Data sheet 1
- UI-3070SE-C-HQ.pdf
- Data sheet 2
- UI-3070SE-M-GL.pdf
- 소비자가
- 별도문의
uEye SE
USB 3 5.0 Gbps, 1/1.8", Sony, 3.17 MPix, CMOS, 123.0 fps, IMX252, 2056 x 1542

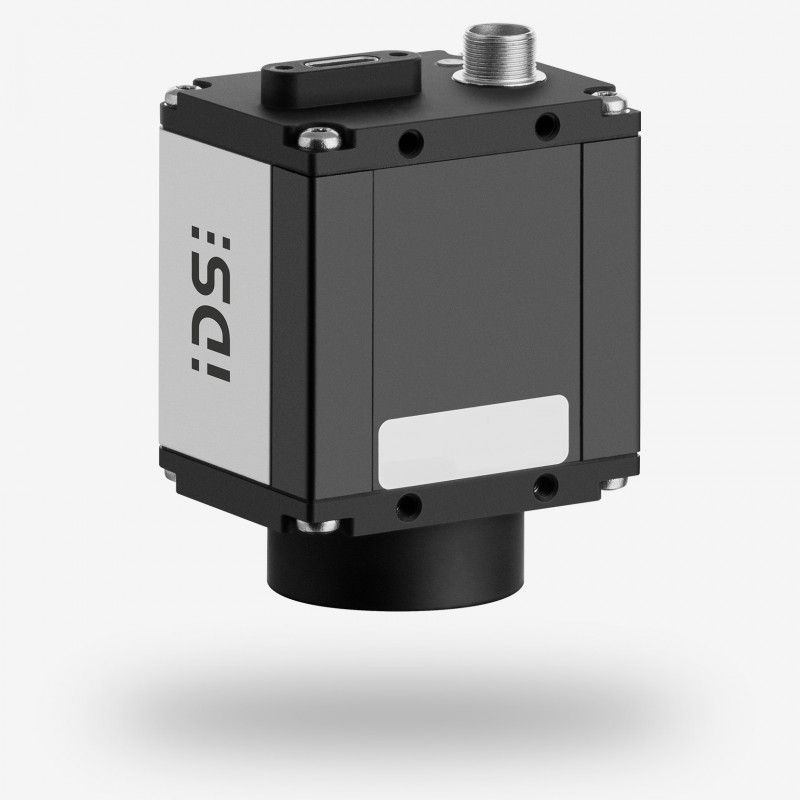

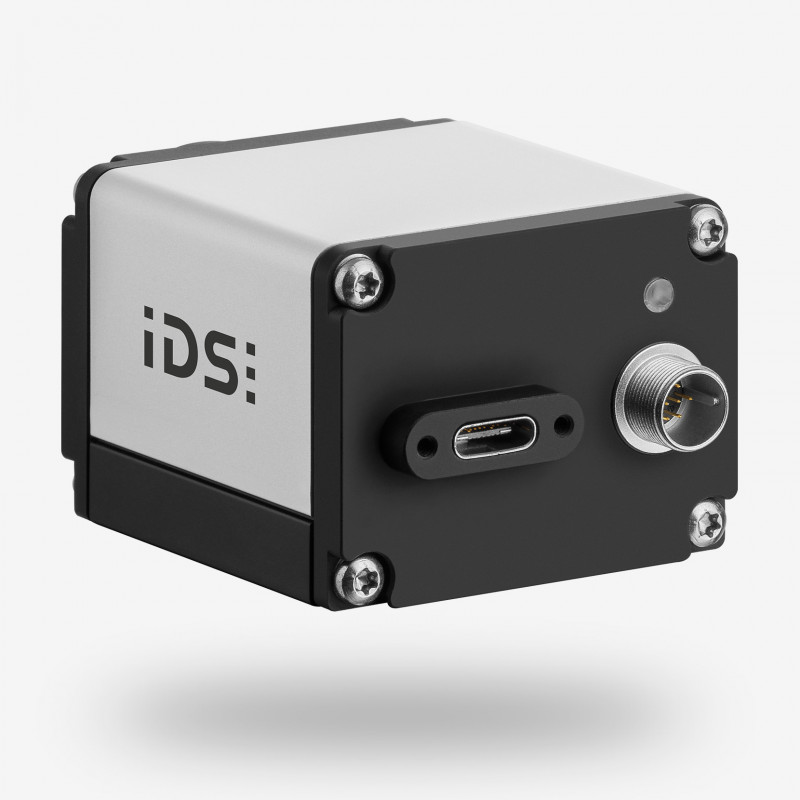

The USB 3 industrial camera UI-3070SE with 1/1.8" Sony IMX252 global shutter CMOS sensor provides a resolution of 3.17 MPix (2056 x 1542 px). At full resolution, the USB 3 camera speeds up to 123 fps. It allows multi AOI and long exposure up to 30.0 s, for applications in the fields of mechanical engineering, machine vision, metrology, medical engineering, or microscopy.
The UI-3070SE industrial camera model aims at customers with high demands on image quality, dynamic range and sensitivity.
The UI-3070SE is available in both monochrome and colour versions.
This camera model will be supported beginning with IDS Software Suite 4.92.
| Item number |
|
|---|---|
| Name | UI-3070SE |
| Camera family | SE |
| Interface | USB 3 |
| Interface-Speed | 5.00 Gbps |
| Sensor type | CMOS |
| Sensor manufacturer | Sony |
| Frame rate @ resolution max. | 123 fps |
| Resolution (h x v) | 2056 x 1542 |
| Optical Area | 7.093 mm x 5.320 mm |
| Shutter | Global Shutter |
| Optical class | 1/1.8" |
| Resolution | 3.17 MPix |
| Pixel size | 3.45 μm |
| IP code | IP30 |
| Product Life Cycle | Series |
