UI-3081SE
- Camera family
- SE
- Interface
- USB3
- Sensor type
- CMOS
- Frame / Line rate
- 77.0 fps
- Shutter
- Global Shutter
- Optical class
- 2/3"
- Resolution
- 5.04 MPix
- Mono / Color
- Mono / Color
- Data sheet 1
- UI-3081SE-C-HQ.pdf
- Data sheet 2
- UI-3081SE-M-GL.pdf
- 소비자가
- 별도문의
uEye SE
USB 3 5.0 Gbps, 2/3", Sony, 5.04 MPix, CMOS, 77.0 fps, IMX250, 2456 x 2054
The USB 3 UI-3081SE industrial camera with the IMX250 CMOS sensor from Sony sets new standards with regard to light sensitivity, dynamic range and colour reproduction. The global shutter sensor excels with a high resolution of 5 MP, which makes it perfect for low-light applications such as are often found in microscopy. The USB 3 industrial camera ensures excellent image quality and extremely low noise ? at a frame rate of 86 fps.
Software functions implemented by IDS: Line scan mode, sensor total gain, multi-AOI, sequencer mode, long time exposure, up to 30 seconds.

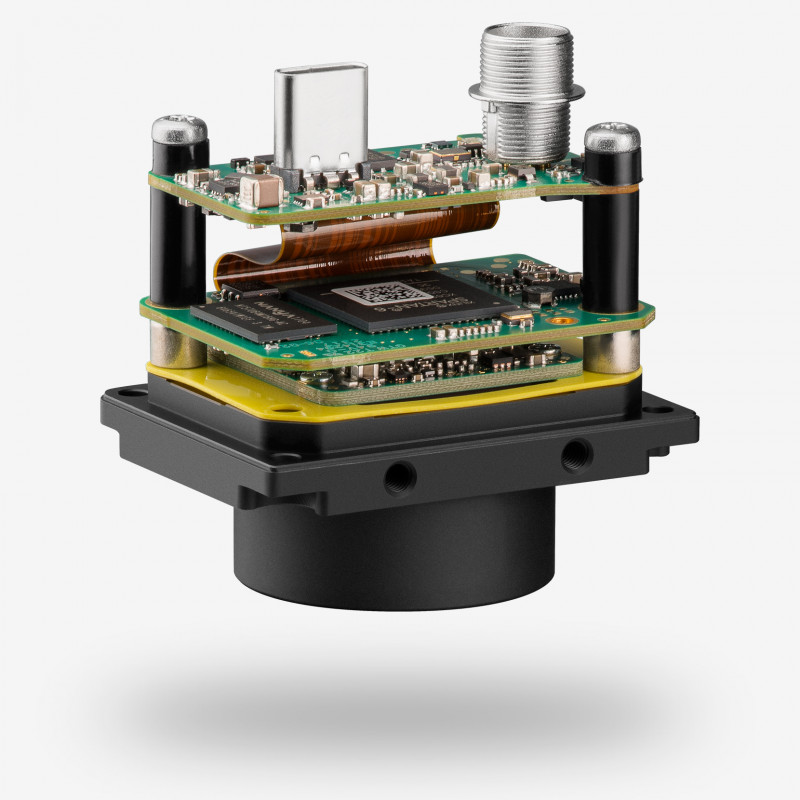

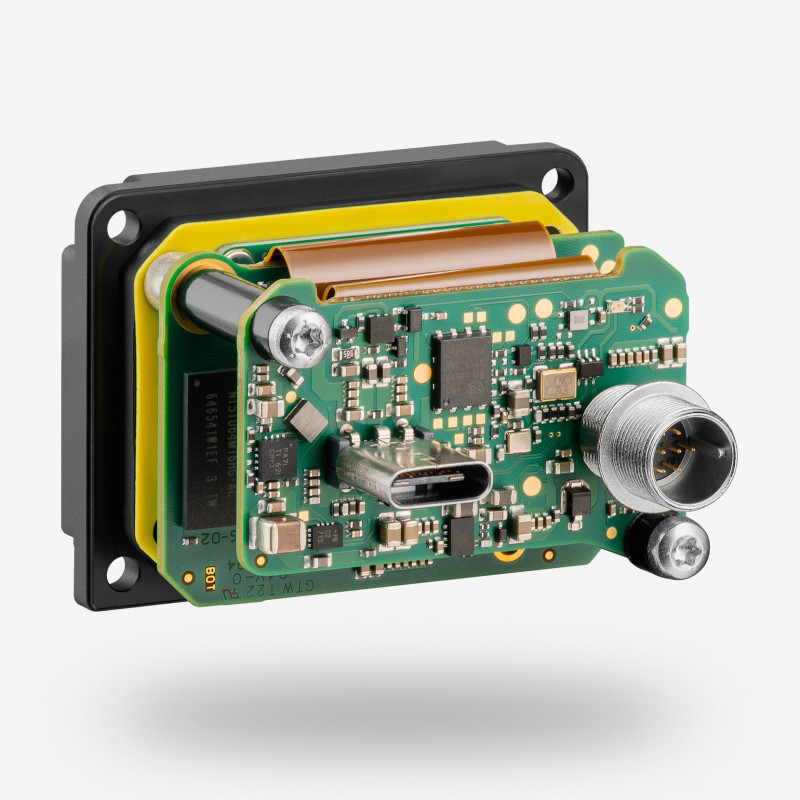

The UI-3081SE board level camera with C-mount lens holder is available in a colour or monochrome version.
| Item number |
|
|---|---|
| Name | UI-3081SE |
| Camera family | SE |
| Interface | USB 3 |
| Interface-Speed | 5.00 Gbps |
| Sensor type | CMOS |
| Sensor manufacturer | Sony |
| Frame rate @ resolution max. | 77.0 fps |
| Resolution (h x v) | 2456 x 2054 |
| Optical Area | 8.473 mm x 7.086 mm |
| Shutter | Global Shutter |
| Optical class | 2/3" |
| Resolution | 5.04 MPix |
| Pixel size | 3.45 μm |
| IP code | No |
| Product Life Cycle | Series |
