UI-3130LE
- Camera family
- LE
- Interface
- USB3
- Sensor type
- CMOS
- Frame / Line rate
- 135 fps
- Shutter
- Global Shutter
- Optical class
- 1/3.6"
- Resolution
- 0.49 MPix
- Mono / Color
- Mono / Color
- Data sheet 1
- UI-3130LE-C-HQ.pdf
- Data sheet 2
- UI-3130LE-M-GL.pdf
- 소비자가
- 별도문의
uEye LE
USB 3 5.0 Gbps, 1/3.6", ON Semiconductor, 0.49 MPix, CMOS, 135.0 fps, PYTHON 480, 808 x 608

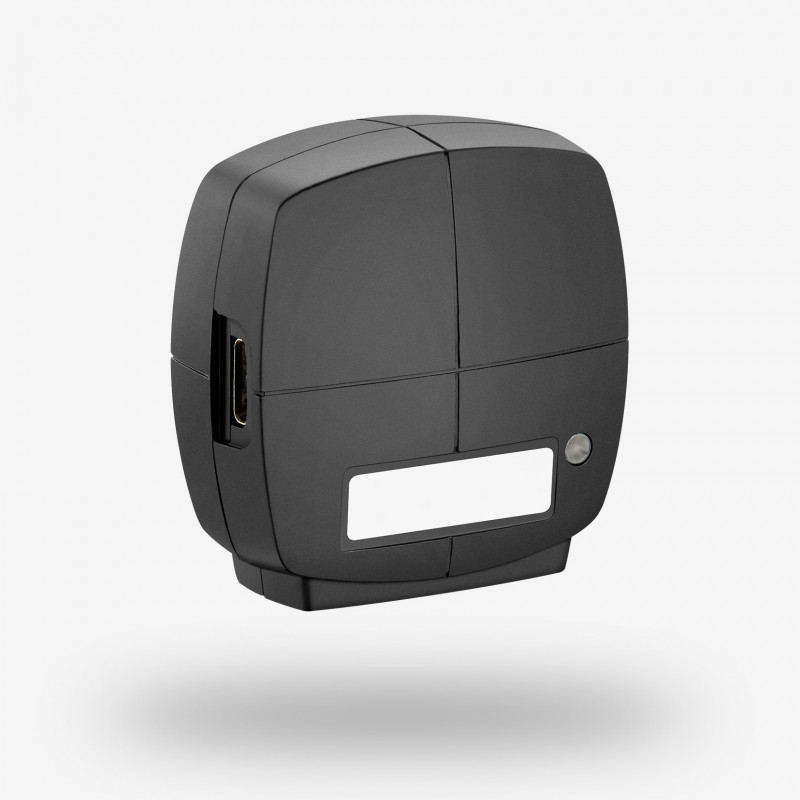

The UI-3130LE USB 3 camera with 1/3.6" PYTHON 480 global shutter CMOS sensor offers a resolution of 0.49 MPix (808 x 608 px) with frame rates of up to 135 fps at full resolution. Using the 2x subsampling feature, the USB 3 camera reaches up to 420 fps. This model is the cost-efficient entry to machine vision applications and for low-cost embedded systems e.g. inspection and quality control applications.

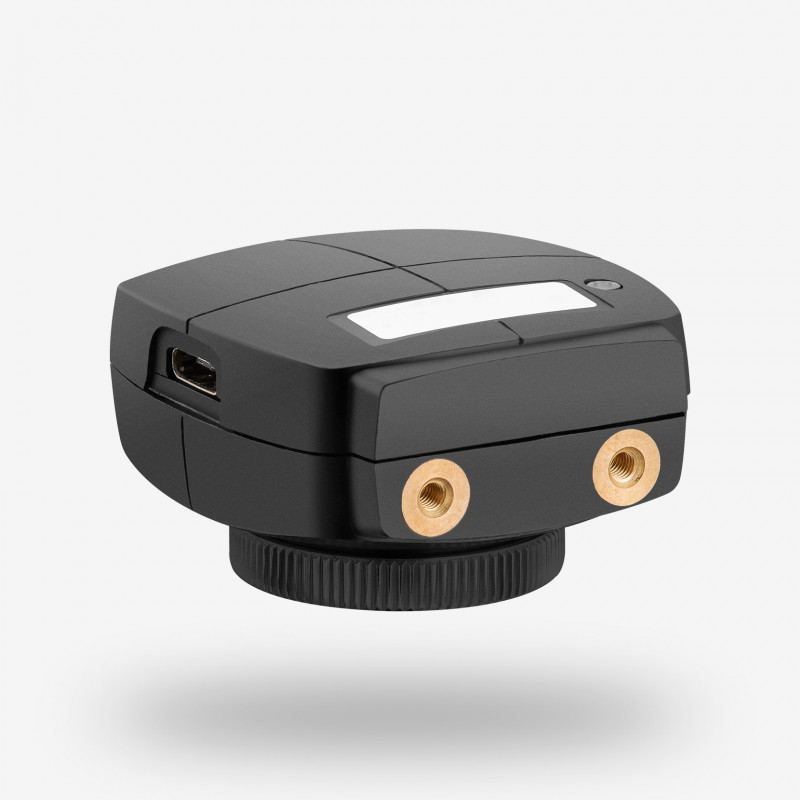

The UI-3130LE USB 3 camera with CS-/C-mount lens holder is available as colour or monochrome version.
Extension ring CS-mount to C-mount
The CS-mount version comes with an extension ring which enlarges the flange back distance by 5 mm. This allows use of C-mount lenses with the camera.
| Item number |
|
|---|---|
| Name | UI-3130LE |
| Camera family | LE |
| Interface | USB 3 |
| Interface-Speed | 5.00 Gbps |
| Sensor type | CMOS |
| Sensor manufacturer | ON Semiconductor |
| Frame rate @ resolution max. | 135 fps |
| Resolution (h x v) | 808 x 608 |
| Optical Area | 3.875 mm x 2.915 mm |
| Shutter | Global Shutter |
| Optical class | 1/3.6" |
| Resolution | 0.49 MPix |
| Pixel size | 4.80 μm |
| IP code | IP30 |
| Product Life Cycle | Series |
