U3-3891SE
- Camera family
- SE
- Interface
- USB3
- Sensor type
- CMOS
- Frame / Line rate
- 33.0 fps
- Shutter
- Rolling Shutter
- Optical class
- 1/1.8"
- Resolution
- 12.00 MPix
- Mono / Color
- Mono / Color
- Data sheet 1
- U3-3891SE-C-HQ.pdf
- Data sheet 2
- U3-3891SE-M-GL.pdf
- 소비자가
- 별도문의
The U3-3891SE is equipped with the rolling shutter CMOS sensor IMX226. The 12.00 MPix sensor (4000 x 3000 px, pixel size 1.85 μm) from the Sony STARVIS series excels with extraordinary light sensitivity and low noise levels. At full resolution, it accelerates to a frame rate of 33.0 fps.
Thanks to the STARVIS series BSI ("back-side-illumination") technology, the sensor is ideally suited for tasks that require a perfect result even in low light conditions.
It also shows its strengths in application fields such as traffic monitoring, microscopy and quality control. The 1/1.7" sensor size also allows to choose from a wide range of cost-effective lenses.

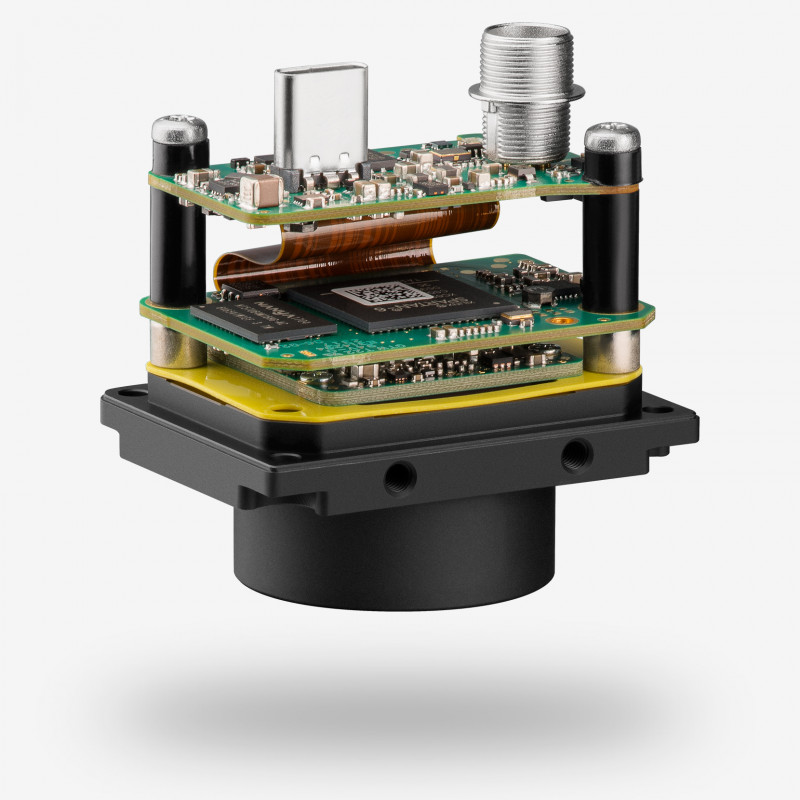

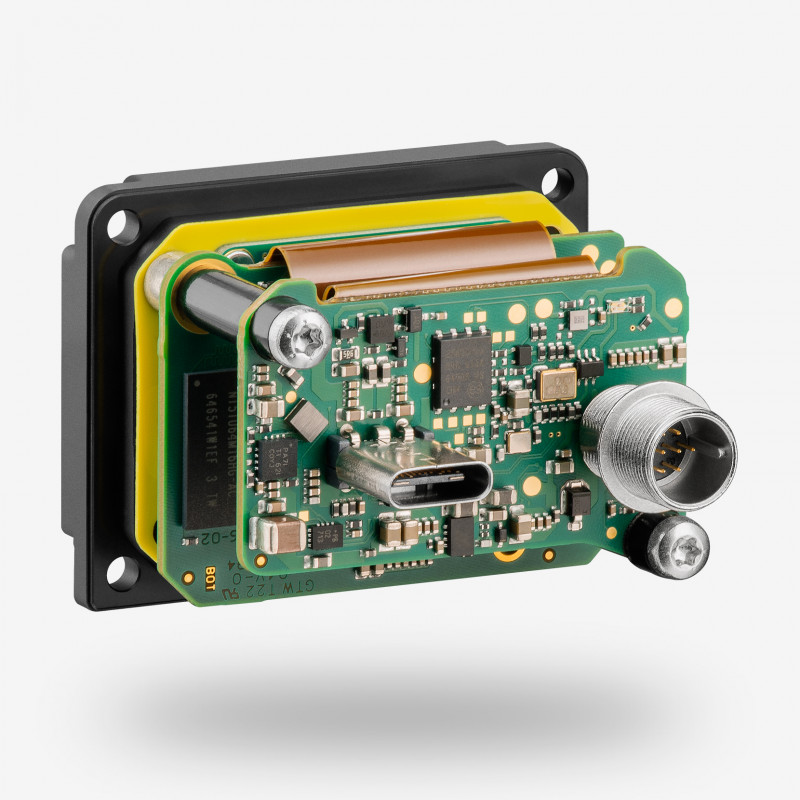

The U3-3891SE board level camera with C-mount lens holder is available in a colour or monochrome version.
This USB3 Vision camera is supported by IDS Vision Firmware 2.0 or higher.
| Item number |
|
|---|---|
| Name | U3-3891SE |
| Camera family | SE |
| Interface | USB 3 |
| Interface-Speed | 5.00 Gbps |
| Sensor type | CMOS |
| Sensor manufacturer | Sony |
| Frame rate @ resolution max. | 33.0 fps |
| Resolution (h x v) | 4000 x 3000 |
| Optical Area | 7.400 mm x 5.550 mm |
| Shutter | Rolling Shutter |
| Optical class | 1/1.8" |
| Resolution | 12.00 MPix |
| Pixel size | 1.85 μm |
| IP code | No |
| Product Life Cycle | Series |
