UI-3132LE VU

Camera family
LE
Interface
USB3
Sensor type
CMOS
Frame / Line rate
135 fps
Shutter
Global Shutter
Optical class
1/3.6"
Resolution
0.49 MPix
Mono / Color
Mono / Color
Data sheet 1
UI-3132LE-C-VU.pdf
Data sheet 2
UI-3132LE-M-VU.pdf
소비자가
별도문의
uEye LE USB 3 5.0 Gbps, 1/3.6", ON Semiconductor, 0.49 MPix, CMOS, 135.0 fps, PYTHON 480, 808 x 608

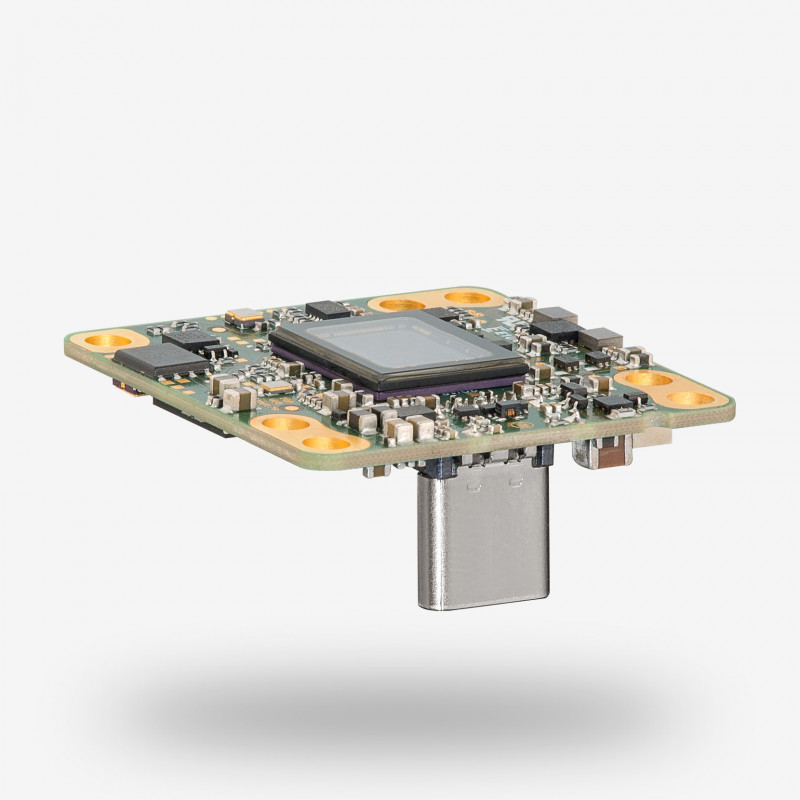

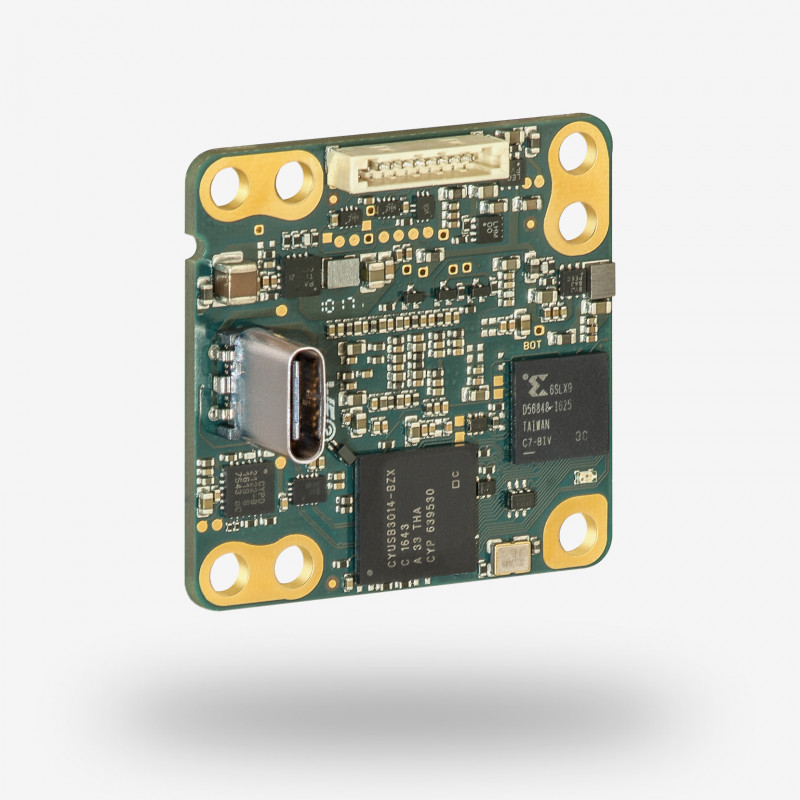

The UI-3132LE VU USB 3 camera with 1/3.6" PYTHON 480 global shutter CMOS sensor offers a resolution of 0.49 MPix (808 x 608 px) with frame rates of up to 135 fps at full resolution. Using the 2x subsampling feature, the USB 3 camera reaches up to 420 fps. This model is the cost-efficient entry to machine vision applications and for low-cost embedded systems e.g. inspection and quality control applications.


The board-level versions are available with vertical (-VU) or horizontal orientation of the USB Type-C connector.


The UI-3132LE VU USB 3 single-board camera without lens holder is available as colour or monochrome version.




Item number
  • UI-3132LE-C-VU: AB02197
  • UI-3132LE-M-VU: AB02198
Name UI-3132LE VU
Camera family LE
Interface USB 3
Interface-Speed 5.00 Gbps
Sensor type CMOS
Sensor manufacturer ON Semiconductor
Frame rate @ resolution max. 135 fps
Resolution (h x v) 808 x 608
Optical Area 3.875 mm x 2.915 mm
Shutter Global Shutter
Optical class 1/3.6"
Resolution 0.49 MPix
Pixel size 4.80 μm
IP code No
Product Life Cycle Series
