UI-3140CP Rev. 2
- Camera family
- CP
- Interface
- USB3
- Sensor type
- CMOS
- Frame / Line rate
- 169 fps
- Shutter
- Global Shutter
- Optical class
- 1/2"
- Resolution
- 1.31 MPix
- Mono / Color
- Mono / Color
- Data sheet 1
- UI-3140CP-M-GL_Rev_2.pdf
- Data sheet 2
- UI-3140CP-M-GL_Rev_2_1.pdf
- 소비자가
- 별도문의

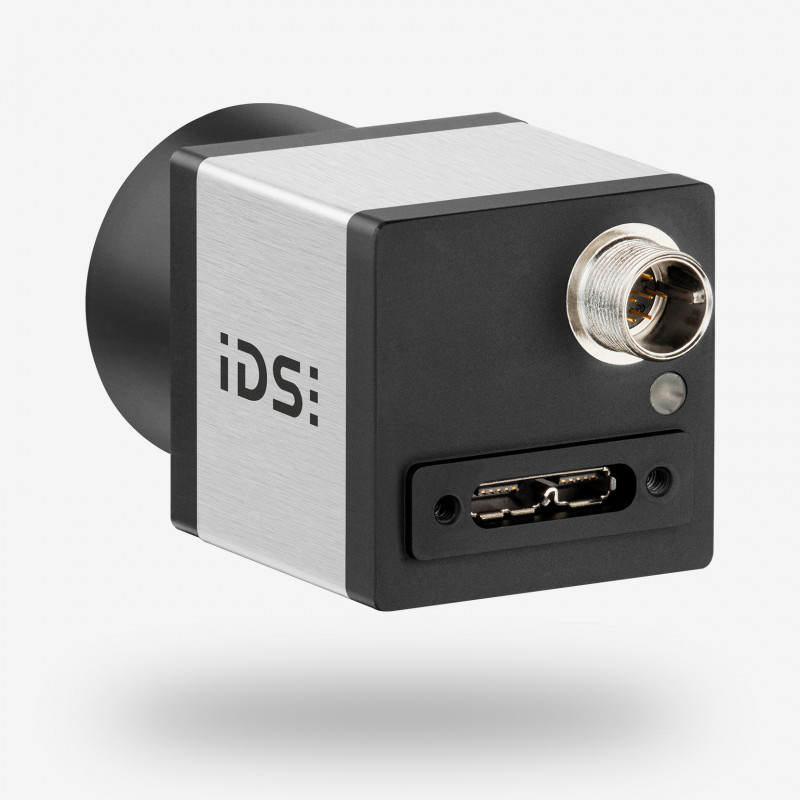

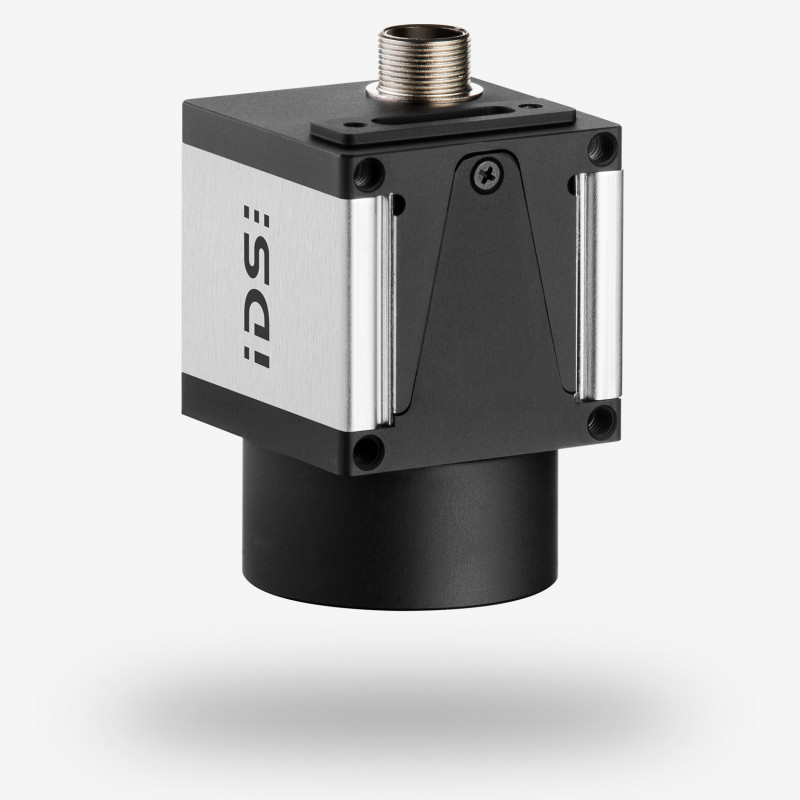

uEye CP
USB 3 5.0 Gbps, 1/2", ON Semiconductor, 1.31 MPix, CMOS, 169.0 fps, PYTHON 1300, 1280 x 1024
The UI-3140CP with 1/2" global shutter CMOS sensor PYTHON 1300 by ON Semiconductor provides maximum flexibility for your application. The sensor delivers even images with 169 fps at full resolution (1280 x 1024 px) in freerun or trigger mode, for standard machine vision and inspection applications among others.
With a unique AOI feature (horizontal and vertical read-out), the industrial camera reaches more than 1000 fps. Available as monochrome or colour version.
This camera model will be supported beginning with IDS Software Suite 4.70.
| Item number |
|
|---|---|
| Name | UI-3140CP Rev. 2 |
| Camera family | CP |
| Interface | USB 3 |
| Interface-Speed | 5.00 Gbps |
| Sensor type | CMOS |
| Sensor manufacturer | ON Semiconductor |
| Frame rate @ resolution max. | 169 fps |
| Resolution (h x v) | 1280 x 1024 |
| Optical Area | 6.144 mm x 4.915 mm |
| Shutter | Global Shutter |
| Optical class | 1/2" |
| Resolution | 1.31 MPix |
| Pixel size | 4.80 μm |
| IP code | IP30 |
| Product Life Cycle | Series |
