UI-3160CP Rev. 2.1
- Camera family
- CP
- Interface
- USB3
- Sensor type
- CMOS
- Frame / Line rate
- 169 fps
- Shutter
- Global Shutter
- Optical class
- 2/3"
- Resolution
- 2.30 MPix
- Mono / Color
- Mono / Color
- Data sheet 1
- UI-3160CP-C-HQ_Rev_2_1.pdf
- Data sheet 2
- UI-3160CP-M-GL_Rev_2_1.pdf
- 소비자가
- 별도문의

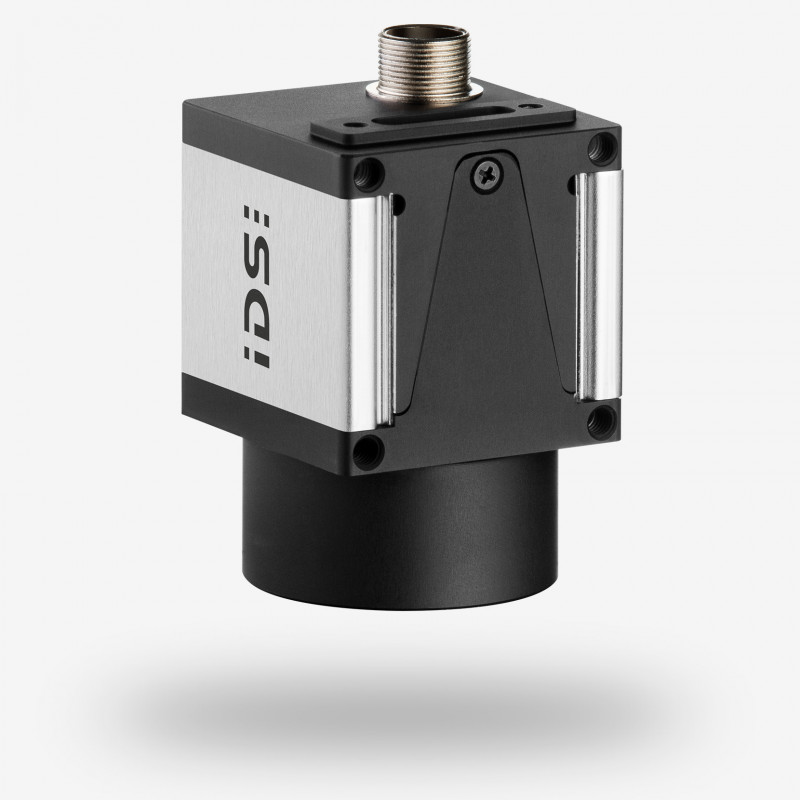

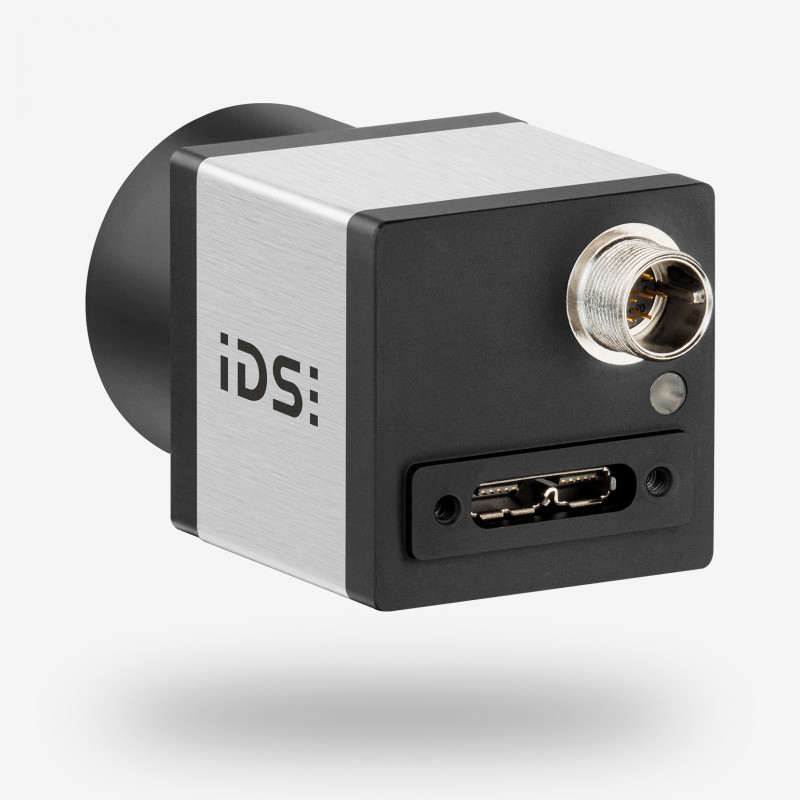

The USB 3 industrial camera UI-3160CP Rev. 2.1 with 2/3" global shutter CMOS sensor PYTHON 2000 from ON Semiconductor provides full resolution of 2.3 MP (1920 x 1200 pixels) with up to 165 fps, and the common resolution of 1600 x 1200 with up to 200 fps. Full HD (1920 x 1080 pixels) is possible with more than 190 fps. Using the unique AOI feature (horizontal and vertical read-out), the industrial camera reaches more than 1000 fps. The CMOS camera is suitable especially for applications in the fields of both medical and industry as well as for visualisation tasks.
Available as monochrome or colour version.
Due to the high sensor performance this camera model is not supported in the USB 2.0 mode.
This camera model will be supported beginning with IDS Software Suite 4.90.3.
| Item number |
|
|---|---|
| Name | UI-3160CP Rev. 2.1 |
| Camera family | CP |
| Interface | USB 3 |
| Interface-Speed | 5.00 Gbps |
| Sensor type | CMOS |
| Sensor manufacturer | ON Semiconductor |
| Frame rate @ resolution max. | 169 fps |
| Resolution (h x v) | 1920 x 1200 |
| Optical Area | 9.216 mm x 5.760 mm |
| Shutter | Global Shutter |
| Optical class | 2/3" |
| Resolution | 2.30 MPix |
| Pixel size | 4.80 μm |
| IP code | IP30 |
| Product Life Cycle | Series |
