UI-3201SE
- Camera family
- SE
- Interface
- USB3
- Sensor type
- CMOS
- Frame / Line rate
- 24.0 fps
- Shutter
- Global Shutter
- Optical class
- 1.1"
- Resolution
- 12.34 MPix
- Mono / Color
- Mono / Color
- Data sheet 1
- UI-3201SE-C-HQ.pdf
- Data sheet 2
- UI-3201SE-M-GL.pdf
- 소비자가
- 별도문의
uEye SE
USB 3 5.0 Gbps, 1.1", Sony, 12.34 MPix, CMOS, 24.0 fps, IMX304, 4104 x 3006
The USB 3 UI-3201SE industrial camera is the cost-optimized, frame-rate reduced variant of the UI-3001SE, and with the integrated Sony IMX304 with its massive 12.3 megapixels performs every bit as well in terms of image quality: high resolution, excellent light sensitivity and outstanding dynamic range. Its technical performance characteristics are unequaled.
The most popular application fields for the UI-3201SE are traffic surveillance and medical or measuring technology.

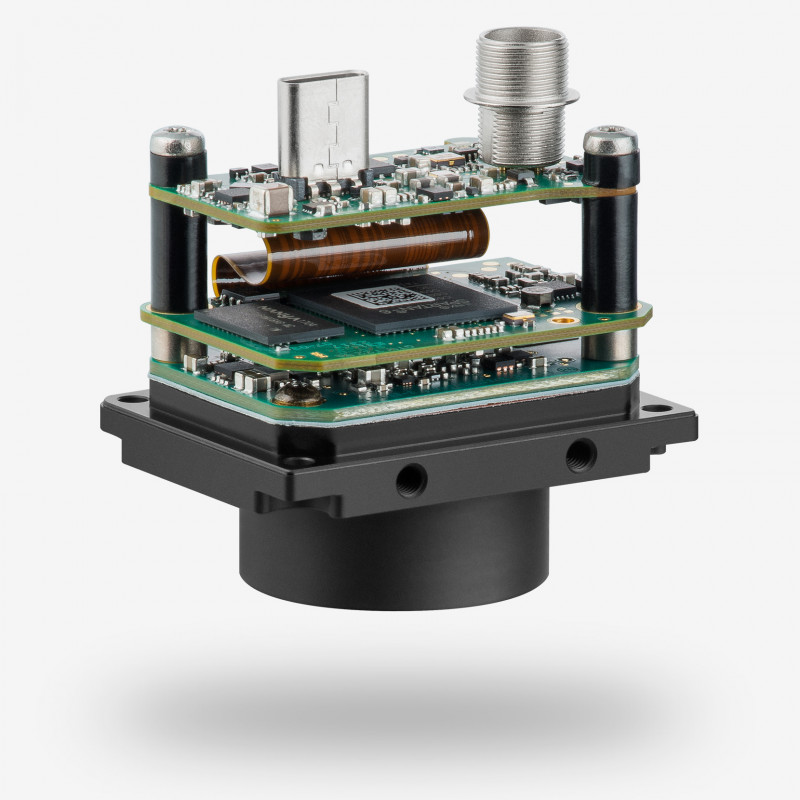

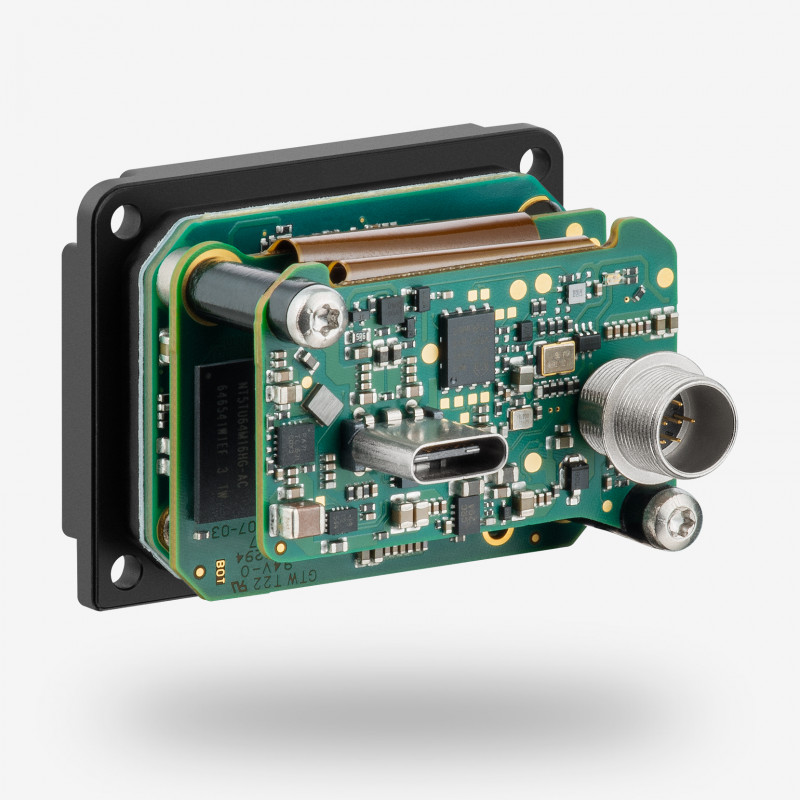

The UI-3201SE board level camera with C-mount lens holder is available in a colour or monochrome version.
| Item number |
|
|---|---|
| Name | UI-3201SE |
| Camera family | SE |
| Interface | USB 3 |
| Interface-Speed | 5.00 Gbps |
| Sensor type | CMOS |
| Sensor manufacturer | Sony |
| Frame rate @ resolution max. | 24.0 fps |
| Resolution (h x v) | 4104 x 3006 |
| Optical Area | 14.158 mm x 10.370 mm |
| Shutter | Global Shutter |
| Optical class | 1.1" |
| Resolution | 12.34 MPix |
| Pixel size | 3.45 μm |
| IP code | No |
| Product Life Cycle | Series |
