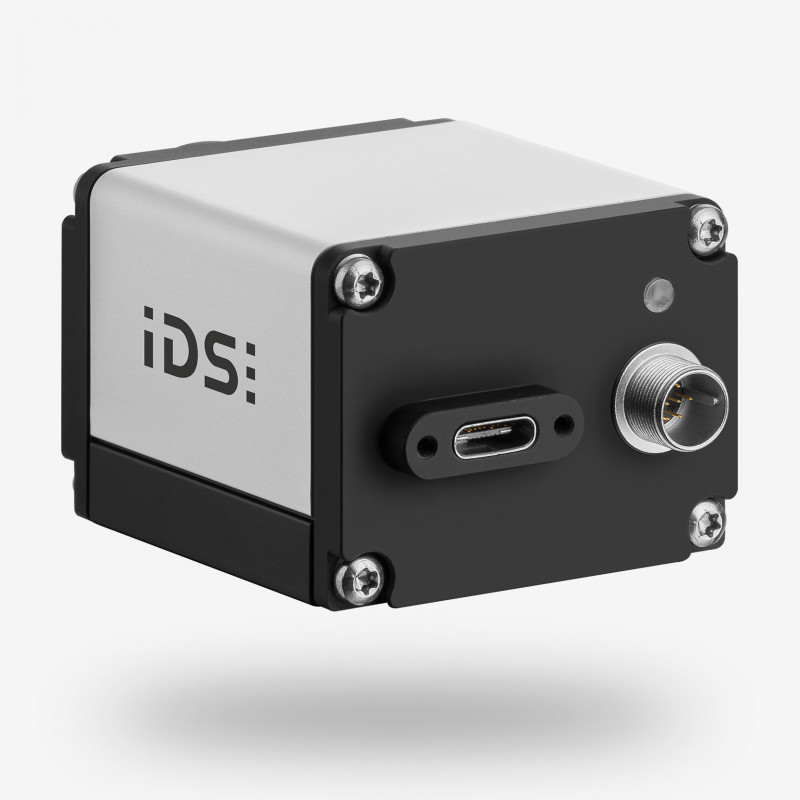

UI-3260SE
- Camera family
- SE
- Interface
- USB3
- Sensor type
- CMOS
- Frame / Line rate
- 47.0 fps
- Shutter
- Global Shutter
- Optical class
- 1/1.2"
- Resolution
- 2.35 MPix
- Mono / Color
- Mono / Color
- Data sheet 1
- UI-3260SE-C-HQ.pdf
- Data sheet 2
- UI-3260SE-M-GL.pdf
- 소비자가
- 별도문의
uEye SE
USB 3 5.0 Gbps, 1/1.2", Sony, 2.35 MPix, CMOS, 47.0 fps, IMX249, 1936 x 1216
The USB 3 industrial camera UI-3260SE provides excellent results even in low light conditions thanks to its 2.35 MPix Global-Shutter CMOS sensor from Sony. Like its "big brother" IMX174, the integrated IMX249 sensor (1936 x 1216 px) stands out especially in the areas of light sensitivity, dynamic range and colour reproduction.
With a frame rate of 47.0 fps (full resolution), it ensures extremely low-noise images and outstanding image quality even under difficult conditions, which benefits applications in traffic monitoring or quality assurance, for example.
| Item number |
|
|---|---|
| Name | UI-3260SE |
| Camera family | SE |
| Interface | USB 3 |
| Interface-Speed | 5.00 Gbps |
| Sensor type | CMOS |
| Sensor manufacturer | Sony |
| Frame rate @ resolution max. | 47.0 fps |
| Resolution (h x v) | 1936 x 1216 |
| Optical Area | 11.345 mm x 7.126 mm |
| Shutter | Global Shutter |
| Optical class | 1/1.2" |
| Resolution | 2.35 MPix |
| Pixel size | 5.86 μm |
| IP code | IP30 |
| Product Life Cycle | Series |
