UI-3262SE
- Camera family
- SE
- Interface
- USB3
- Sensor type
- CMOS
- Frame / Line rate
- 47.0 fps
- Shutter
- Global Shutter
- Optical class
- 1/1.2"
- Resolution
- 2.35 MPix
- Mono / Color
- Mono / Color
- Data sheet 1
- UI-3262SE-C.pdf
- Data sheet 2
- UI-3262SE-M.pdf
- 소비자가
- 별도문의
uEye SE
USB 3 5.0 Gbps, 1/1.2", Sony, 2.35 MPix, CMOS, 47.0 fps, IMX249, 1936 x 1216
The UI-3262SE USB 3 industrial camera with the IMX249 2.35 MPix CMOS sensor from Sony offers the standard image formats 4:3 and 16:9. At full resolution of 1936 x 1216 pixels, it delivers 47.0 fps. With its exceptionally high dynamic range and outstanding signal/noise ratio, it ensures high-contrast and practically noise-free images, which are impressive even in weak or fluctuating lighting conditions.
Special functions such as long exposures (30 seconds) and a line scan mode implemented by IDS extend the range of applications in the factory automation environment.

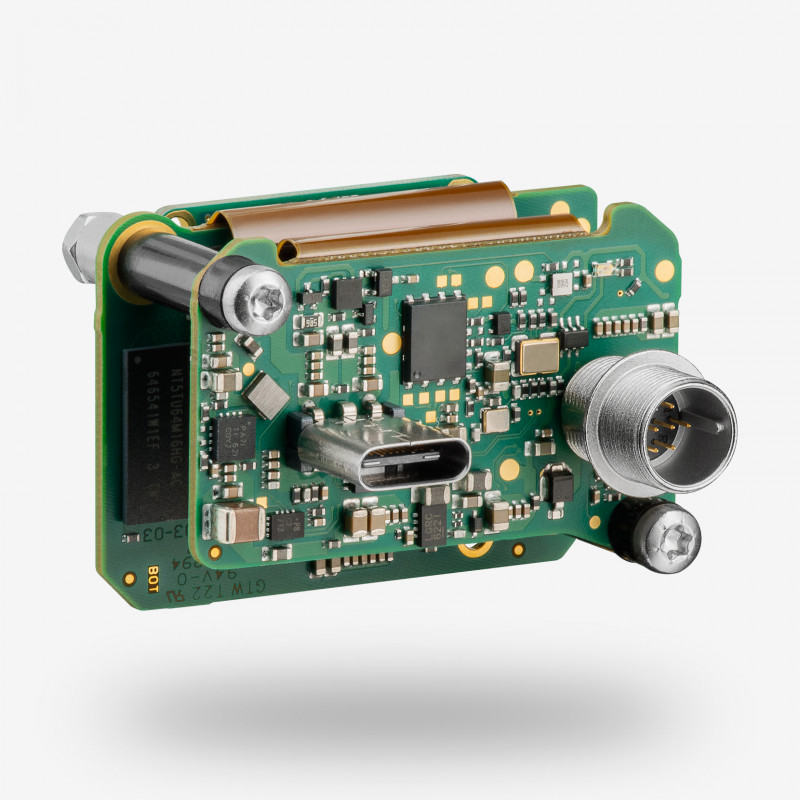

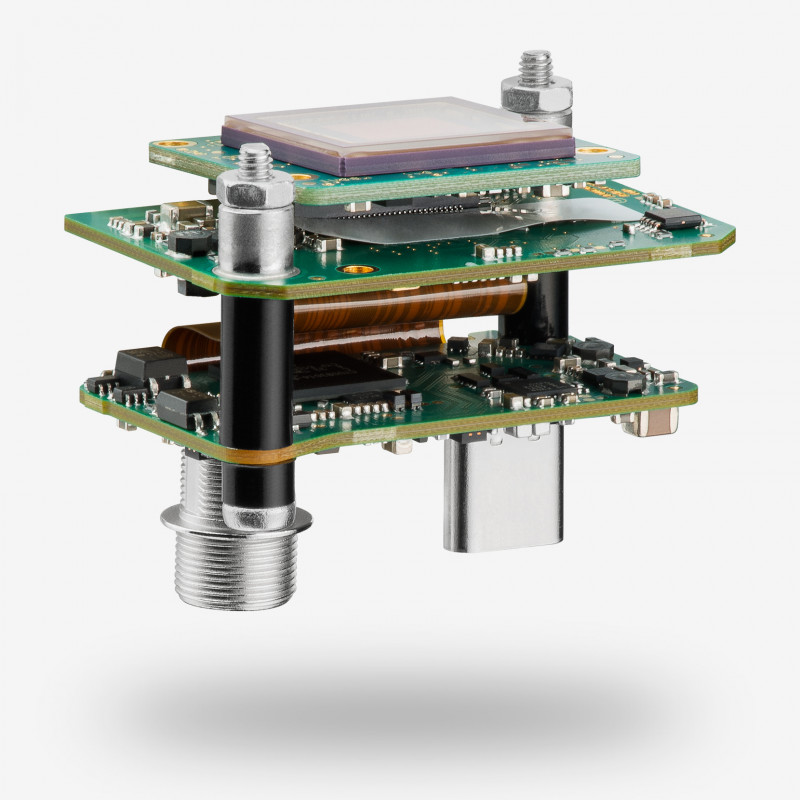

The UI-3262SE board level camera without lens holder is available in a colour or monochrome version.
| Item number |
|
|---|---|
| Name | UI-3262SE |
| Camera family | SE |
| Interface | USB 3 |
| Interface-Speed | 5.00 Gbps |
| Sensor type | CMOS |
| Sensor manufacturer | Sony |
| Frame rate @ resolution max. | 47.0 fps |
| Resolution (h x v) | 1936 x 1216 |
| Optical Area | 11.345 mm x 7.126 mm |
| Shutter | Global Shutter |
| Optical class | 1/1.2" |
| Resolution | 2.35 MPix |
| Pixel size | 5.86 μm |
| IP code | No |
| Product Life Cycle | Series |
