UI-3270CP Rev. 2

Camera family
CP
Interface
USB3
Sensor type
CMOS
Frame / Line rate
57.0 fps
Shutter
Global Shutter
Optical class
1/1.8"
Resolution
3.17 MPix
Mono / Color
Mono / Color
Data sheet 1
UI-3270CP-C-HQ_Rev_2.pdf
Data sheet 2
UI-3270CP-M-GL_Rev_2.pdf
소비자가
별도문의
uEye CP USB 3 5.0 Gbps, 1/1.8", Sony, 3.17 MPix, CMOS, 57.0 fps, IMX265, 2056 x 1542

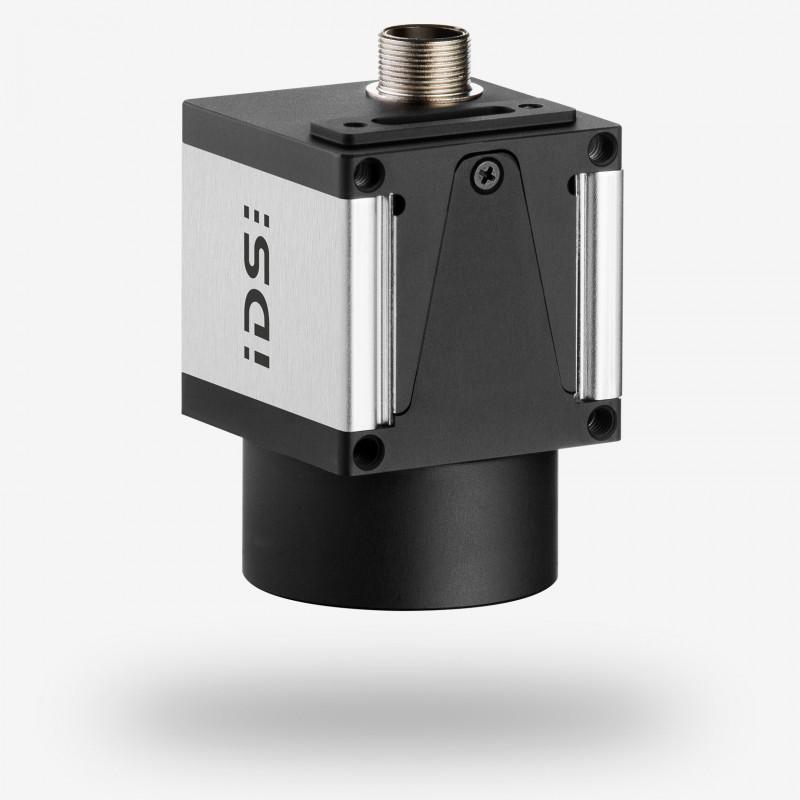

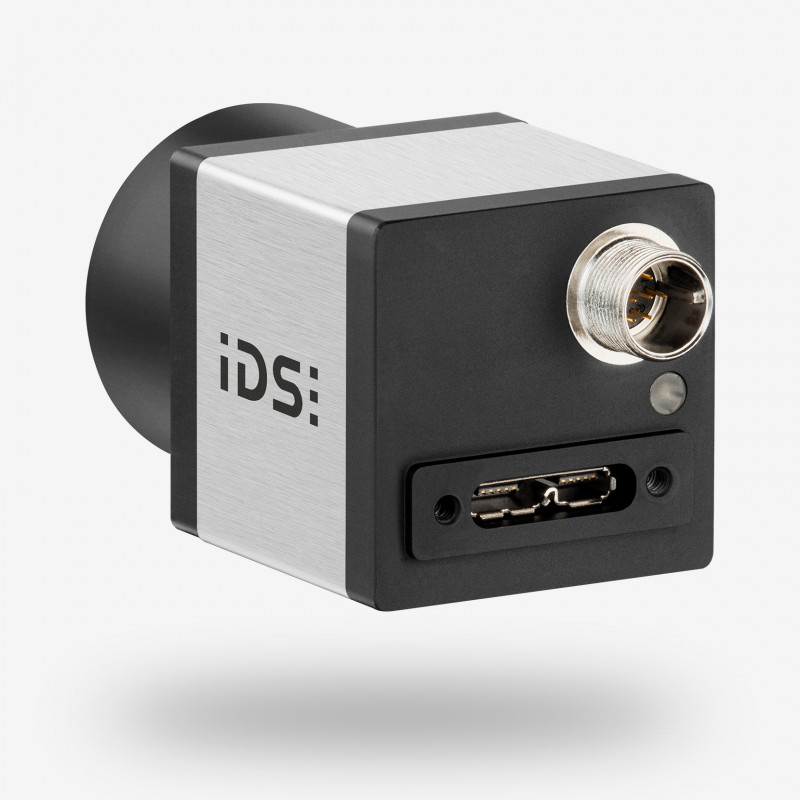

The USB 3 industrial camera UI-3270CP with 1/1.8" Sony IMX265 global shutter CMOS sensor provides a resolution of 3.2 MP (2056 x 1542 px). At full resolution, the USB 3 camera delivers up to 57 fps (Full HD with up to 80 fps). As the Sony IMX265 claims to be the best CMOS imaging sensor of the 3 MP pixel class, the industrial camera aims at customers with high demands on image quality, dynamic range and sensitivity.


The UI-3270CP camera model is suitable especially for cost-effective applications in the fields of mechanical engineering, machine vision, metrology, medical engineering, or microscopy.




Item number
  • UI-3270CP-C-HQ Rev.2: AB00962
  • UI-3270CP-M-GL Rev.2: AB00961
Name UI-3270CP Rev. 2
Camera family CP
Interface USB 3
Interface-Speed 5.00 Gbps
Sensor type CMOS
Sensor manufacturer Sony
Frame rate @ resolution max. 57.0 fps
Resolution (h x v) 2056 x 1542
Optical Area 7.093 mm x 5.320 mm
Shutter Global Shutter
Optical class 1/1.8"
Resolution 3.17 MPix
Pixel size 3.45 μm
IP code IP30
Product Life Cycle Series
