UI-3270SE
- Camera family
- SE
- Interface
- USB3
- Sensor type
- CMOS
- Frame / Line rate
- 57.0 fps
- Shutter
- Global Shutter
- Optical class
- 1/1.8"
- Resolution
- 3.17 MPix
- Mono / Color
- Mono / Color
- Data sheet 1
- UI-3270SE-M-GL.pdf
- Data sheet 2
- UI-3270SE-C-HQ.pdf
- 소비자가
- 별도문의

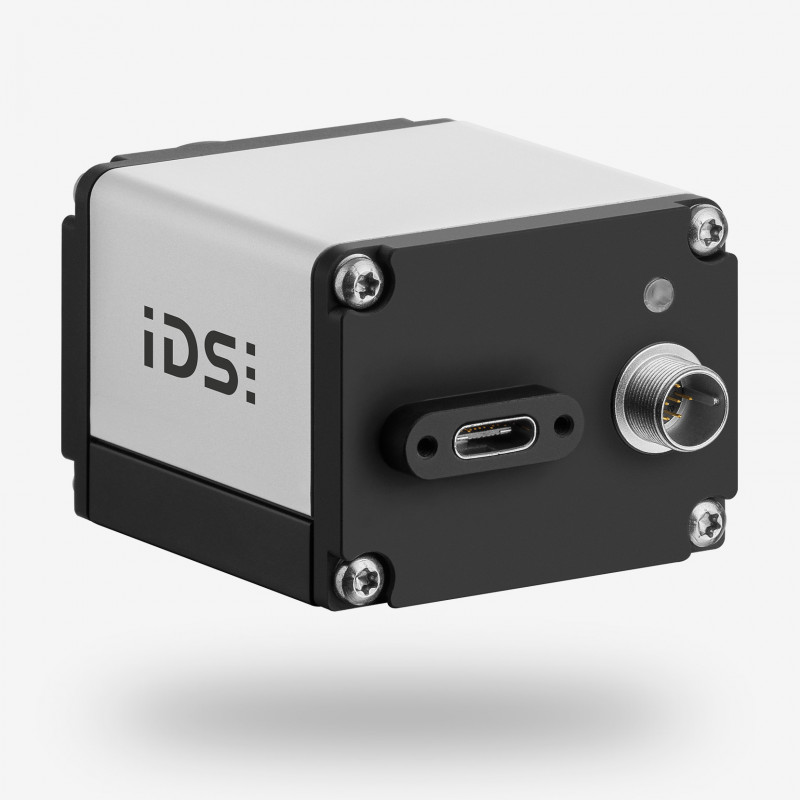

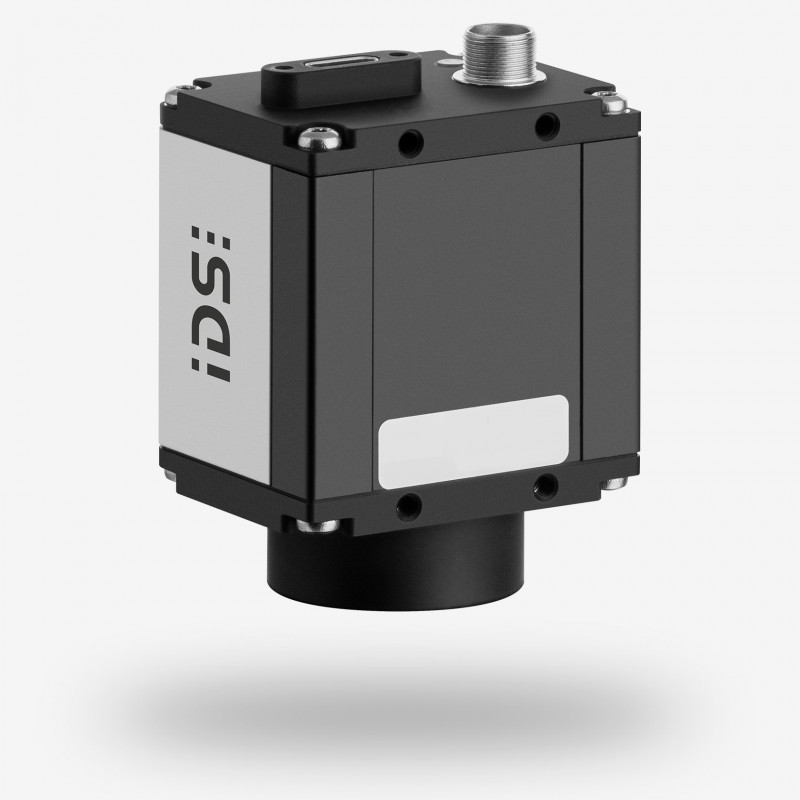

Arguably the best CMOS image sensor in the 3 MP class. The UI-3270SE USB 3 industrial camera with the 1/1.8" global shutter IMX265 sensor from Sony offers a resolution of 3.17 MPix (2056 x 1542 pixels) at a frame rate of 57.0 fps via the USB 3 (5 Gbps) interface. In terms of dynamic range, sensitivity, and linearity, the camera is unrivaled and is enthusiastically received by industrial customers in mechanical engineering, measuring technology, and medical technology.
The IDS Software Suite includes a number of special features, such as 30 second long exposure, sequencer mode, as well as line scan mode for using the area scan camera as a cost-effective alternative to a line scan camera.
The UI-3270SE is available in both monochrome and colour variants.
This camera model will be supported beginning with IDS Software Suite 4.91.
| Item number |
|
|---|---|
| Name | UI-3270SE |
| Camera family | SE |
| Interface | USB 3 |
| Interface-Speed | 5.00 Gbps |
| Sensor type | CMOS |
| Sensor manufacturer | Sony |
| Frame rate @ resolution max. | 57.0 fps |
| Resolution (h x v) | 2056 x 1542 |
| Optical Area | 7.093 mm x 5.320 mm |
| Shutter | Global Shutter |
| Optical class | 1/1.8" |
| Resolution | 3.17 MPix |
| Pixel size | 3.45 μm |
| IP code | IP30 |
| Product Life Cycle | Series |
