UI-3274LE VU
- Camera family
- LE
- Interface
- USB3
- Sensor type
- CMOS
- Frame / Line rate
- 57.0 fps
- Shutter
- Global Shutter
- Optical class
- 1/1.8"
- Resolution
- 3.17 MPix
- Mono / Color
- Mono / Color
- Data sheet 1
- UI-3274LE-C-HQ-VU.pdf
- Data sheet 2
- UI-3274LE-M-GL-VU.pdf
- 소비자가
- 별도문의
The UI-3274LE VU USB 3 camera with Sony IMX265 area scan sensor represents a USB 3 camera with the best imaging sensor of the 3 MP pixel class. The 1/1.8" size of the global shutter CMOS sensor fits to a great range of lenses. The industrial camera delivers frame rates of up to 57 fps at full resolution (3.2 MP: 2056 x 1542 px), and 80 fps at Full HD resolution. Thus, the USB 3 camera is perfectly suitable for visualization tasks in machine vision applications or medical engineering.

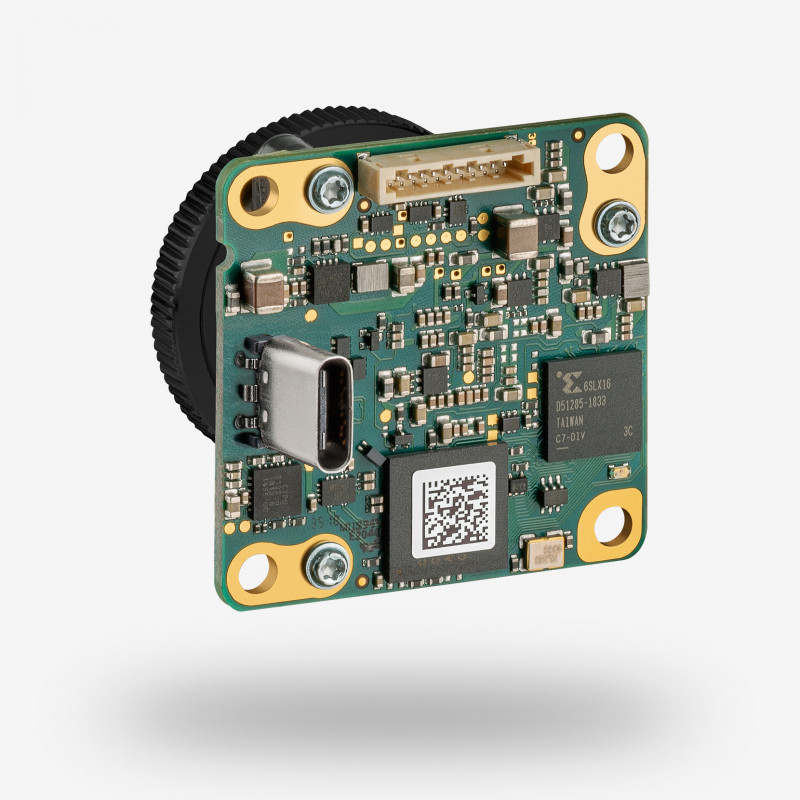

The board-level versions are available with vertical (-VU) or horizontal orientation of the USB Type-C connector.

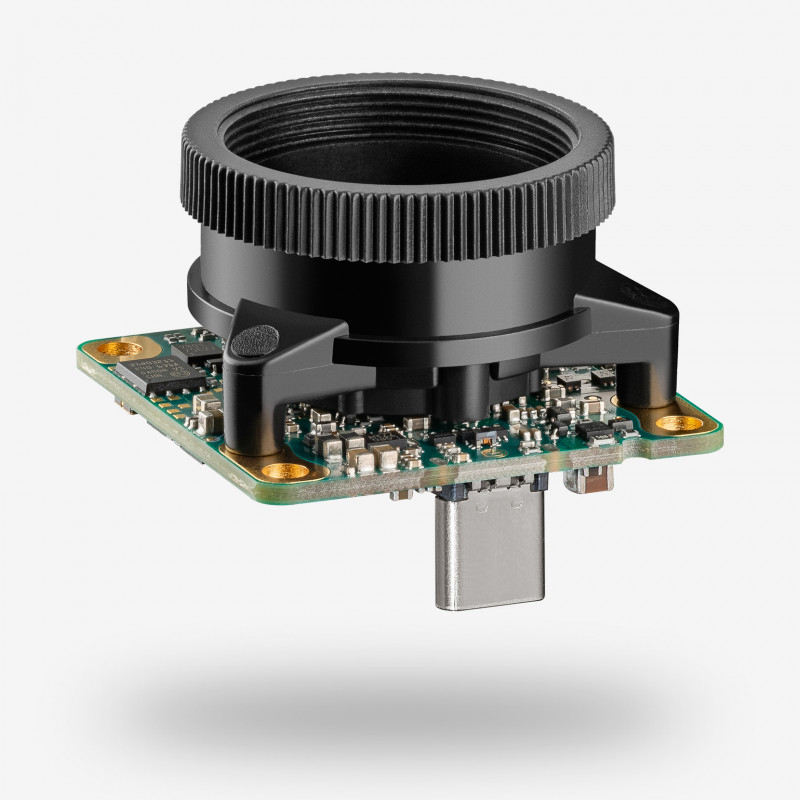

The UI-3274LE VU USB 3 single-board camera with CS-mount lens holder is available as colour or monochrome version.
Extension ring CS-mount to C-mount
The CS-mount version comes with an extension ring which enlarges the flange back distance by 5 mm. This allows use of C-mount lenses with the camera.
| Item number |
|
|---|---|
| Name | UI-3274LE VU |
| Camera family | LE |
| Interface | USB 3 |
| Interface-Speed | 5.00 Gbps |
| Sensor type | CMOS |
| Sensor manufacturer | Sony |
| Frame rate @ resolution max. | 57.0 fps |
| Resolution (h x v) | 2056 x 1542 |
| Optical Area | 7.093 mm x 5.320 mm |
| Shutter | Global Shutter |
| Optical class | 1/1.8" |
| Resolution | 3.17 MPix |
| Pixel size | 3.45 μm |
| IP code | No |
| Product Life Cycle | Series |
